Name: Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 16G-23-11 16G-23-31
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

8G Process Loop Controller

Precision Process Loop Controller

Process Loop Controller

Brand Name:

Dwyer

Certification:

Model Number:

16G-23-11 16G-23-31

Request A Quote

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

Product Details

Inputs:

Thermocouple, RTD, DC Voltages Or DC Current

Display:

Process Value: 4 Digit, 0.47" H (12mm), Orange LCD; Set Point Value: 4 Digit, 0.47" H (12mm), Green LCD

Accuracy:

± 1.8°F Plus ±0.3% Of Span (±1°C Plus ±0.3% Of Span) At 77°F (25°C) After 20 Minutes Warm Up

Power Requirements:

100 To 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%

Power Consumption:

5 VA Max

Operating Temperature:

32 To 122°F

Highlight:

8G Process Loop Controller

Precision Process Loop Controller

Process Loop Controller

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS

Get Best Price

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

Get Best Price

Dwyer MultiFunction LCT216 Digital Timer / Tachometer / Counter

Get Best Price

86--17719566736

Contact Now

Product Description

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

Attribute	Value
Inputs	Thermocouple, RTD, DC Voltages Or DC Current
Display	Process Value: 4 Digit, 0.47" H (12mm), Orange LCD; Set Point Value: 4 Digit, 0.47" H (12mm), Green LCD
Accuracy	± 1.8°F Plus ±0.3% Of Span (±1°C Plus ±0.3% Of Span) At 77°F (25°C) After 20 Minutes Warm Up
Power Requirements	100 To 240 VAC -20/+8%, 50/60 Hz; Optional 24 VDC, ±10%
Power Consumption	5 VA Max
Operating Temperature	32 To 122°F

Product Introduction

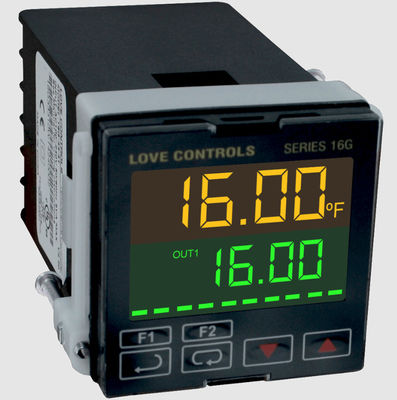

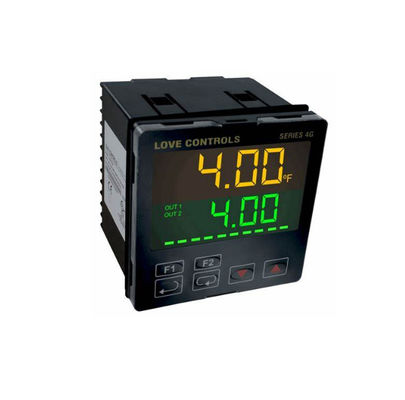

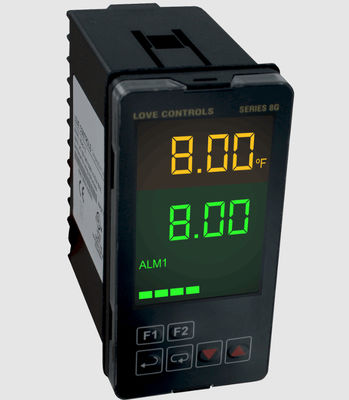

The Dwyer PrecisionPro Series 16G, 8G, and 4G Loop Controllers offer advanced monitoring and control capabilities for temperature and process conditions across industrial and commercial applications. Designed with flexibility and precision in mind, these controllers empower users to optimize operations with dual-loop control, multiple output methods, and seamless system integration.

Equipped with two independent control outputs, the PrecisionPro controllers support a range of control strategies, including on/off, auto-tune or self-tune PID, fuzzy logic, and manual control. This versatility makes them ideal for applications requiring precise temperature regulation or complex process management. The controllers also feature constant, sloped, program (ramp/soak), or remote set-point control options, enabling customized control profiles to meet specific operational needs.

All models come standard with RS-485 communication using the Modbus® protocol, facilitating easy configuration via a PC or integration with PLCs and data control systems. This connectivity streamlines system setup and enables centralized monitoring and control. Additionally, the controllers include two primary control outputs and two secondary/alarm relay outputs, providing comprehensive control and safety features. Optional hardware modules expand functionality further, supporting remote set-point control, input retransmission, or event input capabilities.

Whether used in manufacturing processes, HVAC systems, or research environments, the Dwyer PrecisionPro Series delivers reliable, precise control with intuitive operation and robust communication capabilities.

Product Features

Multi-Method Control: Choose from on/off, PID, fuzzy logic, or manual control methods to match application requirements, ensuring optimal performance across diverse scenarios.
Flexible Set-Point Control: Implement constant, sloped, program (ramp/soak), or remote set-point control to create tailored temperature or process profiles.
Comprehensive Outputs: Standard configuration includes two primary control outputs and two secondary/alarm relay outputs for versatile control and safety monitoring.
Seamless Integration: RS-485 interface with Modbus® protocol enables easy connection to PLCs, data systems, or PC-based configuration tools for centralized management.
Expandable Functionality: Optional hardware modules add remote set-point control, input retransmission, or event input capabilities to enhance system flexibility.
Advanced PID Tuning: Auto-tune or self-tune PID options simplify setup and ensure precise control, reducing the need for manual adjustments.
Reliable Performance: Built to Dwyer's rigorous standards, these controllers deliver consistent operation in demanding industrial environments.
