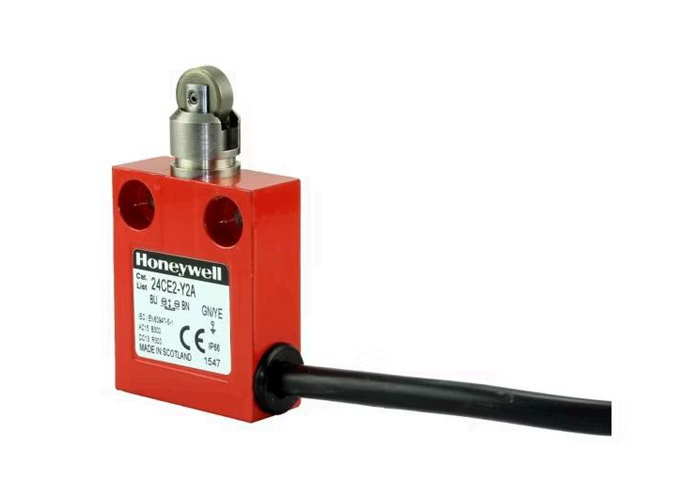

Name: Honeywell 24CE Series Miniature Safety Switch with IP66 Sealed Housing SIL3 Safety Level and Positive Opening Contacts
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: 24CE Series
Price: 152.00 USD
Availability: InStock

Home > Products > Precision Pressure Sensor >

Honeywell 24CE Series Miniature Safety Switch with IP66 Sealed Housing SIL3 Safety Level and Positive Opening Contacts

Honeywell 24CE miniature metal housing

IEC945-5-1 compliant pressure sensor

IP66 rated silver contacts sensor

Brand Name:

Honeywell

Model Number:

24CE Series

Request A Quote

Product Details

Rated Operational Current:

1.5 A, 0.1 A

Contact Type:

Slow Action

Contact Material:

Silver Alloy, Gold-plated Contacts Optional

Utilization Category:

AC15, B300: DC13, R300

Rated Operational Voltage (Ue):

240 V Ac Or Dc

Rated Thermal Current (Ith):

10 A

Highlight:

Honeywell 24CE miniature metal housing

IEC945-5-1 compliant pressure sensor

IP66 rated silver contacts sensor

Payment & Shipping Terms

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

Honeywell GSS Series EN50041 and EN50047 Standards Safety Switch with Positive Opening Normally Closed Contacts and UL CSA CE SIL3 Certification

Get Best Price

Honeywell Model LC Digital Force Indicator with 50,000 lb Range Stainless Steel Diaphragm and Peak Capture Feature

Get Best Price

Dwyer Series 2000 Industrial Pressure Gauge with ±2% Accuracy, IP67 Enclosure Rating, and 4" Dial Face

Get Best Price

Dwyer AtmosphereGuard RHP Humidity/Temperature Transmitter with Dual-Parameter Sensing, Wide Power Input Range, and User-Friendly LCD Display

Get Best Price

Contact Now

Product Description

Honeywell 24CE Series Miniature Safety Switches

Honeywell's 24CE Series miniature electromechanical safety switches are designed with a rugged metal housing. This Series features positive opening normally closed contacts to EN/IEC 60947-5-1-3 specifications. Due to their small size and positive opening normally closed contact, the 24CE Series provides a safety solution for applications where the size of other products could be prohibitive on the machinery.

The 24CE Series offers a variety of configurations which include a wide range of actuators, and circuits to solve many application issues. These miniature switches are weather sealed to IP66 for demanding environments on indoor or outdoor machinery. In addition, the 24CE Series has been evaluated for safety functions up to a safety integrity level (SIL) of SIL3 when evaluated to the requirements of IEC 61508-2:2010.

Key Features

Compact metal housing epoxy encapsulated with the common 25.4 mm [1.0 in] center-to-center mounting
Positive opening operation of normally closed contacts to EN/IEC 60947-5-1 specification
Designed and agency evaluated for safety functions up to a SIL3 level
Three different slow-action circuit options: 1NC/1NO BBM (break-before-make), 1NC/1NO MBB (make-before-break), and 1NC
Wide range of actuator heads and levers
Can be gang mounted for multiple-pole capability
CE, UKCA approvals
Environmentally sealed to IP66
Standard temperature operating range of 0°C to 70°C [32°F to 158°F]
Optional low temperature operating range of -40°C to 70°C [-40°F to 158°F]

Potential Applications

Industrial: Machine tools (small doors and apertures), Material handling, Packaging machinery, Trailer/truck restraint systems (dock-loks)

Transportation: Small construction machinery

Value to Customers

Miniature rugged 24CE switches with common 25.4 mm [1.0 in] mounting footprint
Switches easily gang mounted for multi-pole capability
Low temperature option of -40°C [-40°F]
Long life of up to 10 million mechanical operations

Differentiation

Miniature metal body size of 40 mm L x 16 mm W x 49 mm H [1.58 in L x 0.63 in W x 1.93 in H] requires less space on machinery
Positive opening normally closed contacts with an optional normally open contact
Designed and evaluated for safety functions up to a SIL3 level

Technical Specifications

Characteristic	Parameter
Description	Miniature safety electromechanical switch
Certifications	CE, UKCA, IEC/EN 60947-5-1
Housing material	Epoxy coated die-cast zinc
Actuators	Pin plunger (24CE1-) Roller plunger parallel (24CE2-) Roller plunger perpendicular (24CE3-) Rotary (24CE16-) Pin plunger with boot seal (24CE18-) Roller plunger parallel, panel mount (24CE28-) Roller plunger perpendicular, panel mount (24CE29-) Roller plunger parallel with boot seal (24CE31-) Roller plunger perpendicular with boot seal (24CE55-) Ball-bearing plunger (24CE66-)
Terminations	3-core or 5-core harmonised Cenelec cable
Contact options	1NC/1NO BBM (break-before-make), 1NC/1NO MBB (make-before-break), 1NC (all normally closed contacts are positive opening)
Contact type	Slow action
Contact material	Silver alloy, gold-plated contacts optional
Utilization category	AC15, B300: DC13, R300
Rated operational voltage (Ue)	240 V ac or dc
Rated operational current	1.5 A, 0.1 A
Rated thermal current (Ith)	10 A
Rated impulse withstand (Uimp)	2500 V
Maximum fuse rating	10 A
Environmental sealing	IP66
Operating temperature	Standard: 0°C to 70°C [32°F to 158°F] Optional: -40°C to 70°C [-40°F to 158°F]
MCTF (Mechanical life)	>1,000,000 cycles
MCTF (Electrical life)	>25,000 cycles
SIL Capability	Up to SIL3 (HFT1), IEC 61508-2
Proof test interval	1 year

Electrical Ratings EN/IEC 60947-5-1

AC			DC
B300		AC15	R300		DC13
UE (Volts)	IE (Amps)	AC15	UE (Volts)	IE (Amps)	DC13
120	3	3600/360	125	0.22	28/28
240	1.5	3600/360	250	0.1	28/28

Product Models

Part Number	Description
24CE31-T2	SAFETY LIMIT SWITCH - ENCLOSED
24CE31-Y5	ENCLOSED BASIC SWITCH
