Name: Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: DM-1102
Price: 152.00 USD
Availability: InStock

Home > products > Precision Pressure Sensor >

Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge

DM-1102 Digital Pressure Gauge

DigiMag Digital Differential Pressure Gauge

Brand Name:

DWYER

Certification:

Model Number:

DM-1102

Request A Quote

Product Details

Current Consumption:

5 MA Maximum

Electrical Connections:

Removable Terminal Block For 16 To 26 AWG

Electrical Entry:

Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable

Enclosure Rating:

NEMA 4X (IP66)

Accuracy:

±1% FS Including Linearity

Temperature Limits:

0 To 140°F (-18 To 60°C)

Highlight:

DM-1102 Digital Pressure Gauge

DigiMag Digital Differential Pressure Gauge

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000 Piece/Pieces per Week negotiable

636D-0 636D-1 Dwyer Series 636D Fixed Range Differential Pressure Transmitter Wetted Materials Types 316L SS

Get Best Price

Dwyer SafeTherm TTE-104 Explosion-Proof RTD Temperature Transmitter

Get Best Price

Dwyer PrecisionPro 16G/8G/4G Temperature & Process Loop Controllers

Get Best Price

Dwyer MultiFunction LCT216 Digital Timer / Tachometer / Counter

Get Best Price

86--17719566736

Contact Now

Product Description

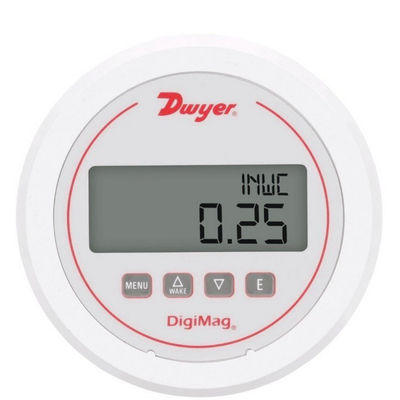

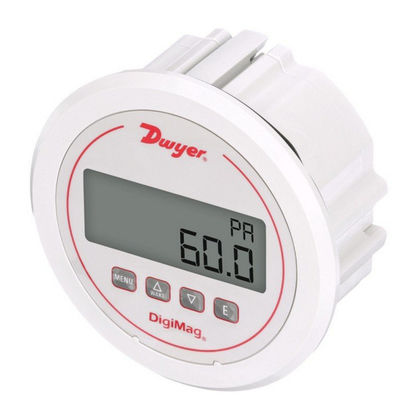

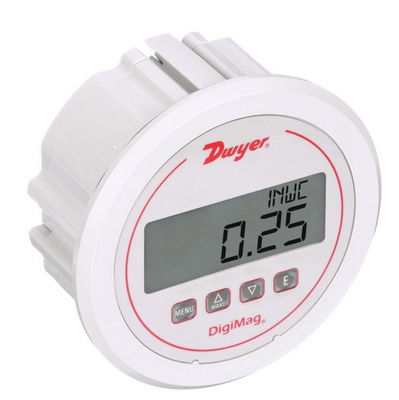

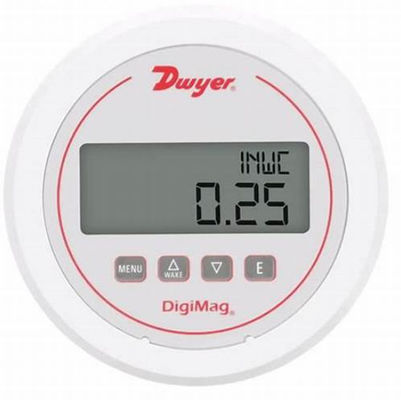

Dwyer DM-1102 DigiMag Digital Differential Pressure Gauge

Product Overview

The Dwyer DM-1102 is a precision digital differential pressure gauge from the DM-1000 series, designed for monitoring air and non-combustible gas pressures in critical environments like hospitals, clean rooms, and temporary facilities.

Key Features

Accuracy & Stability

±1% FS accuracy (includes linearity) for precise measurements
±1% FS/year long-term stability for consistent performance

Display & Units

4-digit LCD (0.60"H digits) with real-time readings
Selectable Imperial/Metric units with button controls

Field Programmability

Configure for pressure, air velocity, or flow (with K-factor input)
Set filter maintenance alerts via display flashing

Power Versatility

9V battery (ideal for wireless setups) or 9-24 VDC (permanent installations)
Low power consumption (5 mA max.) extends battery life

Durable Design

Glass-filled plastic housing with NEMA 4X (IP66) rating
Operating temp: 0-140°F (-18-60°C) suitable for diverse environments

Technical Specifications

Current Consumption	5 MA Maximum
Electrical Connections	Removable Terminal Block For 16 To 26 AWG
Electrical Entry	Cable Gland For 0.114 To 0.250" (2.9 To 6.4 Mm) Diameter Cable
Enclosure Rating	NEMA 4X (IP66)
Accuracy	±1% FS Including Linearity
Temperature Limits	0 To 140°F (-18 To 60°C)
Service	Air and non-combustible, compatible gases
Housing Materials	Glass filled plastic
Long Term Stability	±1% FS per year
Display	4-digit LCD (Digits: 0.60"H x 0.33"W)
Power Requirements	9V battery

Available Models

Model	Description
DM-1102	DigiMag® differential digital pressure gage, range 0-0.25" w.c.
DM-1103	DigiMag® differential digital pressure gage, range 0-0.5" w.c.
DM-1104	DigiMag® differential digital pressure gage, range 0-1" w.c.
DM-1105	DigiMag® differential digital pressure gage, range 0-2" w.c.
DM-1107	DigiMag® differential digital pressure gage, range 0-5" w.c.
DM-1108	DigiMag® differential digital pressure gage, range 0-10" w.c.
DM-1109	DigiMag® differential digital pressure gage, range 0-15" w.c.
DM-1110	DigiMag® differential digital pressure gage, range 0-25" w.c.
DM-1111	DigiMag® differential digital pressure gage, range 0-50" w.c.
DM-1112	DigiMag® differential digital pressure gage, range 0-100" w.c.
DM-1122	DigiMag® differential digital pressure gage, range 0.25-0-0.25" w.c.
DM-1123	DigiMag® differential digital pressure gage, range 0.5-0-0.5" w.c.
DM-1124	DigiMag® differential digital pressure gage, range 1-0-1" w.c.
DM-1125	DigiMag® differential digital pressure gage, range 2-0-2" w.c.
DM-1127	DigiMag® differential digital pressure gage, range 5-0-5" w.c.
DM-1128	DigiMag® differential digital pressure gage, range 10-0-10" w.c.
