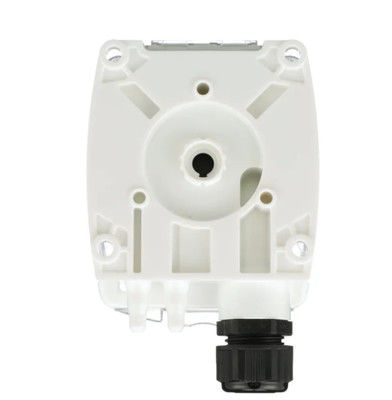

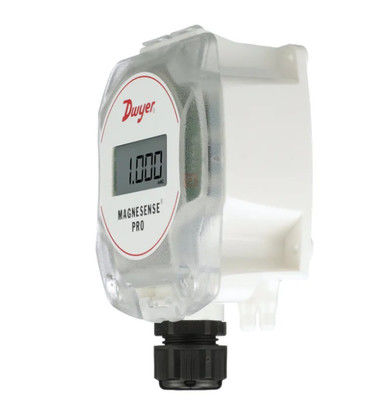

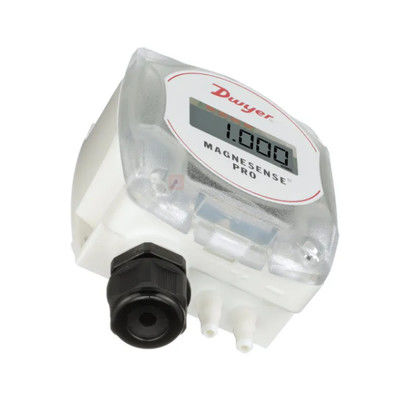

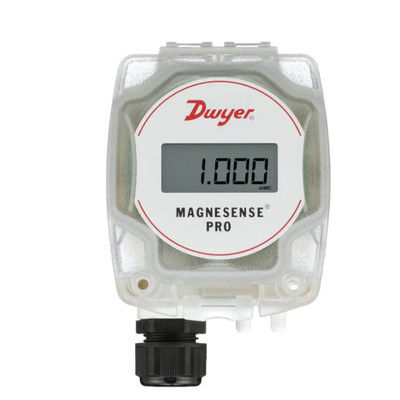

Dwyer MSX Pro Magnesense® Differential Pressure Transmitter

The Dwyer MSX Pro Magnesense Differential Pressure Transmitter is a professional-grade device designed for precise monitoring of differential pressure, air velocity, and volumetric flow in critical building applications. Engineered to meet stringent industry standards, it combines exceptional stability with versatile functionality.

• Wide Range of Configurations: 32 pressure ranges (unidirectional/bidirectional) in Pa, mm w.c., or in w.c.
• High Accuracy: ±0.5% FSO accuracy (±1% FSO for unidirectional 0.5 in. range)
• Stability: ±1% FSO/year long-term stability
• Versatile Media: Suitable for air and non-combustible gases

• Dual Signal Capability: 4-20 mA (2-wire) and selectable 0-10 V/0-5 V (3-wire) outputs
• Flexible Power Input: 10-36 VDC (2-wire) or 17-36 VDC/21.6-33 VAC (3-wire)

• Robust Enclosure: NEMA 4X (IP66), UL 2043 (Plenum), and UL94 V-0 fire rating
• Easy Setup: Tool-less terminal block and flip-lid housing for quick wiring
• Multiple Mounting Options: Wall, duct, or DIN mounting
• Optional Display: 4-digit LCD for real-time readings
