Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter

Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter

  • Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter
  • Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter
  • Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter
  • Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter
Fuel Level Piezoelectric Ultrasonic Transducer Ndt 8m Range For Gas Meter
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: KUA
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Frequency: 16, 21, 33, 34, 40, 49, 64, 80, 105, 200, 300KHz CT: 350, 360, 3400, 7100, 11000, 12700 PF, Etc
Type: Piezoelectric Ultrasonic Transducer Dimensions: 10, 14 Mm, Optional, Customizable
Material: POM, PC, PTFE, PVDF, Etc Product Name: Piezoelectric Ultrasonic Transducer
Protection Class: IP65 (IP66 Is Selectable) Application: Gas Meter, Gas Flow Meter, Wind Speed Indicator, Etc
Measuring Range: 0.1~50m Working Mode: Continuous, Intermittent
High Light:

waterproof ultrasonic sensor

,

ultrasonic fuel level sensor

Fuel Level Piezoelectric ultrasonic transducer probe sonicator ndt



1. Product Description



The ultrasonic transducer is a device that converts the signal of a different kind of energy into a device that requires an ultrasonic or signal or energy. Or, conversely, the ultrasonic signal or energy converted into another form of signal or energy device, widely used in industry, agriculture, transportation, life, medical and military affairs.

The ultrasonic transducer of our company is mainly divided into gas and liquid ultrasonic transducer with a wide range of measurements, applying to weak acid and base, strong acid and strong base, explosion and other environment.





2. Products of digital and analog piezoelectric ultrasonic transducer

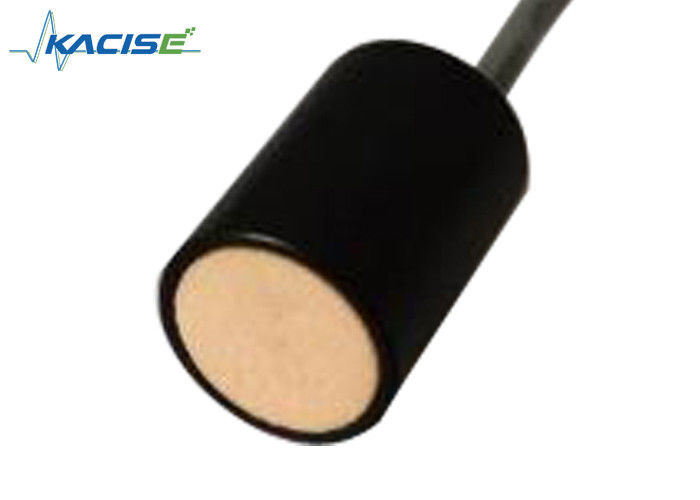

0.5m range ultrasonic transducer

Parameter GX-A300-005 Unit
Capacitance (±20% @1KHz) 350 PF
Sensitivity Driving voltage 750 Vpp
Distance 0.3 m
Echo amplitude 5 mV
Peak voltage <1000 VPP
Working temperature -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Angle Half-power angle @-3dB 7°±2 °
Sharpness angle 16°±4 °
Material POM
Application Sensor, Range finder, Flow meter
Protection Grade IP68
Dimensions 10 mm
Weight 5±5%(20cm) g
Frequency 300±20 KHz
Range 0.1~0.5 m
Min impedance 1500±20% Ω
Connection description

Integrated interface:

Red -> "+", Yellow -> "-", Black -> shielded wire.

Default without temperature sensor.

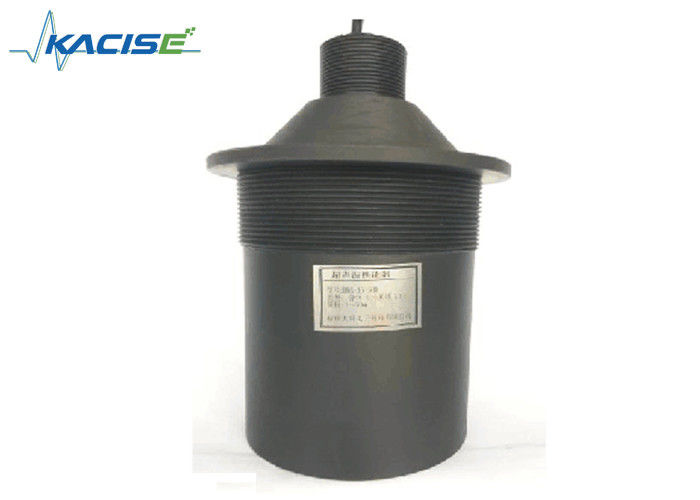

8m range ultrasonic transducer

Parameter GX-A49-080S Unit
Capacitance 4100 PF
Driving voltage 750 Vpp
Distance 0.6 m
Echo amplitude 380 mV
Peak voltage <1500 VPP
Working temp. -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Half-power angle @-3dB 5°±2 °
Sharpness angle 13°±4 °
Material PTFE
Application Monitoring, Collision avoidance, Security
Protection Grade IP68 KHz
Dimensions Lifting:M38×1.5, Bottom mounted:M78×2 mm
Weight 1170±5%(10m) g
Frequency 49±1.5
Range 0.4~8 m
Min impedance 200±20% Ω
Connection description Split:
4-line: Red -> " +", Yellow -> "-",
Blue or Black -> Temperature sensor wire(MF58).
3-line: Red -> transducer "+", Blue-> Temp. sensor "+",
Black-> shared "-"

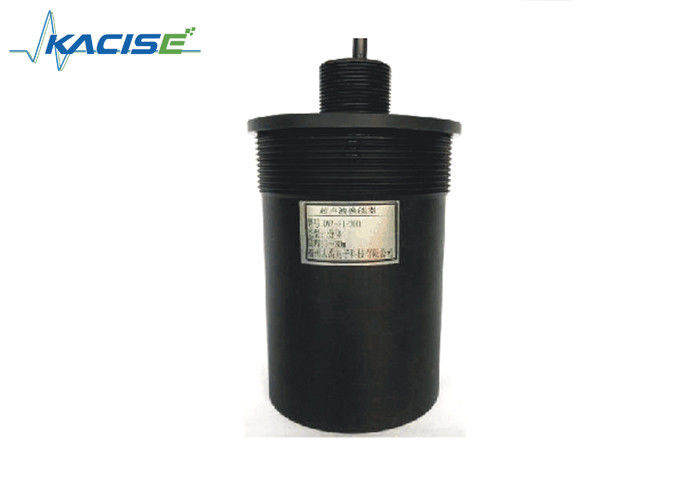

50m range ultrasonic transducer

Parameter GX-A16-500S Unit
Capacitance 12700 PF
Driving voltage 520 Vpp
Distance 0.6 m
Echo amplitude 1200 mV
Peak voltage <1500 VPP
Working temp. -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Half-power angle @-3dB 12°±2 °
Sharpness angle 28°±4 °
Material POM
Application Liquid level gauge
Protection Grade IP68
Dimensions Lifting:M32×1.5, Bottom mounted:M108×2 mm
Weight 2400±5%(10m) g
Frequency 16±1.5 KHz
Range 1.8~50 m
Min impedance 790±20% Ω
Connection description

Split: KUT-A16-500SS

4-line: Red -> "+", Yellow -> "-",

Blue or Black -> Temperature sensor wire(MF58).

3-line: Red -> transducer "+", Blue-> Temp. sensor "+",

Black-> shared "-".

Integrated: KUT-A16-500SI

3PIN,2.54mm Terminal:

Red-> "+", White-> "-", Black-> shielded wire.

3PIN,2.0mm Terminal:

Red or Black -> Temperature sensor wire(MF58)



Horizontal cylindrical air non-directional

Parameter GX-A33-150 Unit
Capacitance 3700 PF
Radiation range 10 M
Peak voltage <600 VPP
Working temp. -40~80 °C
Pressure ≤3 | 0.3 Kg|MPa
Horizontal No direction
Vertical Half-power angle @-3dB 12°±2 °
Sharpness angle 28°±4 °
Material POM
Application Liquid level gauge, Distance measuring
Protection Grade IP68
Dimensions Lifting:M32×1.5, Bottom:M108×2 mm
Weight 2400±5%(10m) g
Frequency 33 KHz
Range 0.1~15 m
Min impedance 600±20% Ω
Connection description

Integrated interface:

Red -> "+", Yellow -> "-", Black -> shielded wire.

Default without temperature sensor.





3. Feature



  • Short response time
  • Digital tube display measuring distance
  • Various springs available: switch, analog, or RS232/485
  • High resolution



4. Application Field



  • Wind speed indicator
  • Ranging in air medium
  • Object position detection
  • Monitoring, collision avoidance, security
  • Gas meter
  • Gas flow meter
  • Paper detection
