KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price

KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price

  • KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
  • KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
  • KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
  • KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
  • KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
  • KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KUF2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set/Sets
Price: US $190-390 / Sets
Packaging Details: Carton or customers requests available
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Set/Sets per Month
Contact Now
Detailed Product Description
Power Supply: 24VDC, 3*1.2V Battery Or AC90 ~260 Power Adapter Output Signal: Pulse / 4~20mA / RS485 / RS232 /OCT
Accuracy: Up To 1% Temperature: -30~160C
Protection Grade: IP67 Application: Water Supply,heating Supply,energy Conservation
Item: Clamp On Ultrasonic Flowmeter
High Light:

portable clamp on flow meter

,

ultrasonic liquid flow meter

KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price

 KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price 0





Introduciton

KUF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type.

Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. And all the models can become energy meters when connecting to temperature sensors. KUF2000 Series Clamp On Ultrasonic Flowmeter is easy for installation, no need to cut off the pipe and water, no press loss. It support measuring online long-term. Wide range of liquid flow can be measured with the sensor clamped on the pipe.

Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.

Inline pipe type: DN15-32 pipes uses π shape inline pipe sensor,  DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.



Basic Parameters

Accuracy

≤1%

Velocity Range

0~±10m/s, Bi-directional measurement

Pipe Size

DN32~DN6000

Temperature

-30~160℃

Type of Liquid

Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc

Pipe Material

Steel, Stainless steel, Cast iron, Copper, PVC, Aluminum, Glass steel, etc. Liner is allowed

Signal Output

1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

1 way OCT pulse output( Pulse width 6 ~ 1000ms)

1 way relay output

Signal Input

3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.

Interface

RS485, support MODBUS

Data Storage

SD card regularly store the pre-set results (optional)

Power Supply

DC8~36V or AC85~264V

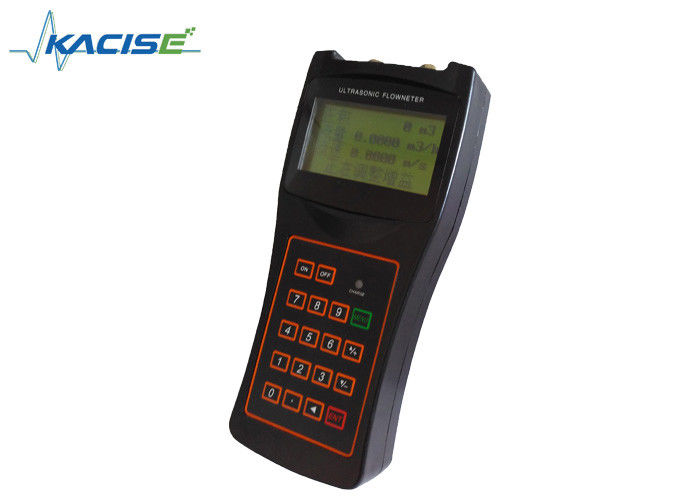

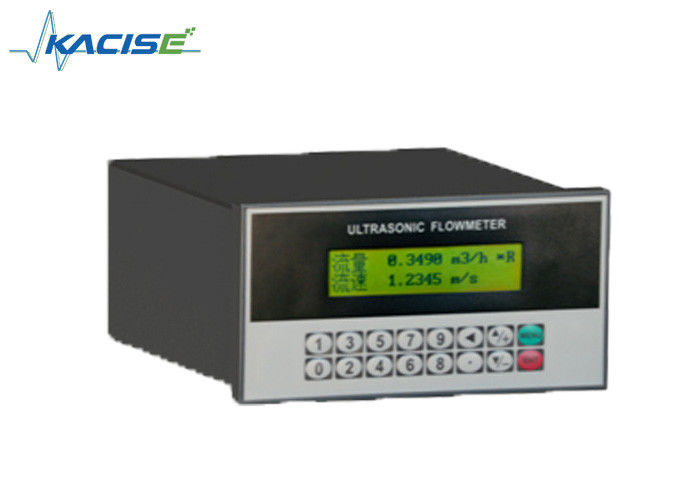

Optional Flow Meter Main Unit

inline flow meter1.jpg



Optional Clamp On Sensors

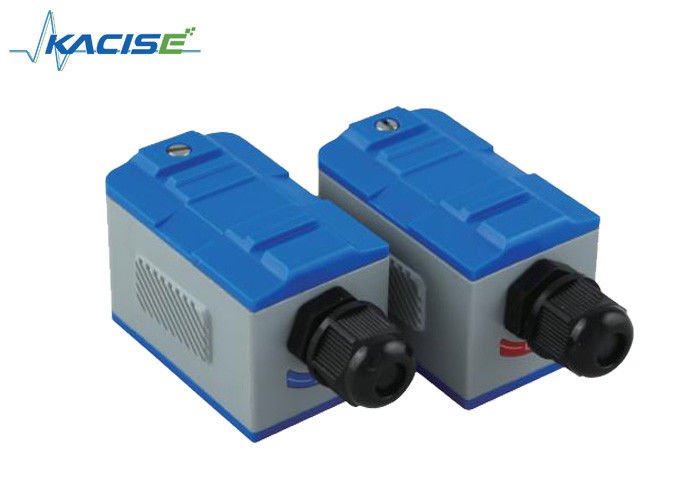

1. Standard Clamp On Sensor

  • Built-in magnet, easy to be absorbed on pipe
  • IP68
  • Measuring range: DN32~DN6000
  • Temperature range: - 30~90℃
                            KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price 2



Type Model Measuring Range Temperature Dimension
Small Size TS-2 DN32~DN100 - 30~90℃ 45×25×28mm
Middle Size TM-1 DN50~DN700 - 30~90℃ 64×39×44mm
Large Size TL-1 DN300~DN6000 - 30~90℃ 97×54×53mm

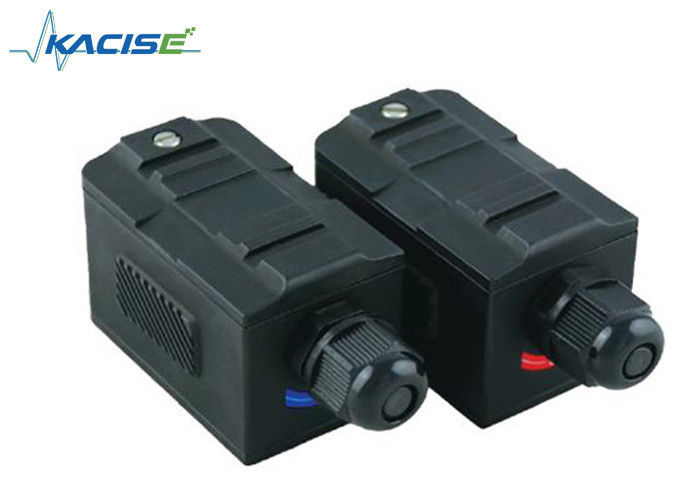

 2. High Temperature Clamp On Sensor

 KUF2000 Series Clamp On Ultrasonic Flowmeter with Affordable Price 3

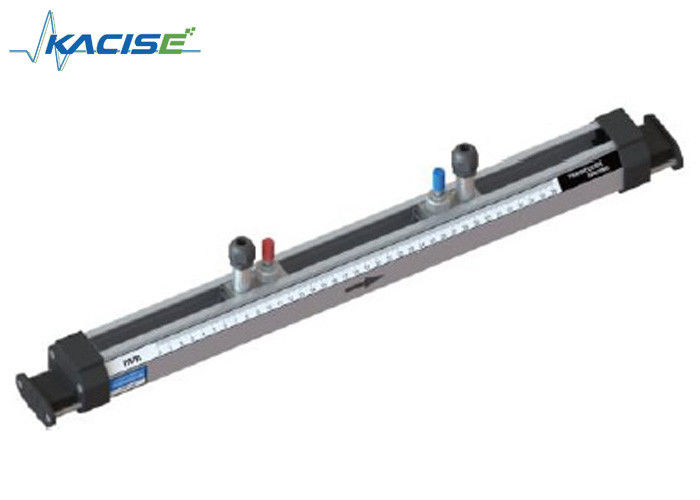

3.  Mounting Bracket Clamp On Sensor

clamp on ultrasonic flowmeter
Production Flow

ultrasonic flow meter.jpgflowmeter  deliver.jpg

Applications

ultrasonic flow meter.jpg

Certifications

certificate_v1.2

Company Information

KUF2000 Ultrasonic Flow Meter flowmeter Clamp on Sensor with Affordable Price

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.



Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

Our Services



  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
  • We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.



FAQ

1. Q: What information need to be provided to choose the suitable model?

    A: Application field, measuring range, output, accuracy, connection and other related parameters.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us.

3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty?

    A: Yes, we have the warranty of 12 months.
