Place of Origin:
China (Mainland)
Brand Name:
KACISE
Certification:
CE
Model Number:
KEF Series
Application field
Petroleum, Chemical, Metallurgy, Textile, Papermaking, Environmental protection, Food industry and Municipal administration, Water conservancy construction, Heating heating engineering, River dredging and other fields.
Description

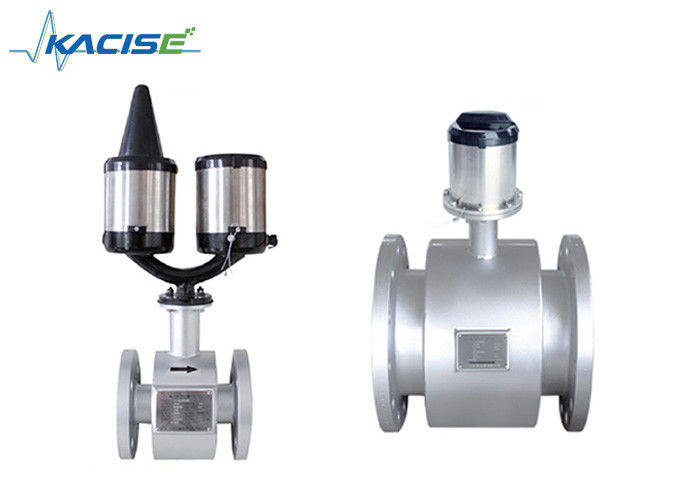

KEF Serie electromagnetic flow meters are intended for fluid measurement in most industries including water, wastewater, food and beverage, pharmaceutical and chemical.

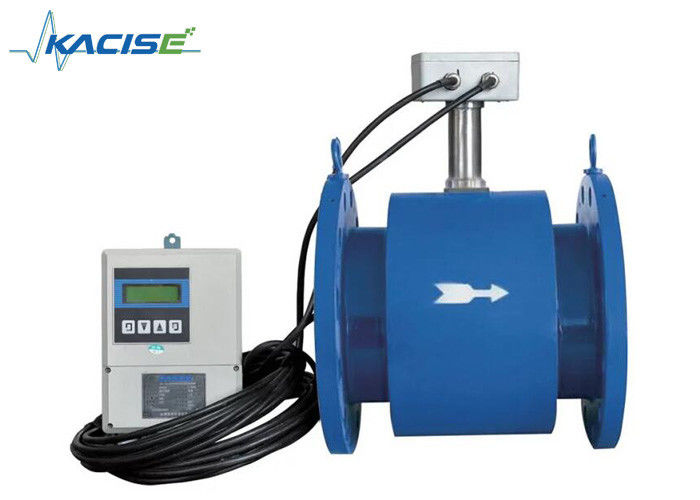

There are two basic components of electromagnetic flow meter: 1) The Detector, which includes the flow tube, isolating liner and measuring electrodes, and 2) The Converter, which is the electronic device responsilbe for signal processing, flow calculation, display and output signals.
The materials of construction of the wetted parts( liner and electrodes) should be appropriate for the specification on the intended type of of service. Revies of the compatibilities consistent with the shipment of each meter.
Technical Data
Upper Limit of Span |
0.5~10m/s. 1~5m/s recommended |
|
Accuracy |
0.3% (Option), 0.5%, 1.0% of F.S.. |
|
Repeatability |
Below 0.25% |
|
Power |
AC: 220V, 50-60Hz; DC: +24V(Option) |
|
Output Signals |
RS-485/modbus; HART |
|
Conduit connection |
M20 * 1.5 Thread |
|
Communication Interface |
RS-232; RS-485; HART |
|
Operation Pressure |
1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special) |
|
Fluid Temperature |
-20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material |
|
Ambient Temperature |
Sensor -40°C ~80°C. transducer -15°C ~50°C |
|
Ambient Humidity |
≤ 85%RH (at 20C) |
|
Cable Outlet Size |
M20×1.5 |
|
Power Supply |
220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years) |
|
Power Consumption |
≤ 2W |
|
Protection Ratings |
Remote type: sensor IP68, transducer IP65. |
|
Materials |
Electrode |
316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc. |
|
Liner |
PTFE, Soft rubb er, Hard rubber, F46, FS, PUR. |
Measuring tube |
SS 304,Carbon |
|
Flange |
Carbone Steal, SS304 |
|
Ground ring |
316L (stainless steel), HC, Ti, Ta, Cu. |
|
Connection of Flange |
National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw. Tri-clamp for sanitary application Insertion type. |
|
EX-proof protection |
Exde ib ii BT2 |
|
Quality control |
ISO9001-2008, CE |
