|Place of Origin:||China (Mainland)|
|Model Number:||KPC Series|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||carton or customers requests available|
|Delivery Time:||Shipped in 7 days after payment|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||3000 Piece/Pieces per Month|
|Pressure Type:||Gauge||Liability:||≤0.1% /year|
|Power:||±0.25%FS||Power Supply:||24VDC Or 220VAC|
|Display:||0.56" LED||Display Range:||-1999~9999|
high precision pressure gauge,
stainless steel pressure gauge

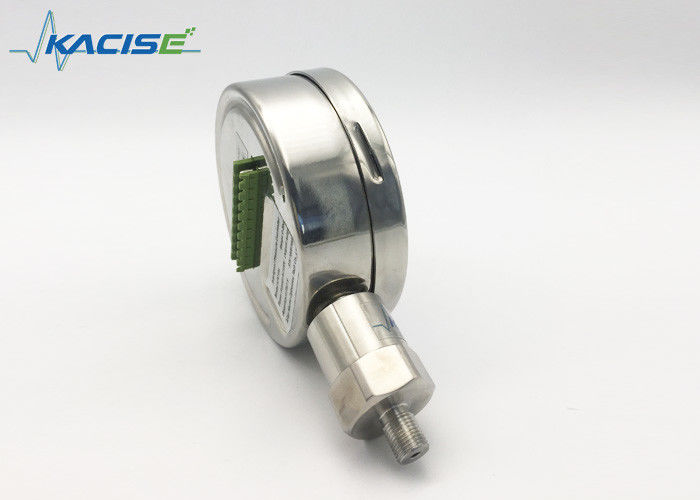

This is an intelligent digital displayed product for pressure test and controll. It has a complete electronic structure. Oil-filled piezo-restive pressure sensor with diaphragm is applied in the front part. The processed signals control two switches then to test & control the pressure. With flexible application, easy debugging and high reliability, this product is widely used applied to test & control the pressure of fluid medium in many industries including areas of hydroelectricity,city water,oil,chemical,machinery hydraulic system etc.
|Over load||200%||Pressure type||Gauge|
|Liability||≤0.1% /year||Power||24VDC or 220VAC|
|Display||0.56" LED||Display range||-1999~9999|
|Response time||<30ms||Ambient temperature||-20℃~70℃|
|Relative humidity||≤80%||Wetted part||SS304|
1.Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2.Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3.Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
4.Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our pressure transmitter work perfectly at your end.
