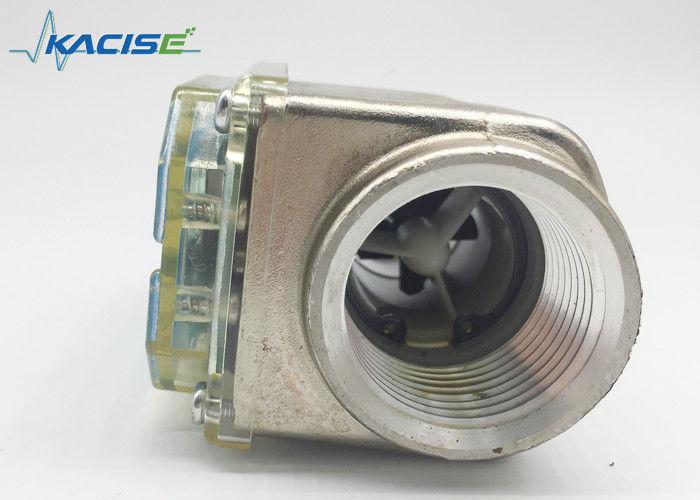

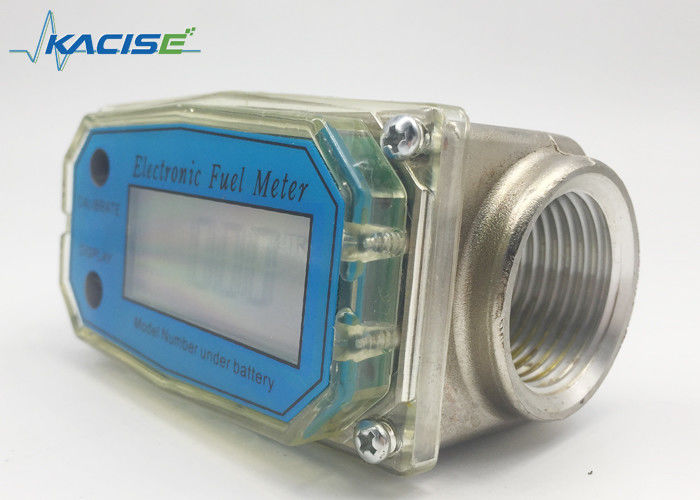

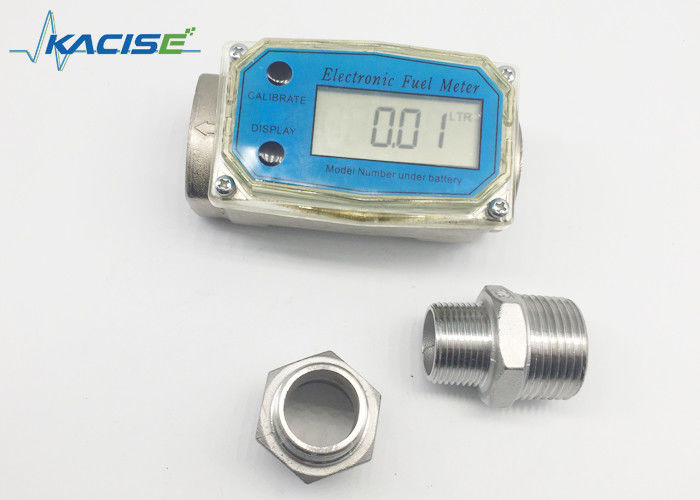

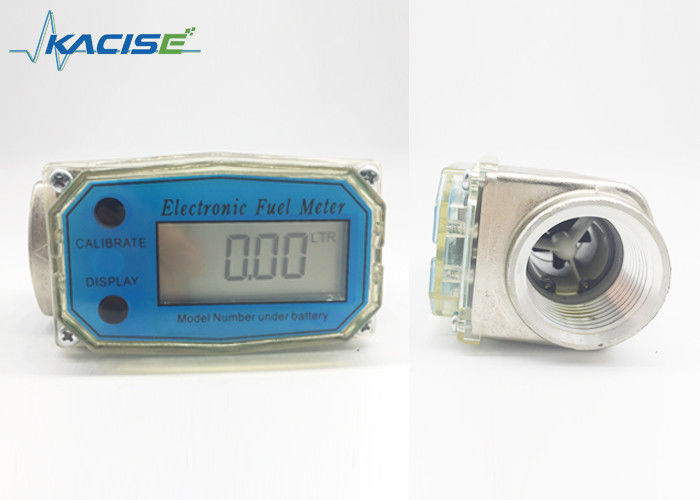

KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption

KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption

  • KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption
  • KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption
  • KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption
  • KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption
  • KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption
KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption
Product Details:
Place of Origin: China (Mainland)
Brand Name: KACISE
Model Number: KTFL Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: US $250-450 / Pieces
Packaging Details: carton or customers requests available
Delivery Time: 5 working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month mini flow meter
Contact Now
Detailed Product Description
Name: Turbine Diesel Flow Meter Nominal Pressure: Max 0.25 Mpa
Medium: Fuel Oil, Diesel, Gasoline, Kerosene Power Supply: 2.3~3.3VDC
Material: SS304, SS316 Connection: Flange, Thread
Item: Mini Diesel Flow Meter
High Light:

turbine water flow meter

,

explosion proof flow meter

Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter



Description



Before using the device, make sure to install the battery.



The high-precision meter is designed for versatile use across different countries and offers four unit options: Liters (L), Gallons (GAL), Pints (PT), and Quarts (QT). The internal battery provides approximately 9000 hours of operation. Achieving remarkable accuracy is possible through fine adjustment, allowing for precision as high as ±0.3%.



Technical Data



Connector: BSPT1”
Voltage: DC 2.3V-3.3V
Max.Pressure: 0.25Mpa
Precision: ±0.5%
Flow: 20-120L/min
Usage: Diesel, Kerosene, Gasoline
Working Temp. -10~+60℃
Battery: AAAsize×2
Stand-by time: 2years
LCD Display: 5-digit
Single count: 0.00-9999.9
Accumulation: 0-99999



Functions



Reset to “0”
Press “DISPLAY” for 1second reset to zero.


Cumulative Total
Press “CALIBRATE” indicating the cumulative total fueling. When the cumulative total reaches a maximum reading 999,999, it will automatically reset to zero.


Calibrate adjusting

Press“CALIBRATE” and hold for 5 seconds, press “DISPLAY” or “CALIBRATE” for adjusting. For example, when the meter shows 100L while the liquid comes 105L put the coefficient1.0000-0.05=0.9500 when the meter shows 100L while the liquid comes 95L put the coefficient1.0000+0.05=1.0500 .And the display is programmed to turn back to stand-by situation after 5 seconds. ( The initial coefficient is 1.0000)



Units Switch

Press“CALIBRATE” and hold for 5 seconds, press “DISPLAY” for 5 times and then press“CALIBRATE” for units swith among Liters(L) / Gallons(GAL) / Pints(PT) / Quarts(QT). . And the computer display is programmed to turn back to stand-by situation after 5 seconds



Maintenance


The meter is virtually maintenance-free. How-ever, it is important the rotor moves freely. Keep the meter clean and free of contaminants.If the rotor does not turn freely, apply a penetrating lubricant on the rotor, shaft, and bearings.Remove any debris or deposits from the rotor using a soft brush or small probe. Be careful not to damage the turbine rotor or supports.
Replace batteries when “L Bat” comes

Diesel flowmeter.jpg

PS: For the most accurate reason, before using, make sure there is no air in the system and meet the meter’s minimum flowrate requirements. Please keep the meter away from the magnetic objects or shock the meter.

Production Flow

gas turbine flow meter.jpg

Packaging & Shipping

 packing turbine flow meter.png

Cases

Turbine flowmeter.jpg

Certificates

KTFL Series Intelligent Mini Electronic Fuel Meter Low Power Consumption 4

Company Information

company

Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.

We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.

Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.

We supply high quality Turbine Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.

Our Services
  • Your inquiry will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires in fluent English.
  • OEM&ODM, we can help you to design and your request will be put into product.
  • Distributorship are offered for your unique design and some our current models.
  • Protection of your sales area, ideas of design and all your private information.
  • Discounts are offered based on order quantities.
FAQ
1. Q: What information need to be provided to choose the suitable model?
     A:  Application field,  Nominal pressure ,Medium & medium temperture , Power supply , Output,
Flow range, Accuracy, Connection and other parameters.

2. Q: Are you a trade company or a manufacturer?

    A: We are an ISO approved manufacturer specialized in level and flow measuring instruments.

        OEM & ODM service are available. Welcome to visit us in China.

3. Q: What is your MOQ?

    A: To start our cooperation, sample order is acceptable.

4. Q: What is your delivery date for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?

    A: The delivery date is about 3-15 working days after receipt of payment.

5. Q: What is your payment terms?

    A: We support T/T, PayPal and Trade Assurance.

         For mass production order, it is 30% deposit in advance and 70% balance before shipment.

6. Q: What is Trade Assurance payment method:

    A: It’s a free service which can protect your orders from payment to delivery.

        And we now have USD104,000.00 of caution money to assure your orders.

7. Q: Do you have a warranty for the Intelligent Mini Micro Turbine Fuel Oil Diesel Flow Meter?

    A: Yes, we have the warranty of 12 months.
