Intelligent digital signal output 6GHz Radar water Level meter

Intelligent digital signal output 6GHz Radar water Level meter

ultrasonic fluid level sensor

ultrasonic level transmitter

Place of Origin:

China (Mainland)

Brand Name:

KACISE

Model Number:

KLD60 series

Contact Us
Request A Quote
Product Details
Measuring Range:
15m, 20m, 35m
Power Supply:
Two-wire (DC24V), Four-wire(DC24V/AC220V)
Output Signal:
4-20mA / HART
Frequency Range:
26Ghz
Temperature:
-40~400℃
Liquid Medium:
Water, Sea Water, Sewage, Chemical Liquids, Bases, Oil
Highlight:

ultrasonic fluid level sensor

,

ultrasonic level transmitter

Payment & Shipping Terms
Minimum Order Quantity
0-100
Price
US $500-940 / Pieces
Packaging Details
1pc/box, many boxes/ carton, some carton/wooden case, or customers requests available
Delivery Time
7 working days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
200 Piece/Pieces per Month
Product Description
Explosion-Proof 6G Intelligent Radar Sensor Liquid Level Meter Measuring Instrument


Introduction



6G radar level gauge is suitable for liquid, paste, granule and block material leve and non-contact measurement, suitable for changes in temperature, pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment



Operation principle



The product uses intelligent self-tuning echo tracking technology of non-contact measurement, the use of micro-fit waveguide technology design and ultra-wideband echo trace capture / emission energy regulation and control technology to solve the measurement and pulse conditioning stability. Al Pease antenna design uses a total gain of 23dB, half-power beamwidth of about 8.5o.



Feature of 6G Radar Level Sensor



1)  non-contact measurement

2)  high-precision, high stability, high reliability

3)  long life

4)  compact structure, environmental adaptability

5)  does not need periodic re-calibration and maintenance

6)  easy to install



Parameters



KLD601




Suitable for Medium: Liquid, slightly corrosive liquid

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 20m

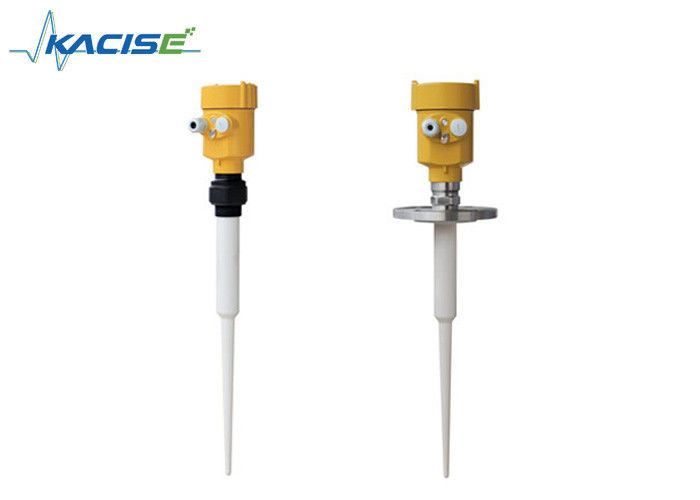

Aerials: The Rod Antenna (PP/PTFE)

Frequency: 6GHz

Temperature: (-40 ~ 130)

Measurement Precision:  ±10mm

Process Pressure: (-0.1 ~ 0.3) MPa

The signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional) / Thread



KLD602






Suitable for Medium: Liquid, especially for corrosive liquid

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 20m

Aerials: The Rod Antenna (PTFE)

Frequency: 6GHz

Temperature: (-40 ~ 180)

Measurement Precision: ± 10mm

Process Pressure: (-0.1 ~ 4) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

 Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)





KLD603




Suitable for Medium: Liquid, especially with pressure and Volatile Liquid

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring range: 35m

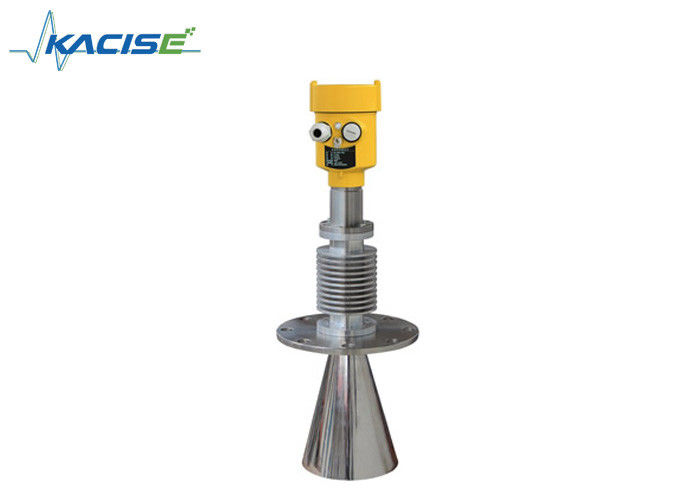

Aerials: The Horn Antenna

Frequency: 6GHz

Temperature: (-40 ~ 250) ℃

Measurement Precision: ± 10mm

Process Pressure: (-0.1 ~ 4) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)



KLD604




Suitable for Medium:Solid particles or block material, And it is not suitable for solid powder

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 35m

Aerials: The Horn Antenna

Frequency: 6G Hz

Temperature: (-40 ~ 250) ℃

Measurement Precision: ± 20mm

Process Pressure: (-0.1 ~ 0.1) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Cardan Flange (optional)



KLD605




Suitable for Medium: Liquid, especially suitable for low dielectric constant, sticky, with mixing liquid.

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 20m

Aerials: The Horn Antenna

Frequency: 6GHz

Temperature: (-40 ~ 400)

Measurement Precision: ±10mm

Process Pressure: (-0.1 ~ 4) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)



KLD606




Suitable for Medium: Solid, especially suitable for high temperature conditions

Explosion-proof Grade: Exia IIC T6 Ga/ Exd ia IIC T6 Gb

Measuring Range: 15m

Aerials: The Horn Antenna

Frequency: 6GHz

Temperature: (-40 ~ 400)

Measurement Precision: ± 20mm

Process Pressure: (-0.1 ~ 0.1) MPa

The Signal Output: (4 ~ 20) mA/HART

The Scene Display: Four LCD/can be programmed

Power Source: Two-wire (DC24V)

Four-wire(DC24V/AC220V)

Repeatability: ± 1mm

Casing: Aluminum/Plastic

Connection: Flange (optional)
