|Place of Origin:||China|
|Certification:||ISO / CE|
|Model Number:||KEF Series|
|Minimum Order Quantity:||1pc|
|Packaging Details:||Carton / Wooden box|
|Delivery Time:||7 Working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Pressure:||1.6 Mpa ,2.5Mpa ,4.0Mpa (Special)||Diameter:||DN10 ~ DN2600|
|Temperature:||-20°C - +160 °C||Power Supply:||24VDC, 220VAC|
|Communication:||RS-485 / MODBUS , HART||Accuracy:||±0.2% (Customize), ±0..5% （Standard）|
|Electrode:||SUS316,HC,HB,Titanium, Tantalum, Etc.||Output Signal:||4~20mA / Pulse / 0~10V|
|Installation:||Flange, Clamp On, Thread||Liner:||PTFE, F46, PFA|
wastewater flow meter,
electromagnetic water flow meter

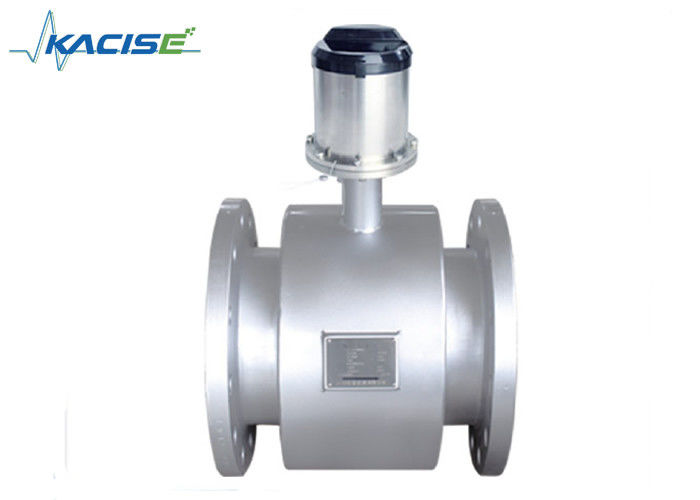

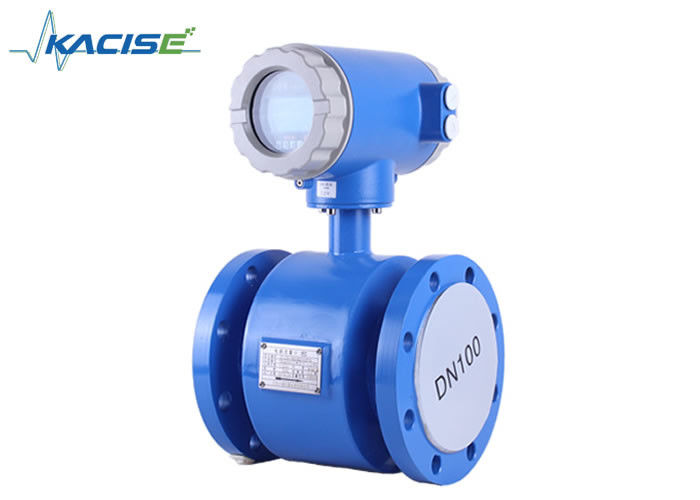

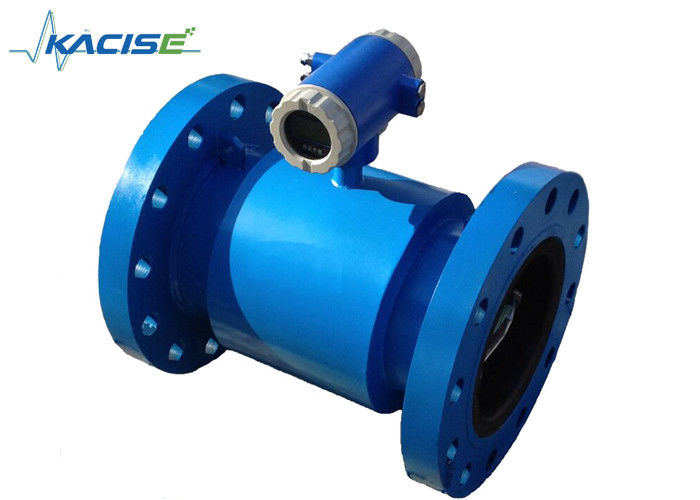

Resistance Strong Corrosive Liquid Integrated Type Electromagnetic Flow Meter With PTFE Liner
Electromagnetic Flow Meter is a kind of induction instrument designed by Faraday’s law of electromagnetic induction to measure flow of conductive media in the tube. It adopts the technology of insertion of single chip to realize digital excitation and employs CAN local fieldbus.
Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.
Besides measuring flow of general conductive liquid electromagnetic flow meter can measure flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid and strong alkali.
1. Simple structures, firm, no movable parts and long operation life.(Guarantee in 1 years)
2. No intercepting fluid parts, no pressure loss and fluid clogging.
3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.
4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.
6. Supply many styles of flow meters such as inline type and insertion type, etc.Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.
7. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.
8. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.
|Accuracy||0.3% (Option), 0.5%, 1.0% of F.S..|
|Power||AC: 220V, 50-60Hz; DC: +24V(Option)|
|Output Signals||4~20mA, Pulse, 0~5V,0~10V|
|Conduit connection||M20 * 1.5 Thread|
|Communication Interface||RS-232; RS-485; HART|
|Operation Pressure||1.0MPa, 1.6MPa, 4.0MPa, 16MPa (Special)|
|Fluid Temperature||-20°C~80°C, 80°C ~130°C, 130°C ~180°C Depending on Lining Material|
|Ambient Temperature||Sensor -40°C ~80°C. transducer -15°C ~50°C|
|Ambient Humidity||≤ 85%RH (at 20C)|
|Cable Outlet Size||M20×1.5|
|Power Supply||220VAC±10%, 50-60Hz±1Hz, 24VDC±10%, Battery power (3-5years)|
|Power Consumption||≤ 15W|
|Protection Ratings||Remote type: sensor IP68, transducer IP65.|
|Materials||Electrode||316L (stainless steel), Hastelloy C, Hastelloy B,Titanium, Tantalum, etc.|
|Liner||PTFE, Soft rubb er, Hard rubber, F46, FS, PUR.|
|Measuring tube||SS 304, carbon steel|
|Flange||Carbon Steal, SS304|
|Ground ring||316L (stainless steel), HC, Ti, Ta, Cu.|
|Connection of Flange||
National Standard GB9119-88 (DIN2051, BS4504), JIS,ANSI. Screw.
Tri-clamp for sanitary application
|EX-proof protection||Exde ib ii BT2|
