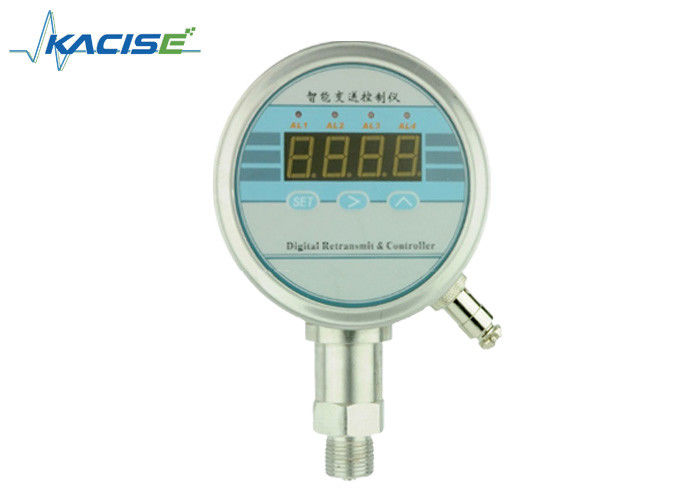

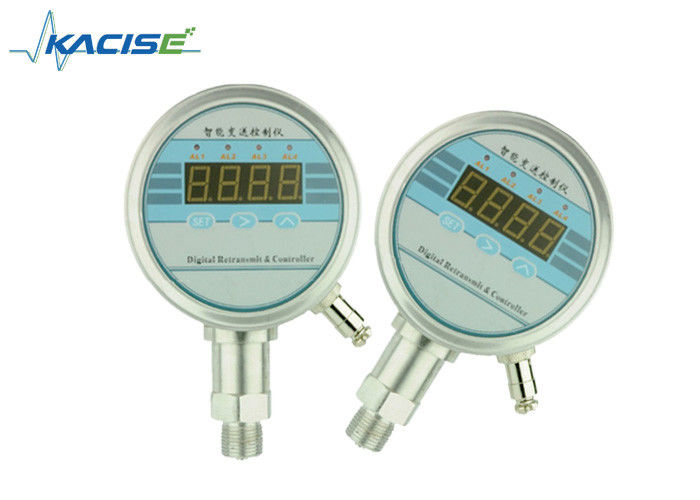

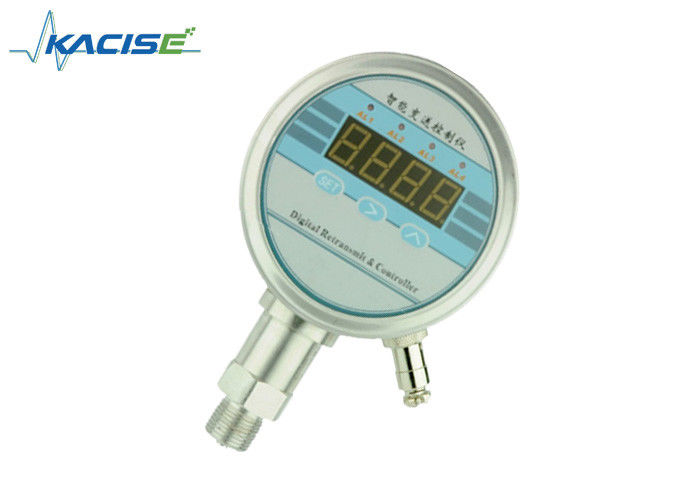

Name: Stable Stainless Steel Digital Pressure Gauge with High Accuracy and LED Display for Industrial Use
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KPC100
Price: 1,030.00 USD
Availability: InStock

Home > Products > Precision Digital Pressure Gauge >

Stable Stainless Steel Digital Pressure Gauge with High Accuracy and LED Display for Industrial Use

high precision pressure gauge

stainless steel pressure gauge

Place of Origin:

Shaanxi, China (Mainland)

Brand Name:

KACISE

Model Number:

KPC100

Request A Quote

Stable Stainless Steel Digital Pressure Gauge with High Accuracy and LED Display for Industrial Use

Product Details

Pressure Range:

-0.1．．．0~0.01．．．~100MPa

Accuracy:

±0.25%（typical） ±0.5%（Max.）

Proof Pressure:

≤1.5X Rated Pressure

Pressure Type:

Gauge, Absolute ,sealed Gauge

Long Stability:

±0.3%F.S/year

Power Supply:

24V DC Or 220VAC

Highlight:

high precision pressure gauge

stainless steel pressure gauge

Payment & Shipping Terms

Minimum Order Quantity

1 Piece/Pieces

Price

Negotiable

Packaging Details

carton or customers requests available

Delivery Time

5 working days after payment

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

3000 Piece/Pieces per Month

Precision Digital Pressure Gauge with IP65 Rating, Over Pressure Protection, and Large LCD Backlight

Get Best Price

High Precision Digital Pressure Gauge with IP65 Protection and 0.56 Inch LED Display KPG104

Get Best Price

Video

Stainless Steel High Precision Digital Pressure Gauge with Touch Button and Data Logger GXPS201C

Get Best Price

KPG201 Digital Pressure Gauge with Data Logger 0.05% Accuracy and 11000 Data Storage Capacity

Get Best Price

Contact Now

Product Description

Digital High Accuracy Stainless Steel pressure transmission controller

Description
KPC100 digital pressure gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.

Features

Wide range, Full stainless steel.
Various pressure point.
￠100mm profile.
High light LED display.
Two supply power mode 24VDC or 220VAC.
Marking: ExiaIICT6
Can provide Max. 3 way control contact point,
value of contact point and status of contact point can be set freely

Application

Compatible with 316LSS, noncorrosive liquids.
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control

Parameter

Measurement Range	-0.1．．．0~0.01．．．~100MPa
Proof pressure	≤1.5X rated pressure
Pressure type	Gauge, absolute ,sealed gauge
Accuracy	±0.25%(typical) ±0.5%(Max.)
Long stability	±0.3%F.S/year
Temperature Error- Zero	±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
Temperature Error -Span	±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
Operating Temperature Range	-20℃~80℃
Storage Temperature Range	-40℃~120℃
Power supply	24VDC or 220VAC
Output signal	Analog :4～20mA
Pressure port	M20×1.5 , G1/2 or customize
Relay control	1～3 way relay AC220V/3A
Life of contact point	More than 100000 times
Display	-1999～9999
Housing material	1Cr18Ni9Ti stainless steel
Diaphragm material	316L
O ring	Fluororubber
Cable	Polyethylene
Insulation resistance	100MΩ 100VDC
Protection	IP65

Dimension

Ordering information

Ordering note

Media must compatible with wetted part.
When release order, please mark: power supply, accuracy, number of control point and whether need RS485 interface.
To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
Special requirement, such as strong shock, moment vibration, strong electromagnetism, radio frequency interference, please consult us.

KPC100	Intelligent pressure gauge
KPC100	Code		Dimension
	01	￠100 profile, Stainless steel body				2001		Din connector
	02	￠150 profile cast Aluminium housing				2002		Direct outlet 1.5 meter
	03	￠117 profile explosion-proof housing
	04	Aviation connector
		Range		-0.1. . .0～0.01．．．100MPa
		(0-X) KPa or MPa		X: actual range
				Code	Power supply
				D1	24VDC
				D2	220VAC
					Code	Output signal
					S1	4～20mADC
					S2	1～5VDC
					S3	0～5VDC
					S4	0～10mADC
					Code	Output function
					S5	One-way relay
					S6	Two-way relay
					S7	Three-way relay
					S8	Four-way relay
					S9	Four-way relay RS485 interface
					S10	One-way relay switching value output
					S11	Two-way electron switch value
						Code	Pressure port
						J1	M20×1.5 Male
						J2	G1/2 Male
						J3	G1/4 Male
						J4	others
							Code		Pressure type
							G		Gauge pressure
							A		Absolute pressure
							S		Sealed gauge
