Digital High Accuracy Stainless Steel pressure transmission controller
Description

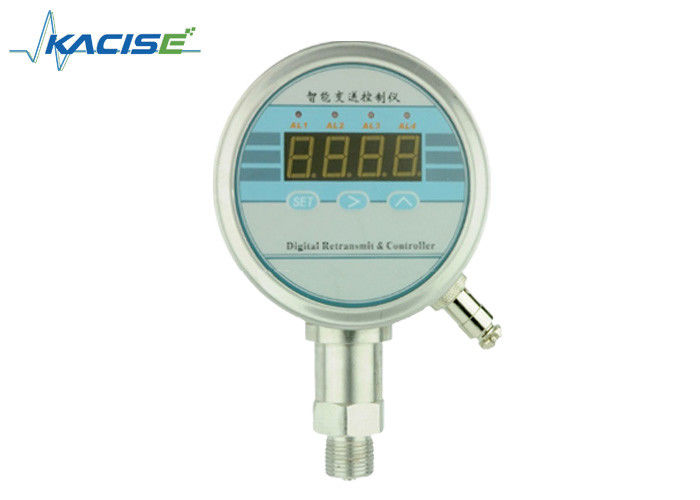

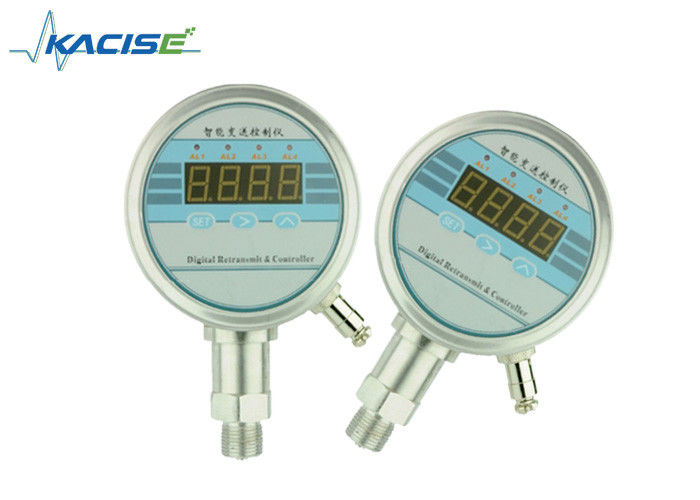

KPC100 digital pressure gauge measuring, display, control & transmit together. Can be easy installed to measuring pressure at the scene .It can set the zero output ,span output, pressure of contact point and control pressure with key at scene.
Features
1, Wide range, Full stainless steel.
2, Various pressure point.
3,￠100mm profile.
4, High light LED display.
5, Two supply power mode 24VDC or 220VAC.
6, Marking: ExiaIICT6
7, Can provide Max. 3 way control contact point,
8, value of contact point and status of contact point can be set freely
Application
1, Compatible with 316LSS, noncorrosive liquids.
2, Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control
Parameter
| Measurement Range | -0.1．．．0~0.01．．．~100MPa |
| Proof pressure | ≤1.5X rated pressure |
| Pressure type | Gauge, absolute ,sealed gauge |
| Accuracy | ±0.25%(typical) ±0.5%(Max.) |
| Long stability | ±0.3%F.S/year |
| Temperature Error- Zero | ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa) |
| Temperature Error -Span | ±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa) |
| Operating Temperature Range | -20℃~80℃ |
| Storage Temperature Range | -40℃~120℃ |
| Power supply | 24VDC or 220VAC |
| Output signal | Analog :4～20mA |
| Pressure port | M20×1.5 , G1/2 or customize |
| Relay control | 1～3 way relay AC220V/3A |
| Life of contact point | More than 100000 times |
| Display | -1999～9999 |
| Housing material | 1Cr18Ni9Ti stainless steel |
| Diaphragm material | 316L |
| O ring | Fluororubber |
| Cable | Polyethylene |
| Insulation resistance | 100MΩ 100VDC |
| Protection | IP65 |
Dimension
Ordering information
Ordering note
1. Media must compatible with wetted part.
2. When release order, please mark: power supply, accuracy, number of control point and whether need RS485 interface.
3. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.
4. Special requirement, such as strong shock, moment vibration, strong electromagnetism, radio frequency interference, please consult us.
| KPC100 | Intelligent pressure gauge | ||||||||
| KPC100 | Code | Dimension | |||||||
| 01 | ￠100 profile, Stainless steel body | 2001 | Din connector | ||||||
| 02 | ￠150 profile cast Aluminium housing | 2002 | Direct outlet 1.5 meter | ||||||
| 03 | ￠117 profile explosion-proof housing | ||||||||
| 04 | Aviation connector | ||||||||
| Range | -0.1. . .0～0.01．．．100MPa | ||||||||
| (0-X) KPa or MPa | X: actual range | ||||||||
| Code | Power supply | ||||||||
| D1 | 24VDC | ||||||||
| D2 | 220VAC | ||||||||
| Code | Output signal | ||||||||
| S1 | 4～20mADC | ||||||||
| S2 | 1～5VDC | ||||||||
| S3 | 0～5VDC | ||||||||
| S4 | 0～10mADC | ||||||||
| Code | Output function | ||||||||
| S5 | One-way relay | ||||||||
| S6 | Two-way relay | ||||||||
| S7 | Three-way relay | ||||||||
| S8 | Four-way relay | ||||||||
| S9 | Four-way relay RS485 interface | ||||||||
| S10 | One-way relay switching value output | ||||||||
| S11 | Two-way electron switch value | ||||||||
| Code | Pressure port | ||||||||
| J1 | M20×1.5 Male | ||||||||
| J2 | G1/2 Male | ||||||||
| J3 | G1/4 Male | ||||||||
| J4 | others | ||||||||
| Code | Pressure type | ||||||||
| G | Gauge pressure | ||||||||
| A | Absolute pressure | ||||||||
| S | Sealed gauge | ||||||||
