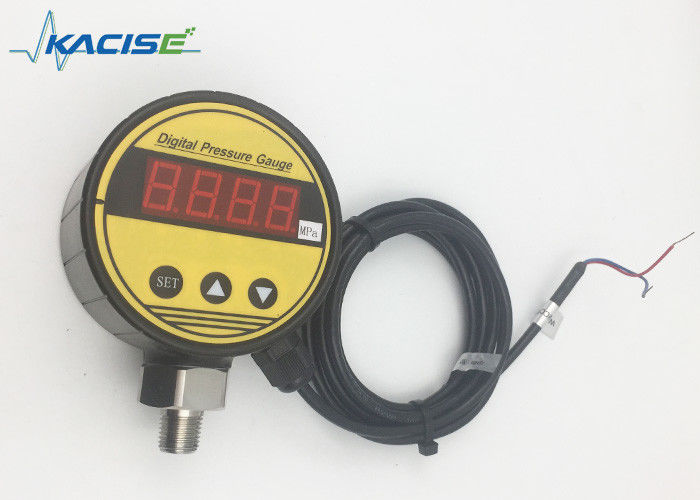

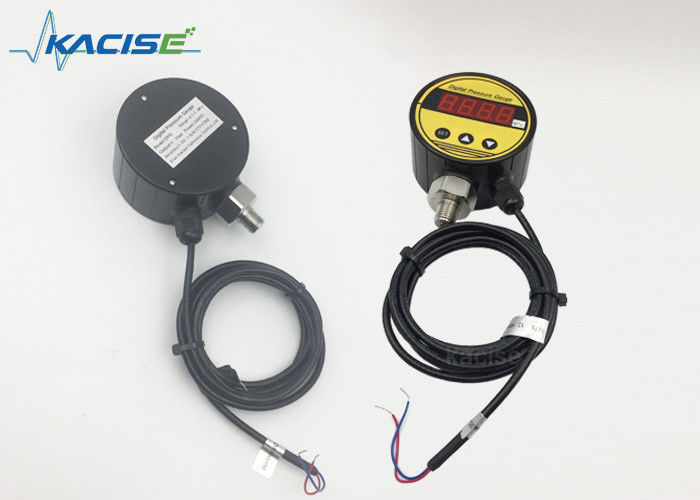

Stainless Steel Precision Digital Pressure Gauge High Accuracy With 4 - 20mA Output

Stainless Steel Precision Digital Pressure Gauge High Accuracy With 4 - 20mA Output

high precision pressure gauge

stainless steel pressure gauge

Place of Origin:

Shaanxi, China (Mainland)

Brand Name:

KACISE

Certification:

CE

Model Number:

DGP

Contact Us
Request A Quote
Product Details
Pressure Range:
0~20MPa
Overload:
150%
Accuracy:
0.5%
Pressure Type:
Gauge Pressure
Stability:
≤0.2%/year
Power Supply:
12~32VDC
Port Material:
Stainless Steel
Installation Thread:
M20*1.5
Display:
LED
Indicating Range:
-1999~9999
Highlight:

high precision pressure gauge

,

stainless steel pressure gauge

Payment & Shipping Terms
Minimum Order Quantity
1 Piece/Pieces
Price
Negotiable
Packaging Details
carton or customers requests available
Delivery Time
5 working days after payment
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
3000 Piece/Pieces per Month
Product Description

High Accuracy Stainless Steel Economic Digital Pressure Gauge with 4-20mA Output


Description



DGP digital pressure gauge is wholly an electronic structure. It adopts high accuracy piezoresistive pressure sensor. After processed by high precision and low temperature drift amplifier, signal output by the sensor enters high accuracy A/D convertor and is converted into digital signal. Digital signal is next calculated and processed by microprocessor. And pressure value is finally indicated by LED display.



DGP intelligent digital pressure gauge is convenient for operation, easy to set, safe and reliable.



Technical Parameters



Measuring range 0~20MPa Accuracy 0.5%
Overload 150% Pressure Type Gauge Pressure
Stability ≤0.2%/year Power Supply 12~32VDC
Display LED Indicating Range -1999~9999
Ambient Temperature -20℃~70℃ Relative Humidity ≤90%

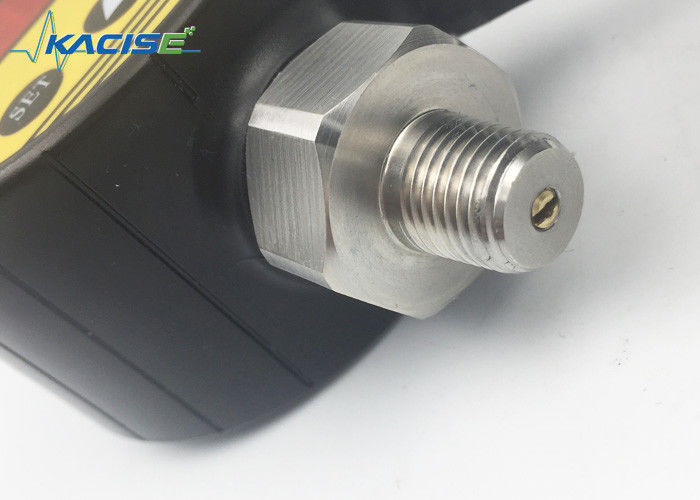

Installation Thread M20*1.5 Port Material Stainless Steel



Features



  • Complete intelligent 2 wires 4-20mA working mode, 4 digits 0.56”LED display.
  • LED highlighting display.
  • Imported ceramic capacitance pressure sensor core.
  • Zero position reset function, parameter batch changing function and panel key changing function to meet different users’ special need.
  • Complete digital calibration, no any movable potentiometer, low temperature drift.
  • Interference proof design. DPG digital pressure gauge can be normally used under bad electromagnetic circumstance.
  • Due to special interference proof design, DPG digital pressure gauge fits for applications of heat supply and frequency conversion constant pressure water supply.
  • Water proof outlet junction. Whole gauge protection grade IP65.



Dimensions

Stainless Steel Precision Digital Pressure Gauge High Accuracy With 4 - 20mA Output 0



Operation



Stainless Steel Precision Digital Pressure Gauge High Accuracy With 4 - 20mA Output 1



  • Wiring

2 wires mode transmitter’s outlet is 2 wires

Red: 24DC+ Black:24-

  • Measurement and Calibration

Standard pressure should be provided when calibration.

  • While zero position standard pressure, long press ▼ key 5 seconds, zero position is calibrated.
  • While full scale standard pressure, long press ▲ key 5 seconds, full scale is calibrated.



Notice



  • Storage and suitable ambient temperature range: -20℃~70℃

relative humidity < 80%

  • When connected to piping, DGP digital pressure gauge should be concentric.



Warranty



Based on users’ abiding to operation and protection regulation, warranty period for 12 months since DGP digital pressure gauge is sent from Kacise.
