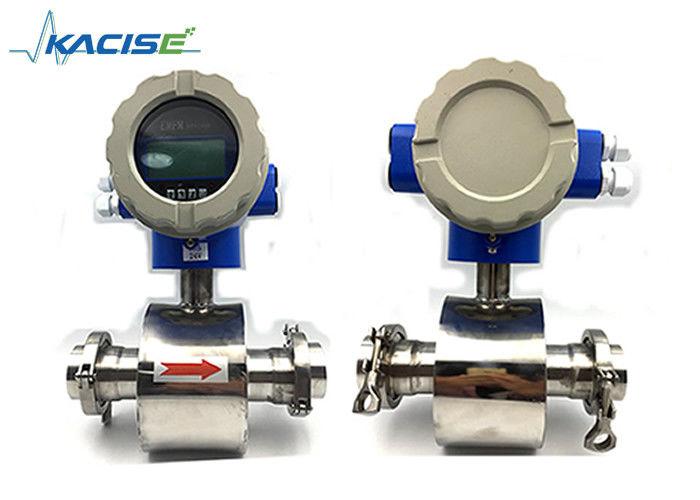

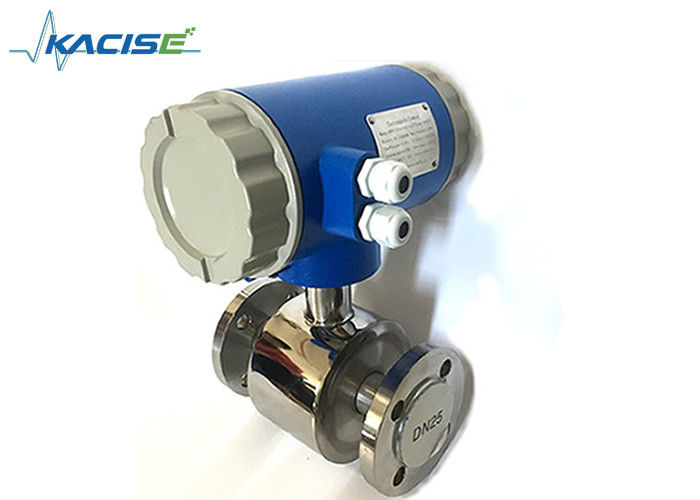

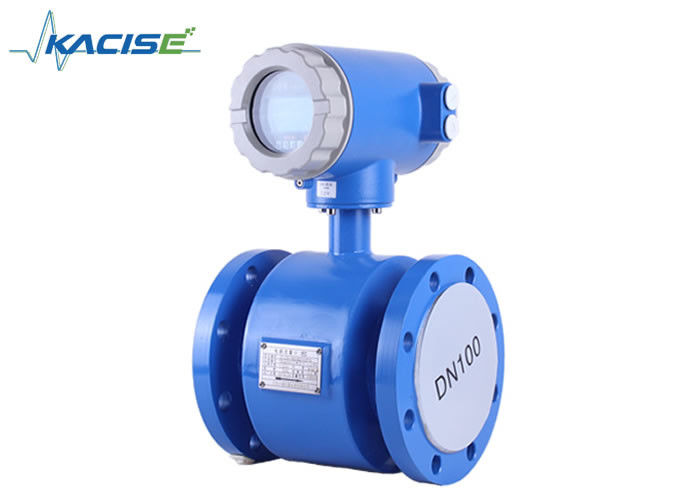

RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy

RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy

  • RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy
  • RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy
  • RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy
  • RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy
RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: ISO / CE
Model Number: KEF Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) Medium: Milk, Beer, Drink, Water, Fruit Juice
Temperature: -20°C - +160 °C Power Supply: 24VDC, 220VAC
Liner: PTFE ,Rubber, F46, PF Accuracy: ±0.2% (Customize), ±0..5% (Standard)
Electrode: SUS316,HC,HB,Titanium, Tantalum, Etc. Output Signal: 4~20mA / RS-485/ Hart / PROFIBUS DP
Installation: Flange, Clamping, Thread
High Light:

electromagnetic water flow meter

,

smart water flow meter

RS485 Insurstial Waste Water Treatment Electromagnetic Flow Meter Water Milk Beer Drink Water Flow Meter





Introduction


Electromagnetic flow meter can realize local indication and output electrical current signal of 4-20mA which can be used to record, adjust and control. Electromagnetic flow meters are widely used in industrial sectors such as chemical industry, environmental protection, metallurgy, pharmaceutical, paper making, water supply and removal etc.
Besides measuring flow of general conductive liquid electromagnetic flow meter can measure flow of liquid-solid mixed fluid, high-viscosity fluid and salt, strong acid and strong alkali.



Features



1. Simple structures, firm, no movable parts and long operation life.

2. No intercepting fluid parts, no pressure loss and fluid clogging.

3. No mechanical inertia, quick response and good stability, application in automatic examination, adjustment & controlling.

4. Measuring accuracy not influenced by physical parameters such as style, temperature, viscosity, density and pressure.

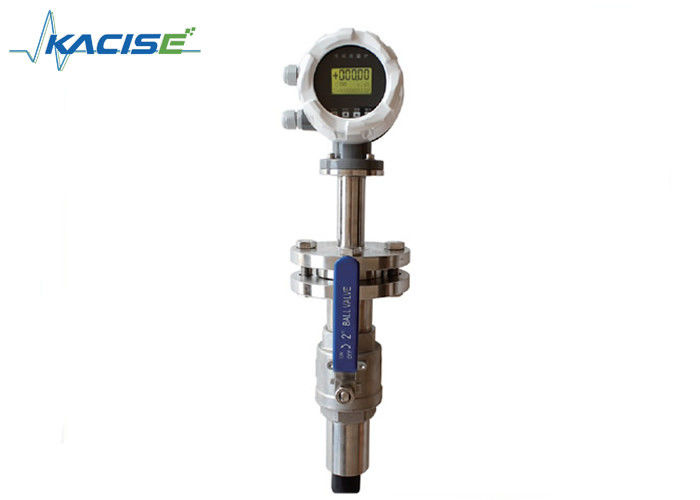

6. Supply many styles of flow meters such as inline type and insertion type, etc.Adopt EEPROM memory to measure operation data, safe and reliable protection of memory.

7. High pressure sensor with PFA liner is resistant to high pressure and negative pressure, and available to chemistry and corrosive solution.

8. It is applicable not only to general process, but also in tough applications such as mining, papermaking, pastry, etc.



Parameters

Main power AC220V 50HZ / DC24V
Power consumption <15W (And set with sensor supporting power consumption )
Display and push buttons The big screen LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as alarm display ,four thin-film touch nubs ,which is used to data set .
Accumulator Forward total quantity ,reverse total quantity



















Output signal



Analog output

Bi-direction with two ways ,Isolation 0-10mA/4-20mA
Load resistor:0-10Ma;0-1.5KΩ;4-20Ma;0-750Ω
Frequency output Forward & reverse flow output with frequency range set between 1-5000Hz.The external voltage must be lower than 35V and the max output and the max output current is 50Ma when the transistor is turned on





Alarm output

Two outputs from the collectors of photoelectric isolate transistors are for alarm signals .The external voltage must be lower than 35V and the max output current is 250Ma when the transistor is turned on.Alarm status:Activates when the measured pipes are empty ,the excitation circuits are broken or the volume of flow rate exceeds the value designed limits.







Pulse output

For pulse output in forward and reverse flow measurement ,upper frequency of pulse output can be up to 5000 CP/S relevant value of pulse is from 0.0001 to 1.0 M3/P .The width of pulse can be set to 20ms or squired wave from automatically.The collector of transistor with photoelectric is open circuited.The external voltage must be lower than 35 V and maximum output current is 250Ma when the transistor is turned on .
Accuracy ±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Damping time constant Continuous variable from 0-100 s (90%)can be selected by group
Communication RS232 ,RS485 or HART Communication are selectable ,with lighting resistance
Power failure An anti-failure clock is designed in the flow meter which can save the power failure records for 16 times (10 years)
Protection class IP65
Ex-proof Mark Exd IIBT4



Electrode Material

Item  Suitable medium
SS316L Living water; wastewater; Corrovise water and Mud, etc;
Hastelloy B Non-oxidizing acids at concentrations less than 10%; NAOH Concentrations less than 50%
Hastelloy C Mixed Acid and Oxidizing salts
Titanium Salt and weak acid ;Not application; hydrochloric acid, nitric acid and other reducing acids
Tantalum hydrochloric acid(<40%);Sulfuric acid and Other oxidizing acids
Plantinum Almost all acid-base salt solution But not application for aqua regia, except ammonium salt
Tungsten carbide Pulp ;sewage ;slurry























RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy 0

Model selection



RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy 1



Application

RS485 Insurstial Wastewater Flow Meter , Magnetic Type Flow Meter High Accuracy 2
