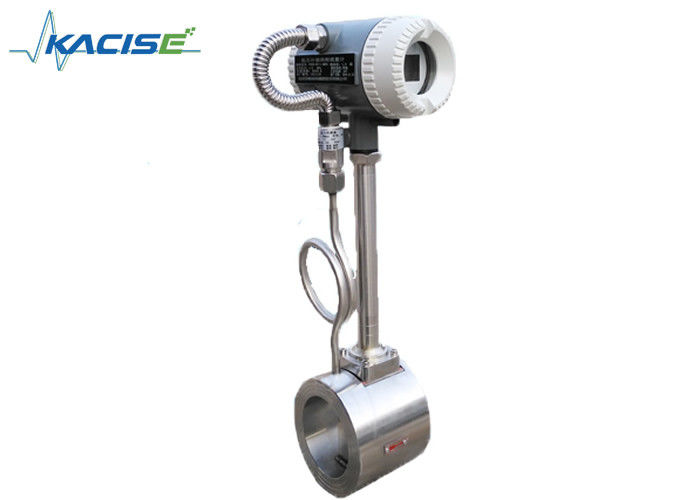

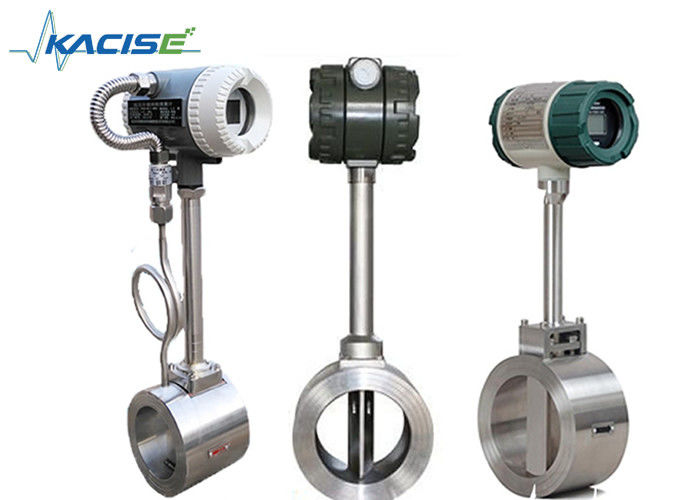

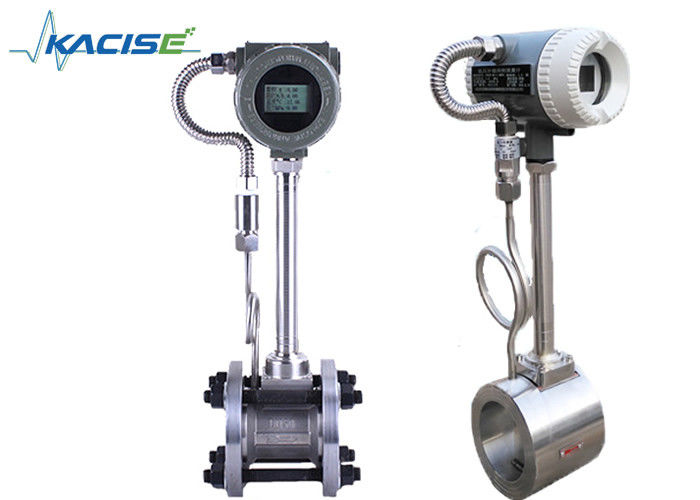

Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification

Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification

  • Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification
  • Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification
  • Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification
  • Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification
Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification
Product Details:
Place of Origin: China
Brand Name: KACISE
Certification: ISO / CE
Model Number: KVF Series
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: Carton / Wooden box
Delivery Time: 7 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) Diameter: DN15 ~ DN1800
Temperature: -20°C - +160 °C Power Supply: 24VDC, 220VAC
Communication: RS-485 / MODBUS , HART Accuracy: ±1.0% (Standard)
Output Signal: 4~20mA Installation: Flange, Clamp On, Thread, Insertion
High Light:

vortex steam flow meter

,

insertion type flow meter

Factory Export Air Flow Meter Steam Vortex Flow Meter Compressed Air Flowmeter Flange Clamp Vortex Flow Meter



Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification 0



Introduction



Vortex flowmeter is based on the principle of Karman vortex research and production, mainly for industrial pipe flow measurement fluid medium, such as a gas, liquid, steam and other media. It features a small pressure loss, large measuring range, high accuracy in the measurement of actual volume flow is hardly affected by fluid density, pressure, temperature, viscosity and other parameters. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be long-term stability. Vortex flowmeter piezoelectric stress sensors, high reliability, can work within the operating temperature range of -20 ℃ ~ + 250 ℃ for. Standard analog signals, digital pulse signal output, easily with computers and other digital systems supporting the use of a more advanced and ideal measuring instruments.



Features



1. Detecting element does not touch with flow medium, with high reliability and strong flexibility for medium
2. No moving parts, wear resistance, structure is simple and fastness
3. Assemble with anti-interference circuit and anti-vibration sensors, which could ensure anti-vibration performance of the product.
4. The allowed working temperature is wide from -40℃ to +350℃
5. Wide range, High accuracy
6. Pulse signal output or two-wire system 4-20mA current signal output



Parameters



Pipe Diameter DN15~DN1800
Meter Materials 1Cr18Ni9Ti
Nominal pressure (Mpa) 1.6Mpa; 2.5Mpa; 4.0Mpa
Measured medium temperature (℃) -40~+250℃; -40~+350℃
Environmental conditions Temperature:-10~+55℃, humidity 5%~90%, pressure: 86~106Kpa
Accuracy class liquid: reading ±0.5
Measuring gas or steam: reading±1.0,±1.5
Turndown ratio 1:10;1:15
Pressure loss coefficient Cd<2.6
Output signal 4-20mA or Pulse
Power supply

sensor: +12VDC, +24VDC

transmitter: +24VDC

On site display: 3.2V battery

Signal transmission lines STVPV3×0.3(three-wire), 2×0.3(two- wire)
Installation Integrated clamping flange or flange connection
Transmission distance ≤500m
Signal line interface Male threadM20×1.5
Explosion levels ExdIIBT6
Protection class IP65
Allow vibration acceleration 1.0g



Model selection



KVF                     Parameters
Nominal diameter DNXX                   DN15~DN1800 (mm)
Structure F                 Remote type with display
Y                 Compact type with display
Accuracy A               Pipe type: Class 1.0
B               Insertion type: Class 2.5
Nominal pressure 16             1.6Mpa
XX             Customization
Max. temp. of medium M           <250℃
H           >250℃
Other function P         With pressure compensation
T         With temperature compensation
PT         With pressure and temperature compensation
Power 1       12~28VDC
2       85~265VAC (Remote display)
3       3.6V lithium battery (on site display)
Output A     4-20mA
M     Voltage pulse
H     HART
R1     RS232
R2     RS485
Installation 1   Flange
2   Clamp flange
3   Insertion
4   Thread
5   Clamp
Explosion proof A No explosion proof
B Intrinsic explosion proof
G Flame proof



Application

Air / Steam Vortex Flow Meter High Accuracy DN15 - DN1800mm ISO Certification 1
