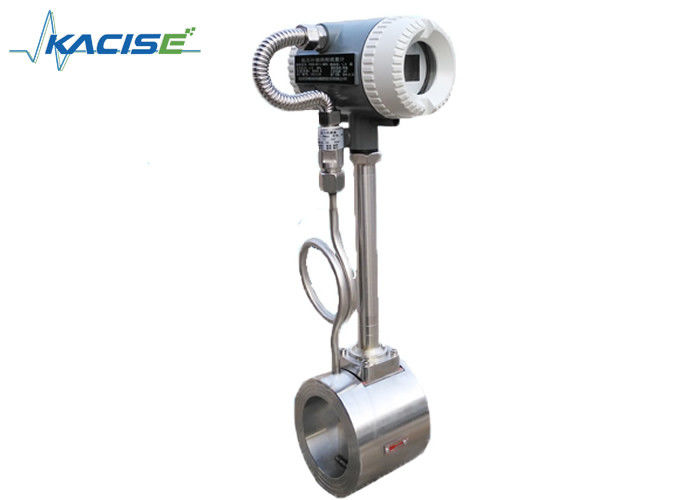

Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation

Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation

    • Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation
    • Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation
    • Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation
    • Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation
  • Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation

    Product Details:

    Place of Origin: China
    Brand Name: KACISE
    Certification: ISO / CE
    Model Number: KVF Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1pc
    Price: Negotiable
    Packaging Details: Carton / Wooden box
    Delivery Time: 7 Working days
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Contact Now
    Detailed Product Description
    Pressure: 1.6 Mpa ,2.5Mpa ,4.0Mpa (Special) Diameter: DN15 ~ DN1800
    Temperature: -20°C - +160 °C Power Supply: 24VDC, 220VAC
    Communication: RS-485 / MODBUS , HART Accuracy: ±1.0% (Standard)
    Output Signal: 4~20mA Installation: Flange, Clamp On, Thread, Insertion
    High Light:

    compressed air flow meter

    ,

    vortex steam flow meter

    Industrial Saturated Steam Gas Vortex Flow Meter Steam With Temperature And Pressure Compensation



    Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation 0

    Introduction



    Vortex flowmeter is based on the principle of Karman vortex research and production, mainly for industrial pipe flow measurement fluid medium, such as a gas, liquid, steam and other media. It features a small pressure loss, large measuring range, high accuracy in the measurement of actual volume flow is hardly affected by fluid density, pressure, temperature, viscosity and other parameters. No moving mechanical parts, so high reliability and low maintenance. Instrument parameters can be long-term stability. Vortex flowmeter piezoelectric stress sensors, high reliability, can work within the operating temperature range of -20 ℃ ~ + 250 ℃ for. Standard analog signals, digital pulse signal output, easily with computers and other digital systems supporting the use of a more advanced and ideal measuring instruments.



    Features



    1. Detecting element does not touch with flow medium, with high reliability and strong flexibility for medium
    2. No moving parts, wear resistance, structure is simple and fastness
    3. Assemble with anti-interference circuit and anti-vibration sensors, which could ensure anti-vibration performance of the product.
    4. The allowed working temperature is wide from -40℃ to +350℃
    5. Wide range, High accuracy
    6. Pulse signal output or two-wire system 4-20mA current signal output



    Parameters



    Pipe Diameter DN15~DN1800
    Meter Materials 1Cr18Ni9Ti
    Nominal pressure (Mpa) 1.6Mpa; 2.5Mpa; 4.0Mpa
    Measured medium temperature (℃) -40~+250℃; -40~+350℃
    Environmental conditions Temperature:-10~+55℃, humidity 5%~90%, pressure: 86~106Kpa
    Accuracy class liquid: reading ±0.5
    Measuring gas or steam: reading±1.0,±1.5
    Turndown ratio 1:10;1:15
    Pressure loss coefficient Cd<2.6
    Output signal 4-20mA or Pulse
    Power supply

    sensor: +12VDC, +24VDC

    transmitter: +24VDC

    On site display: 3.2V battery

    Signal transmission lines STVPV3×0.3(three-wire), 2×0.3(two- wire)
    Installation Integrated clamping flange or flange connection
    Transmission distance ≤500m
    Signal line interface Male threadM20×1.5
    Explosion levels ExdIIBT6
    Protection class IP65
    Allow vibration acceleration 1.0g



















































    Model selection



    KVF                     Parameters
    Nominal diameter DNXX                   DN15~DN1800 (mm)
    Structure F                 Remote type with display
    Y                 Compact type with display
    Accuracy A               Pipe type: Class 1.0
    B               Insertion type: Class 2.5
    Nominal pressure 16             1.6Mpa
    XX             Customization
    Max. temp. of medium M           <250℃
    H           >250℃
    Other function P         With pressure compensation
    T         With temperature compensation
    PT         With pressure and temperature compensation
    Power 1       12~28VDC
    2       85~265VAC (Remote display)
    3       3.6V lithium battery (on site display)
    Output A     4-20mA
    M     Voltage pulse
    H     HART
    R1     RS232
    R2     RS485
    Installation 1   Flange
    2   Clamp flange
    3   Insertion
    4   Thread
    5   Clamp
    Explosion proof A No explosion proof
    B Intrinsic explosion proof
    G Flame proof

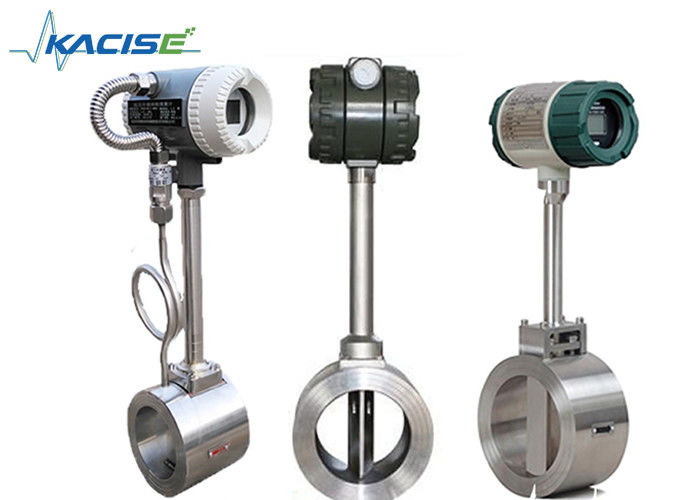

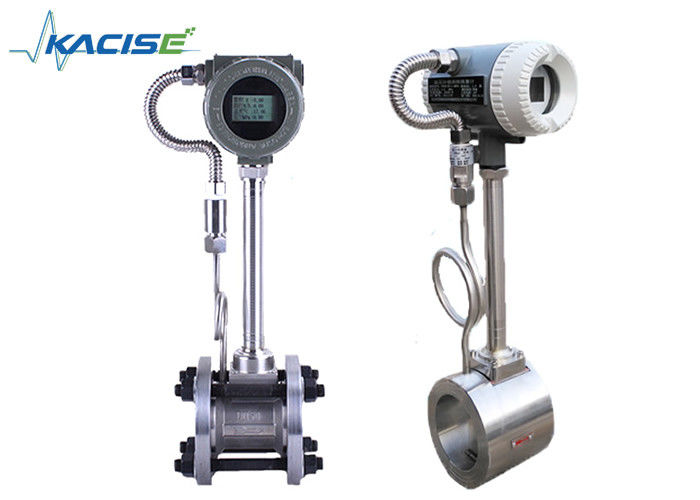

    Production

    Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation 1



    Package

    Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation 2

    Application

    Industrial Saturated Steam Gas Vortex Flow Meter With Temperature / Pressure Compensation 3
