    Product Details:

    Place of Origin: China
    Brand Name: Kacise
    Certification: CE
    Model Number: GXPS200

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Price: USD
    Packaging Details: Standard export packing carton
    Payment Terms: L/C, D/A, D/P, T/T, Western Union
    Contact Now
    Detailed Product Description
    Electrical Performance: 2 Or 3 Line Pressure Range: 0~0.2MPa......60MPa
    Medium Compatibility: All Caustic Medium Compatible With 1Cr18Ni9Ti Output Signal: 4~20mA 0~10V
    Power Supply: 10~30Vdc Pressure Type: Gauge ,S
    High Light:

    high accuracy pressure sensor

    ,

    piezoresistive pressure transmitter

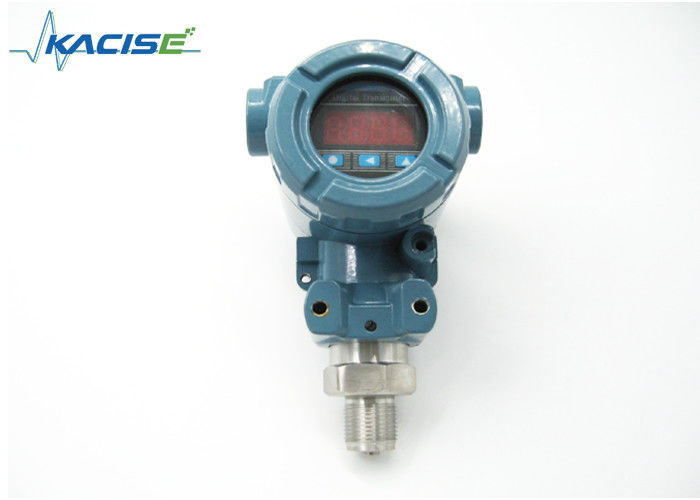

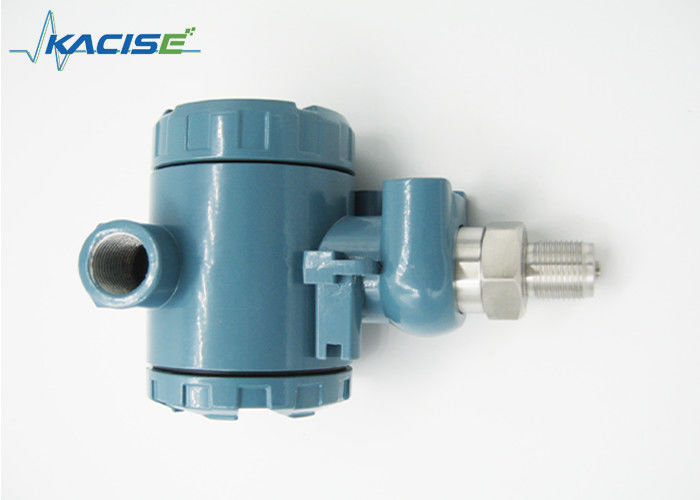

     GXPS200 Various Connector and Pressure Tap Piezoresistive Explosion-proof Pressure Transmitter

    Introduction

    GXPS200 Series pressure transmitter is an intrinsically safe explosion-proof and isolation explosion-proof products, which is cost-effective. Widely used in gas, liquid pressure testing, such as water, oil, mildly corrosive liquids and gases.
    The material of this product is stainless steel to lead head, pressure cores used internationally renowned brands, dedicated V / I conversion to electrical appliances, and can facilitate its zero and full scale calibration. Get intrinsically safe explosion-proof certification, isolation explosion-proof certification, CE certification etc..
    It can be easily calibrated for zero and full scale.
    With buffer connector to prevent water hammer or impact of the range of 5 to 10 times.


    Feature


    • Accuracy: 0.5%F.S
    • Alarm device available
    • Anti pressure impact flexible coupling
    • Multi pressure range and output signal
    • Various connector and pressure tap
    • Non-polarity 2 line current output
    • Intrinsically safe explosion-proof
    • Isolation explosion protection
    • CE certificate


    Electronic interface and signals definition


    Accurate Piezoresistive Pressure Sensor , Explosion Proof Pressure Transmitter 0Accurate Piezoresistive Pressure Sensor , Explosion Proof Pressure Transmitter 1

    Parameter


    Spec.Value
    Pressure range

    0~0.2MPa......60MPa
    PSI: 0~20PSI…8700PSI
    BAR : 2BAR….600BAR
    MMH2O: 0~0.02mmHg…6mmHg
    Atm: 0~1,97atm….590atm
    InchHg: 0~59mmHg… 18k mmHg

    Overload pressure2times nominal value (2X)
    Secondary containment3times nominal value (3X)
    Accuracy±0.5%F.S(higher accuracy can choosePT300 or MARS)
    StabilityTypical value 0.25%F.S, Max. value: 0.4%F.S
    Operating temperature-40°C~85°C
    Compensation temp.-10°C~70°C
    MediumAll Caustic Medium Compatible with 1Cr18Ni9Ti
    Electrical performance2 line3 line
    Output signal4~20mA0~5V1~5V0.5~4.5V0~10V
    Power supply10~30Vdc8~30Vdc5V(ratio)11~30Vdc
    Load resistance(U-10)/0.02(Ω)>20kΩ
    Insulation>100M Ω@50V
    Electric strength500V@60 second
    Vibration/Impact10g/5~2000Hz, axes X/Y/Z20g sine 11ms
    Pressure durable2×106pressure cycle @25℃
    Display range-9999~99999@PT200C
    Electrical connectionWaterproof cable, protection gradeIP65
    Pressure tapM20×1.5, G1/2, R1/4, NPT1/2
    Pressure typeGauge ,SResponse time: 10ms
    Certificate Programsexplosion proof type D, CE
    EMCEMI : EN50081-1/-2; EMS: EN50082-2


    Application

    ☆ Display indicator available
    ☆ Constant pressure water supply system
    ☆ Compressed natural gas
    ☆ Four remote running water system
    ☆ Central air-conditioning
    ☆ Automatic Testing System
    ☆ Oil well Real-time Management
    ☆ Duck, tank pressure measurement
    ☆ Heating boiler system


    Ordering information


    GX-Type—Range—Output—Power—Pressure port – Connection – Cable length—Package

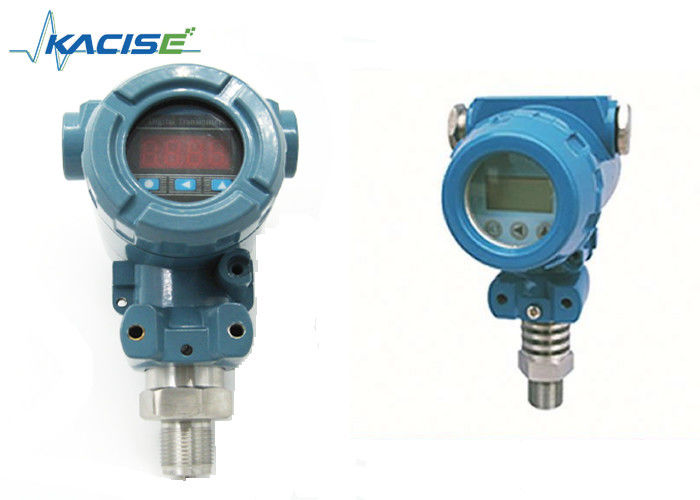

    1. Type:PS200=conventional, PS200C=with display, PS200D=isolation explosion proof, PS200T=with cooling Ring
    2. Range: 0~0.2…60MPa, 0~2bar…600bar
    3. Output:: 4~20Ma, 0~5Vdc, 0.5~4.5Vdc, 1~5Vdc,0~10Vdc
    4. Power: 5V, 24Vdc, 6~24Vdc, 10~30Vdc, 11~30Vdc
    5. Pressure port: M20×1.5, G1/2, R1/2, NPT1/2
    6. Connection: Wjc=waterproof cable outlet
    7. Cable length: XXm=__ __meter
    8. Package: Bb, Foam 1pc/box, or customized available
    9. Case: A=PS200A (default), B=PS200B (thermostability type), C=PS200C
