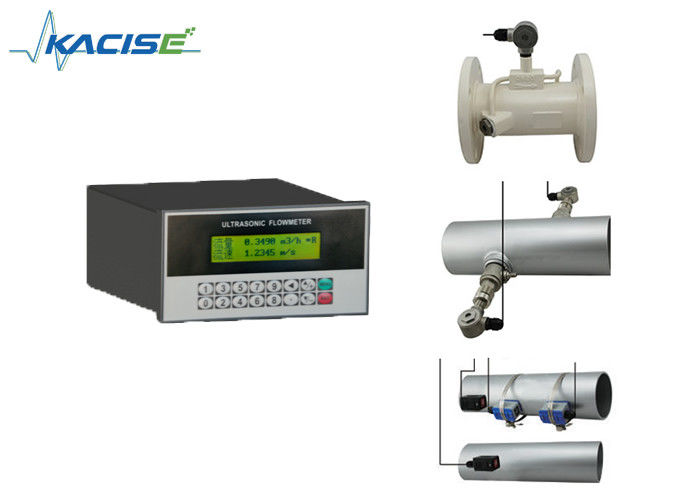

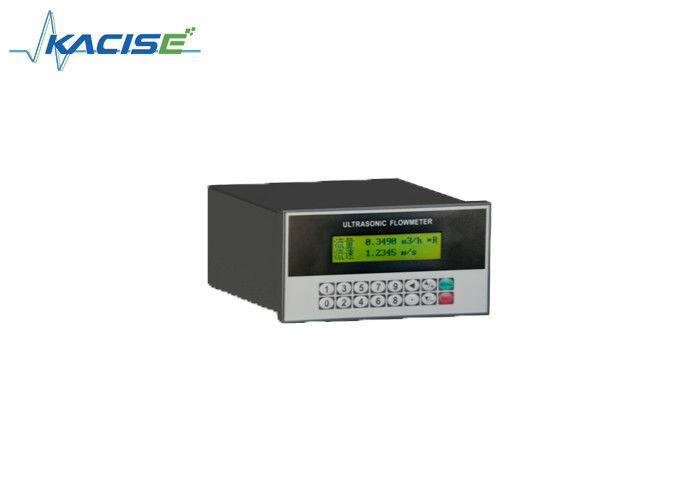

Panel Mounted Ultrasonic Flow Meter with Double Power Supply RS485 Communication and 15~6000mm Pipe Diameter

Host part

Principle

Ultrasonic time gap

Accuracy

±1%

Display

2×20 character LCD with backlight, support the language of Chinese, English and Italy Convertor dimension:170*180*56cm

Signal output

1 way 4~ 20mA output, electric resistance 0~ 1K,accuracy0. 1%

1 way OCT pulse output( Pulse width 6 ~ 1 0 0 0 ms,default is 2 0 0 ms)

1 way Relay output

Signal input

3 way 4~ 20mA input, accuracy 0. 1%,acquisition signal such as temperature, press and liquid level

Connect the temperature transducer Pt100, can finish the heat/energy measurement

Data interface

Insulate RS485 serial interface, upgrade the flow meter software by computer, support the MODBUS, METER-BUS etc.

Cable

Twisted-pair cable, generally, the length under 50 meters;
Select the RS485 communication. The transmission distance can over 1000m.

Pipe Condition

Pipe material

Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed.

Pipe Diameter

15~6000mm

Straight length pipe

Transducer installation should be satisfied: upstream10D, downstream 5D, 30D from the pump.

Medium

Type of Liquid

Water, sea water, waste water, oil, chemicals (alcohol, acids, etc.), plant effluent and other liquids

Temperature

-30~160°C

Turbidity

10000pm not so much baubles

Flow speed

0~±10m/s

Environment

Temperature

Host: -20~60°C; Sensor: -30~160°C

Humidity

Host: 85%RH; Flow sensor: IP68, less than 2m under water

Power supply

DC8~36V or AC85~265V( optional)

Consumption

1.5W
