Place of Origin:
China
Brand Name:
Kacise
Certification:
CE
Model Number:
GXPS210A /210B
Document:
Introduction

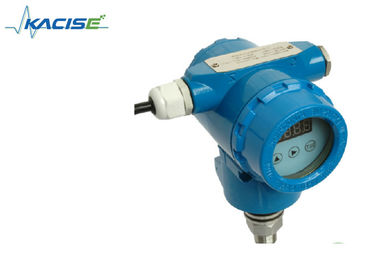

GXPS210A Pressure transmitter is facing pressure testing of the digital output pressure test equipment, It periodic measurement field stress and displayed in the cabin LED screen, And according to epistatic machine instruction will pressure value through the RS485 communication interface transmission to the computer. GXPS210B pressure transmitter is in the GXPS210A at the same time on the basis of measuring the pressure power conversion into 4-20 ma current signal output
Feature
☆ LED screen
☆ RS485 digital output
☆ Temperature compensation
☆ Whole temperature range accuracy 0.25%
☆ Support network control and locale control
☆ Digital output with current output
Electronic interface and signals definition
Parameter
| Specification | Value | |
| PS210A | PS210B | |
| Measuring range |
0～0.2MPa...100MPa PSI: 0~20PSI…14000PSI BAR : 2BAR….1000BAR 20000mmH2O…10197000mmH2O Atm: 0~1,97atm….986atm InchHg: 0~59inchHg… 29500inchHg |
|
| Power supply | 10～30VDC | |
| Digital output | RS485 | |
| Static working current | <15mA | |
| Composite accuracy | 0.25% | |
| Electrical Performance | 3- wire system | |
| Analogue output signal | 4～20mA | |
| Display | LED | LED |
| Stability | 0.2%F.S/year | |
| Pressure type | Gauge pressure G, Absolute pressure A | |
| Compensate temperature | -25～85℃ | |
| Working temperature | -40～85℃ | |
| Over load capacity | 150% | |
| Pressure tap | M20X1.5, G1/4, G1/2, NPT1/2 | |
Application
☆ Hydrological test
☆ Geological exploration
☆ Petrochemical industry
☆ Mining machinery
☆ Chemical metallurgy
Ordering information
GX-Type-Range-Output-Power-Pressure port- Electrical connection--Cable length-Package
Type : 210A=RS485 output 210B=RS485+4~20Ma output, RSV=Reserved
e.g. GXPS210-2.5m-A-0.5-DC24-T-5m-Foam
PS450 with Piezoelectric capacitance ceramic core, test range is 0-2.5mH2O,24Vdc power supply 4-20mA output, submersible type with 5m cable, foam packaged.
