Waterproof Ultrasonic Water Flow Meter / Flowmeter Compact Fixed On Pipe Type

Waterproof Ultrasonic Water Flow Meter / Flowmeter Compact Fixed On Pipe Type

    • Waterproof Ultrasonic Water Flow Meter / Flowmeter Compact Fixed On Pipe Type
    • Waterproof Ultrasonic Water Flow Meter / Flowmeter Compact Fixed On Pipe Type
  • Waterproof Ultrasonic Water Flow Meter / Flowmeter Compact Fixed On Pipe Type

    Product Details:

    Place of Origin: China
    Brand Name: KACISE
    Certification: CE
    Model Number: KUFF2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: one carton for one set
    Delivery Time: 3-5 work days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 1000 sets per month
    Contact Now
    Detailed Product Description
    Power Supply: DC8~36V Or AC85~265V Pipe Diameter: DN15~6000mm
    SD Card: Optional Pipe Material: Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed
    Output: 4-20mA, OCT Pulse, Relay Communation: RS485 Modbus
    Medium: Water, Sea Water, Sewage, Oil, Chemicals , Alcohol, Milk, Beer, Wine, Etc
    High Light:

    portable clamp on flow meter

    ,

    ultrasonic liquid flow meter

    Waterproof Compact Fixed On Pipe Type Ultrasonic Flow Meter / Flowmeter







    Introduction



    Transit time ultrasonic flow meters measure the difference in time from when an ultrasonic signal is transmitted from the first transducer until it crosses the pipe and is received by the second transducer. A comparison is made of upstream and downstream measurements.

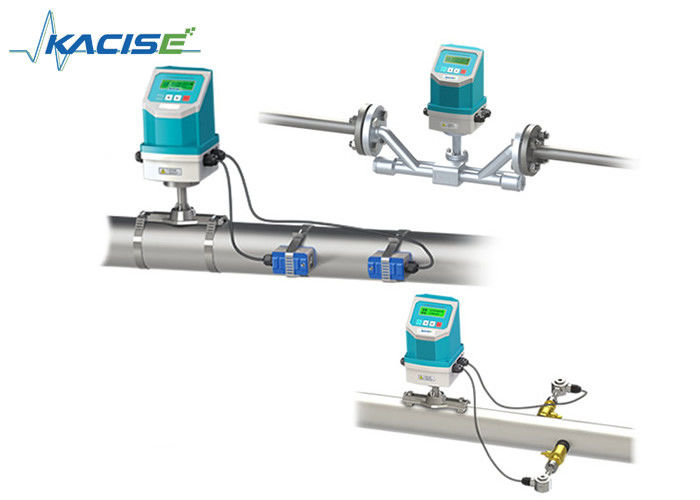

    KUFF2000 series ultrasonic flow meter usually is used in long-term measurement at field. It has three types of sensor to measure the pipe flow: clamp on type, insertion type and inline pipe type. And it can measure heat if adding temperature sensor.

    Clamp on type: The sensors clamp on to the outside of pipes and do not come in contact with the internal liquid. No need to make any holes on the pipe. And all the models can become energy meters when connecting to temperature sensors.

    Insertion type: Only two installation holes are needed on the pipe, user can install the insertion type sensors. By using the hole making tool, the no stop flow installation can be realized. Sensors contact to the fluid directly, the measurement is stable and reliable.

    Inline pipe type: DN15-32 pipes uses π shape inline pipe sensor, DN40 and above uses standard inline pipe sensor. The inline sensors has the advantages of low starting flow rate, high measurement accuracy and no pressure loss.



    Features

    • 1% accuracy.
    • Wide range for various application fields. (DN15-DN6000)
    • No mechanical drive in ultasonic flowmeter, parts are rarely damaged. Maintenance free and long operating life.
    • Easy and quick installation. Save time with no pipe cutting or process shutdown.
    • No obstruction measurement, no pressure loss.
    • Connect Pt100 temperature transducer, can finish the heat/energy measurement.

    Specification



    Accuracy ±1%
    Velocity Range 0~±10m/s, Bi-directional measurement
    Pipe Size DN15~DN6000
    Temperature - 30~160℃
    Type of Liquid Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc
    Pipe Material

    Carbon steel, stainless steel 304, stainless steel 316.

    Flange standard GB/T9119-2000, GB/T81-94

    Signal Output

    1 way 4-20mA output(impedance 0~1K, accuracy 0.1%)

    1 way OCT pulse output( Pulse width 6 ~ 1000ms)

    1 way relay output

    Signal Input 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
    Interface RS485, support MODBUS
    Data Storage SD card regularly store the pre-set results (optional)
    Power Supply

    DC8~36V or AC10~30V (AC85~264 available by adapter)
