| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE / ISO / Explosion-proof |
| Model Number: | KTF |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton / Wooden Box |
| Delivery Time: | 5~8 working days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs |
| Medium: | Diesel, Oil, Liquid, Diesel Fuel, Oil, Pure Water,food,oil | Pressure: | 1.6MPa;2.5MPa;4.0MPa;6.4M |
|---|---|---|---|
| Installation: | Thread ;Pipe;Remote;Insertion,Flange | Communication: | RS-485 /MODBUS |
| Accuracy: | 1.5% /1.0% | Output: | HART /4-20mA /RS485 /Pulse |
| Material: | Stainless Steel/SS316L /316 | Power Supply: | 12-24VDC /3.6V Lithium Battery |
| DN (mm): | 25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300 | ||
| High Light: | diesel fuel flow meter,explosion proof flow meter |
||

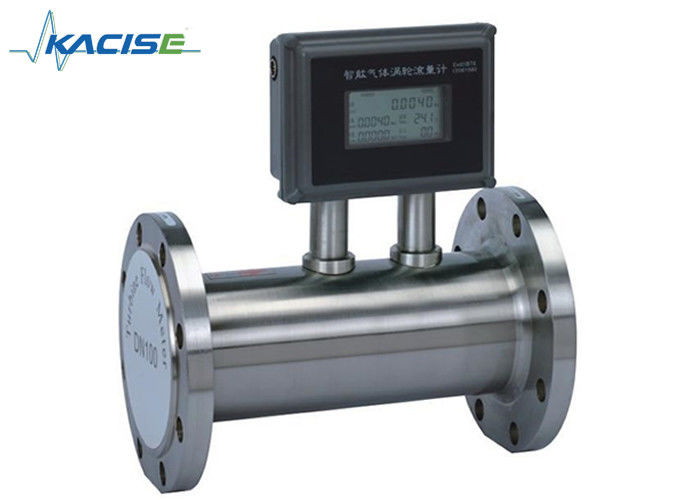

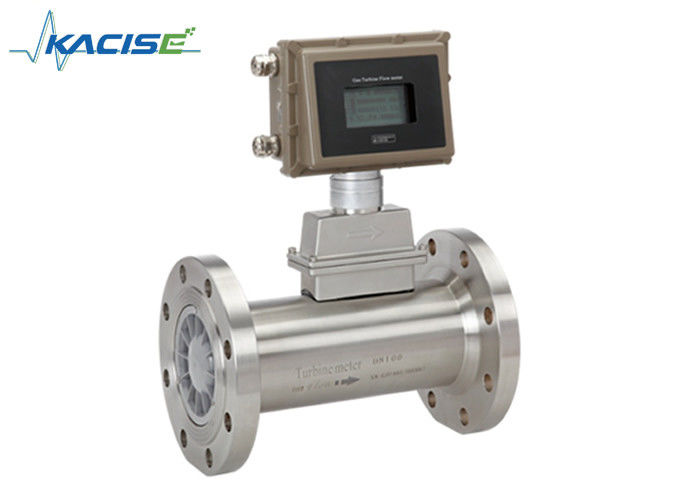

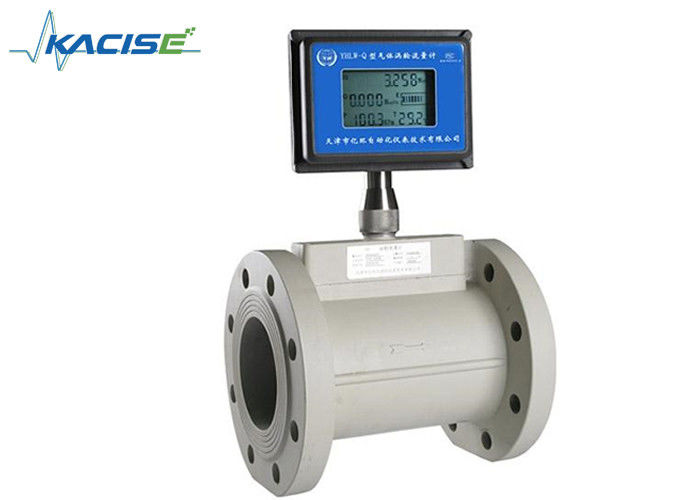

High precision LPG Flowmeter Natural Gas Flowmeter Cooking Gas flowmeter Dual Power Supply Turbine Flow Meter
Description
Turbine flowmeter is a kind of velocity flowmeter with temperature and pressure compensation function. It belongs to one kind of velocity flowmeter. Its working principle is as follows: the power of flowing fluid drives the turbine blade to rotate, and its rotation speed is approximately proportional to the volume flow rate. Turbine flowmeter is widely used in petroleum, chemical industry, electric power, gas pipe network, urban gas and other fields, and is widely used in trade settlement because of its high measuring accuracy, good repeatability and stability, wide range, rapid response to flow changes, strong anti-interference ability, easy signal transmission and other characteristics.
The operation of the KTFG series Gas Turbine Meter is based on the measurement of the velocity of gas. The flowing gas is accelerated and conditioned by the meters straightening section. The straightening vanes prepare the gas flow profile by removing. undesired swirl, turbulence and asymmetry before the gas flows to the turbine wheel. The dynamic forces of the flowing fluid cause the rotor to rotate.
The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.
KTFG series gas turbine flow meter is widely used for measurement of natural gas, coal gas, liquefied gas and light hydrocarbon gas, etc.
Features
☆ Dedicated instrument for gas measurement
☆ Dedicated instrument for oil & gas recycle system
☆ High accuracy: ±1.5%, ±1.0% or ±0.75%
☆ Good repetitiveness
☆ Test temperature, pressure and flow of measured gas; automatic tracking and compensation of flow; indication of gas total volume under standard status; real-time query of temperature, pressure, time and date, etc.
☆ Built-in pressure & temperature sensor, high safety performance, compact structure & beautiful outlook
☆ Low power consumption, more than 3 years service life for one 3V 10AH lithium cell
☆ Instrument factor, total flow value kept for 10 years after power off
Specifications
|
Parameters |
Description |
|
|
DN (mm) & Connection |
25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300 flange connection 25, 40 thread connection |
|
| Accuracy | ±1.5%, ±1.0% or ±0.75% (need special order) | |
| Range ratio | 1:10; 1:20; 1:30 | |
|
Instrument Material |
Body: SS304; Impeller: anti-corrosive ABS or high-quality aluminum alloy; Indicator: cast aluminum |
|
| Medium Temperature ( ℃) | -30 ℃ ~ +80 ℃ / -86°F ~ +176°F | |
|
Ambient Conditions |
Temperature:-20℃~ +60℃ / -68°F ~ +140°F Relative humidity: 5% ~ 90%, Atmospheric pressure: 86 ~ 106 KPa |
|
|
Output Signal |
Sensor: pulse frequency signal, low level less than 0.8V, high level more than 8V Transmitter: two wire 4-20mA DC current signal |
|
|
Power Supply |
Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell |
|
| Signal Transmission Line | STVPV3×0.3 (3 wire), 2×0.3 (2 wire) | |
| Transmission Distance | No more than 1000 m | |
| Signal Line Interface | M20×1.5(F) | |
| Explosive-proof Grade | ExdIIBT6 | |
| Protection Level | IP65 | |
Ordering information
Model should be selected according to nominal pressure, medium max pressure, medium temperature, medium components, flow range and signal output.
Working flow range should be (20% to 80%) Qmax.
Standard signal output: pulse signal (ws) output 3 wire, standard flow signal (IC card) output or RS485
communication output; please specify when ordering.
| Model | Remarks | ||||||
| KTFG | |||||||
|
Type |
N | Sensor type: +12V or 24V, output 3 wire pulse signal | |||||
| A | Transmitter type: +24V, output 2 wire 4-20 mA | ||||||
| B | Smart type: lithium cell, local indication without output | ||||||
| C | Smart type: +24V, local indication, output two wire 4-20mA | ||||||
|
S |
Smart type: T & P compensation integrated, local indication with remote signal | ||||||
|
DN |
25 | DN 25 mm | |||||
| 40 | DN 40 mm | ||||||
| 50 | DN 50 mm | ||||||
| 65 | DN 65 mm | ||||||
| 80 | DN 80 mm | ||||||
| 100 | DN 100 mm | ||||||
| 125 | DN 125 mm | ||||||
| 150 | DN 150 mm | ||||||
| 200 | DN 200 mm | ||||||
| 250 | DN 250 mm | ||||||
| 300 | DN 300 mm | ||||||
|
Range |
W(x) | Extension range, see Table 2 | |||||
| S (x) | Standard range, see Table 2 | ||||||
|
Body Material |
S | Stainless Steel | |||||
| L | Aluminum Alloy | ||||||
| T | Customized | ||||||
|
Impeller Material |
S | Anti-corrosive ABS | |||||
| L | Aluminum Alloy | ||||||
| T | Customized | ||||||
|
Medium |
N | No special structure | |||||
| A | Dedicated for oxygen | ||||||
| B | Dedicated for compressed air | ||||||
Application
