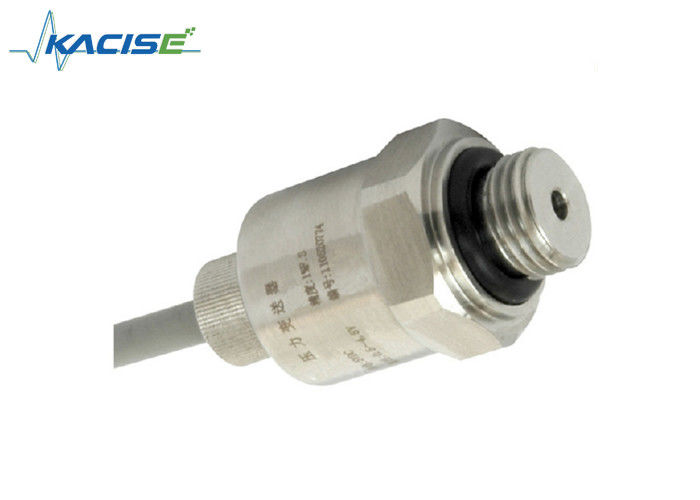

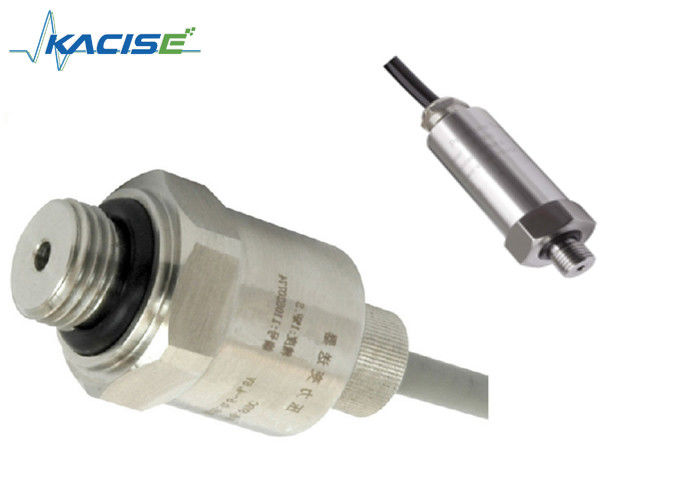

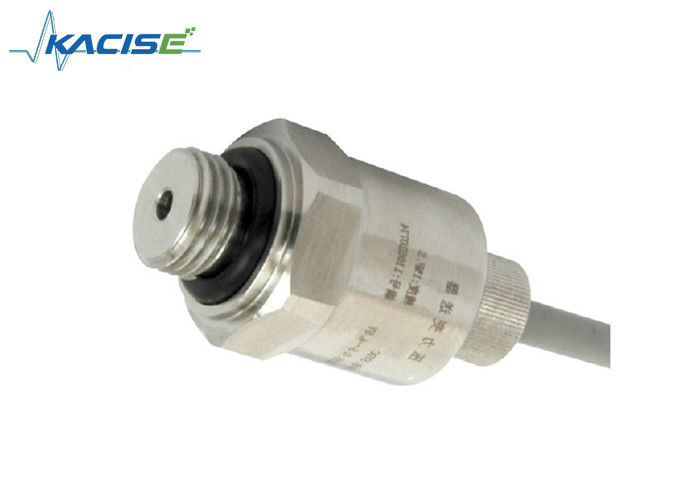

Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy

Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy

    • Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy
    • Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy
    • Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy
    • Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy
  • Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy

    Product Details:

    Place of Origin: China
    Brand Name: Kacise
    Certification: CE
    Model Number: GXPS330

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece
    Price: negotiable
    Packaging Details: each unit has in dividual box and all boxes are packages or customers requests avai ...
    Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 200Piece/Pieces per week
    Contact Now
    Detailed Product Description
    Pressure Range: 0~20kpa…60Mpa Accuracy: ±0.5%F.S
    Working Temperature: -40°C~80°C Output Signal: 4-20mA
    Power Supply: 15VDC Medium: Diesel Oil
    High Light:

    high accuracy pressure sensor

    ,

    piezoresistive pressure transmitter

    GXPS330 Whole Temperature Range Precision Pressure Transmitter

    Application

    • Automotive diesel tank, water tank
    • Automatic detection system
    • Micro-pressure measurement
    • High-rail trains

    Feature

    • Accuracy: 0.5%F.S
    • Full temperature zone Compensation
    • Diesel Corrosion resistant
    • Titanium oil-filled core body
    • Digital calibration

    Instruction



    GXPS330 Series pressure transmitter is a highly reliable, high stability, high accuracy, and the whole temperature digital compensation product, which is specifically designed for automotive diesel fuel tank, the tank pressure measurement. The oil-filled core and shell are all stainless steel structure, using the latest digital compensation to ensure the accuracy. The oil-filled core and shell are all stainless steel structure, using the latest digital compensation to ensure the accuracy of the whole temperature region will not be reduced or lost, through a computer interface to calibrate the zero and full scale, can also program-controlled adjustment of the external zero and span.



    Electronic interface and signals definition


    Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy 0

    Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy 1




    Diesel Oil Precision Pressure Transmitter 4 - 20mA With High Accuracy 2


    Parameter



    Pressure range: 0~20kpa…60Mpa 0~0.2bar…600bar2.9psi…8700psi
    Overload pressure: 1.5 times nominal pressure(1.5X) rupture pressure: 3 times nominal pressure(3X)
    Accuracy: ±0.5%F.S Stability: 0.25%F.S/Year
    compensation temperature: -20°C~80°C Working temperature: -40°C~80°C
    Output signal: 4-20mA power supply: 15VDC
    Insulation: > 20MΩ @100V Electrical Connections : connection terminal
    Medium: diesel oil Protection grade: IP67
    Pressure type: pressure gauge
