High accuracy Differential Pressure Transmitter with Multiple Pressure Range,Sewage disposal,Oil-field flooding

High accuracy Differential Pressure Transmitter with Multiple Pressure Range,Sewage disposal,Oil-field flooding

piezoresistive pressure transmitter

explosion proof pressure transmitter

Place of Origin:

China (Mainland)

Brand Name:

KACISE

Certification:

certificate of explosion-proof, CE

Model Number:

GXPS500D

Contact Us
Request A Quote
Product Details
Pressure Range:
±5kPa……±10000kPa
Pipeline Pressing:
3,5,10 Times Nominal Pressure
Stability:
Typical Value 0.25%F.S, Max.: 0.5%F.S
Electrical Properties:
2 Wire System
Compensated Temperature Range:
-10℃~70℃
Pressure Port:
Inner And Outer G1/4, Inner And Outer NPT1/4
Highlight:

piezoresistive pressure transmitter

,

explosion proof pressure transmitter

Payment & Shipping Terms
Minimum Order Quantity
1pcs
Packaging Details
normal
Delivery Time
5-8 work days
Payment Terms
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
10000 per week
Product Description

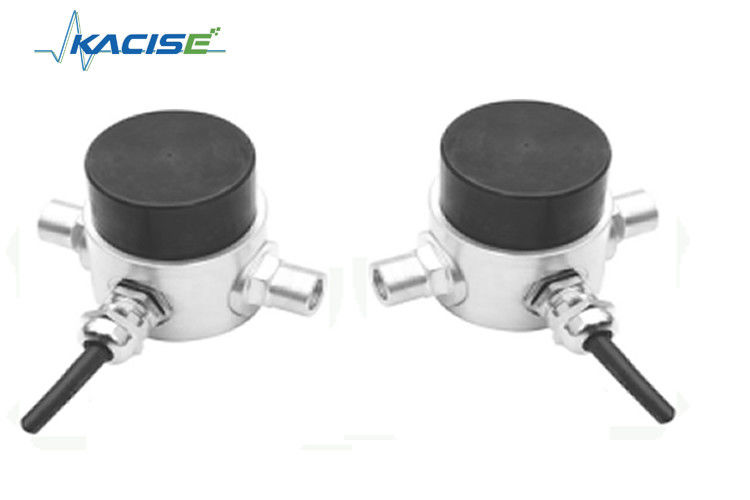

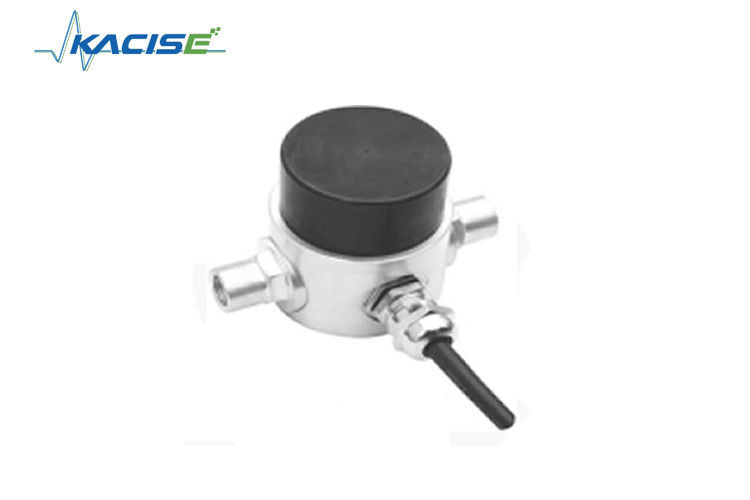

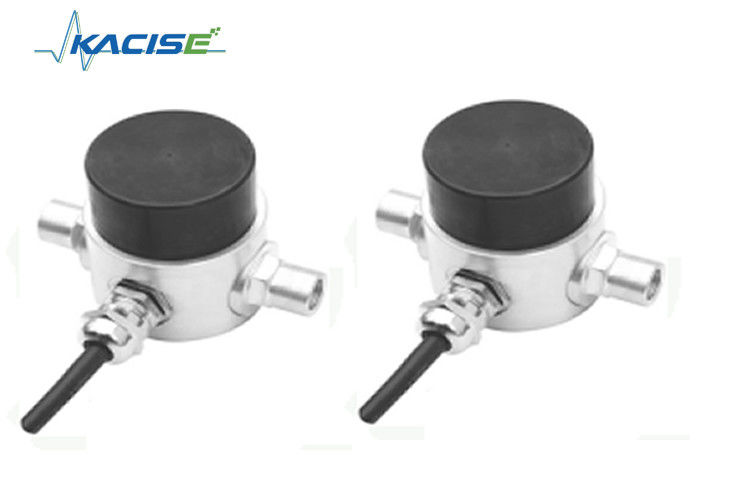

GXPS500D  High accuracy Easy Installation Small size Differential Pressure Transmitter with Multiple pressure Range

Introduction


The GXPS 500D series differential pressure transmitter is a highly reliable, high stability,

high-precision range differential pressure transmitter. Widely used in the differential detection of

liquids, gases. This product uses the 1Cr18Ni9Ti stainless steel or brass shell structure,

zoom in imports of oil-filled differential pressure cores, specially designed to convert electrical specific

anti-high voltage, high current, high magnetic field, non-polarized outlet and other features.

Passed the intrinsically safe certificate; Isolation explosion-proof; CE certificate.

Controlled mode can be designed according to user needs in order to change the zero and span

depending on the circumstances at the scene.
Two-wire system circulation output leads non-polar; three-wire system the voltage output of the AC and DC.


Feature

  • AC, DC output
  • Accuracy : ±0.25,±0.5%F.S
  • Diffused-silicon oil filled core
  • Non polarized and 2 wire system output
  • Multiple pressure range and output signal
  • Intrinsically safe mode, explosion-proof, CE
  • Multiple inner/outer screw thread connection type
  • Against severe electromagnetic interference,lighting protection


Electronic interface and signals definition
High accuracy Differential Pressure Transmitter with Multiple Pressure Range,Sewage disposal,Oil-field flooding 0

Parameter



Spec.Value
Pressure range±5kPa……±10000kPa
Overload pressure1.5time nominal pressure
Pipeline pressing3,5,10 times nominal pressure
Accuracy±0.25%F.S, ±0.5%F.S
StabilityTypical value 0.25%F.S, Max.: 0.5%F.S
Operating temperature-40℃~85℃ (OEM-40℃~120℃)
Compensated Temperature Range-10℃~70℃
MediumAll Caustic Medium Compatible with 1Cr18Ni9Ti or brass
Electrical properties2 wire system3 wire system
Output signal4~20mA0~5V0~10V
Power supply10~30Vdc8~30Vdc/ac11~30Vdc/ac
load resistance(U-10)/0.02(Ω)>100kΩ
Min. isolation between case & terminations>100M Ω@50V
surge immunity>500Vac@60 second
Shock and vibration10g/5~2000Hz, axes X/Y/Z20g sine 11ms
Pressure durable2×106 Pressure circle @25℃
Electrical ConnectionsWaterproof cable, 1.5meter length, IP65
Pressure portInner and outer G1/4, inner and outer NPT1/4,
Response time10ms
Pressure typedifferential pressure
Certificateinsulation explosion proof, CE
EMI/ EMCEMI: EN50081-1/-2; EMC: EN50082-2


Application

  • The city flood protection and water logging drainage project
  • Air supply system for cogeneration plant
  • Ventilation system testing for under pit
  • Hydropower station ‘s water-head
  • Underwater engineering
  • Groundwater monitoring
  • Sewage disposal
  • Oil-field flooding


Ordering information

Ordering information
GX- -Range-Output-Accuracy-Power-Structure-Cable length-Package

  • Range: 0~±5kPa……10000kPa = the upper limitation of the range
  • Output:: A=4~20mA, V=0~5Vdc, V1=1~5Vdc. V2=0~10Vdc
  • Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S,
  • Power: 24VDC, 11~30Vdc
  • Pressure port : GF=G1/4 female thread, G=G1/4, NF=NPT1/4Female thread, N=NPT1/4
  • Electric connection: C=Cable, CW=waterproof joint outlet
  • Cable length: XXm=XX meter 1-150m
  • Static pressure: 3, 5, 10 times nominal pressure, 20MPa (note: pipeline pressure)
  • Package: Bb, Foam
