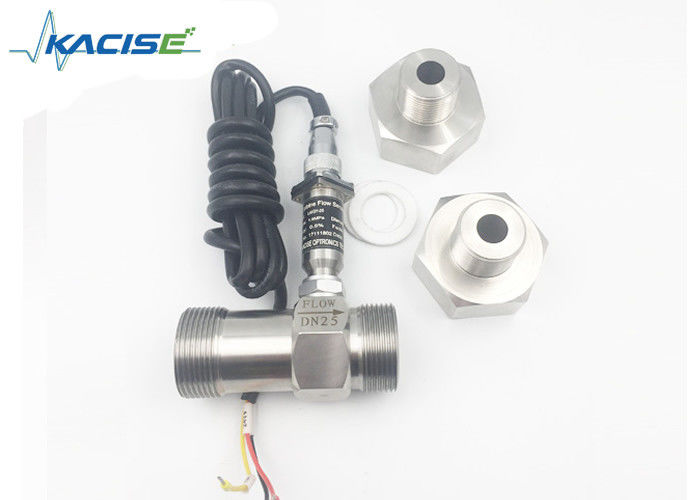

Stainless Steel Thread Turbine Flowmeter Water 25mm Diesel fuel Turbine Flowmeter Drink Water Flowmeter
Description
KXTUF turbine flow meter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.
Features
☆ High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
☆Good repeat-ability, short-term repeat-ability up to 0.05% ~ 0.2%, in the trade settlement is the preferred choice of flow meter.
☆ Output of pulse frequency signal, suitable for totalizer and connection with PC; no zero shift and strong interference resist
☆ High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
☆ Wide range, medium and large diameter up to 1:20, small caliber 1:10.
☆ Compact structure & convenient maintenance
Specifications
| Paremeter | Value | Unit | |
|
Diameter |
Thread | 4, 6, 10, 15, 20, 25, 32, 40 | mm |
| Flange(Clamp) | 15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200 | mm | |
| Accuracy | ±1, ±0.5, ±0.2 (customized) | %R | |
| Range ratio | 1:10, 1:15, 1:20 | ||
| Sensor material | 304, 316(L) stainless steel etc. | ||
|
Working environment |
Medium temp. | -20~120 | °C |
| Ambient temp | -10~55 | °C | |
| Relative humidity | 5%~90% | ||
| Atmospheric pressure | 86~106 | KPa | |
| Signal output |
Sensor: pulse frequency signal, low electrical level≤0.8V, high level≥8V Transmitter: two wire, 4-20 mA DC current signal |
||
| Comm interface | RS485 | ||
|
Power supply
|
Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell or +24VDC external |
|
|
| Signal Transmission Wire | STVPV3×0.3 (3 wire), 2×0.3 (2 wire) |
|
|
| Transmission Distance | No more than 1000 | m | |
| Signal Line Interface |
Basic type: Hausman connector or 3-core wire; Explosion-proof type: M20 × 1.5 (F) |
||
| Explosive-proof grade |
Basic type: non-explosion proof; explosion proof type: ExdIIBT6 |
||
| Protection level | IP65 | ||
Ordering information
| Model | Remarks | |||||||
| KTF | ||||||||
| DN | 4 | 4 mm | ||||||
| 6 | 6 mm | |||||||
| 10 | 10 mm | |||||||
| 15 | 15 mm | |||||||
| 20 |
|
20 mm | ||||||
| 25 | 25 mm | |||||||
| 32 | 32 mm | |||||||
| 40 | 40 mm | |||||||
| 50 | 50 mm | |||||||
| 65 | 65 mm | |||||||
| 80 | 80 mm | |||||||
| 100 | 100 mm | |||||||
| 125 | 125 mm | |||||||
| 150 | 150 mm | |||||||
| 200 | 200 mm | |||||||
| Type | N | Sensor type: +12V or 24V power, output 3 wire system pulse signal | ||||||
| A | Transmitter type: +24V power, output 2 wire 4-20 mA | |||||||
| B | Smart type: lithium cell, local indicator, without signal output | |||||||
| C | Smart type: +24V power, local indicator, 2 wire 4-20mA/pulse output | |||||||
| C1 | Smart type: +24V power, local indicator, RS485 communication | |||||||
| protocol | ||||||||
| C2 | Smart type: +24V power, local indicator, HART protocol | |||||||
| Accuracy | 05 |
|
0.5 | |||||
| 10 | 1.0 | |||||||
| 02 | 0.2 (Special order, long delivery time) | |||||||
| Range | W | Extended Measuring Range | ||||||
| S | Standard Measuring Range | |||||||
| Body Material | S | 304 SS | ||||||
| L | 316 (L) SS | |||||||
| Explosion Proof | N | Non Explosion proof | ||||||
| E | Explosion proof, ExdIIBT6 | |||||||
| Pressure Rating | N | Normal | ||||||
| H (x) | High Pressure | |||||||
