|Medium:||Natural GAS, Intermediate And Low Velocity Gas Without Impurity||Pressure:||1.6MPa;2.5MPa;4.0MPa|
|Installation:||Flange Type , ANSI, JIS DIN||Communication:||RS-485 /MODBUS|
|Accuracy:||1.0%||Output:||4~20mA RS485 Pulse Alarm|
|Material:||SS304 Or316L||Name:||Argon Flow Meter|
|DN (mm):||25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300|
diesel fuel flow meter,
explosion proof flow meter

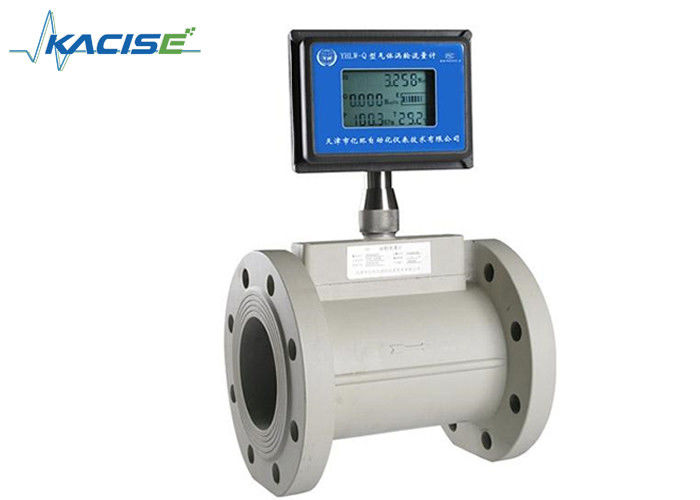

High precision LPG Flowmeter Natural Gas Flowmeter Cooking Gas flowmeter Dual Power Supply Turbine Flow Meter
KTF turbine flow meter is the use of advanced low-power single-chip microprocessor technology developed turbine flow sensor and display totalizer integration of new smart meter, with a compact structure, intuitive readings clear, high reliability, without outside power interference, anti-lightning, obvious low cost advantage, it is widely used to measure the closed pipe and stainless steel 1Cr18Ni9Ti, 2Cr13 and corundum Al2O3, carbide not corrode, and no fibers, particles and other impurities, kinematic viscosity at operating temperature is less than 5 × 10-6m² / s of liquid, for kinematic viscosity more than 5 × 10-6m² / s of liquid, can be quantitative control, excessive alarm, etc., is an ideal flow metering and energy meter.
Measurement objects: oil, organic liquids, inorganic liquid, liquefied petroleum gas, natural gas, coal gas and cryogenic fluids.
The operation of the KTFG series Gas Turbine Meter is based on the measurement of the velocity of gas. The flowing gas is accelerated and conditioned by the meters straightening section. The straightening vanes prepare the gas flow profile by removing. undesired swirl, turbulence and asymmetry before the gas flows to the turbine wheel. The dynamic forces of the flowing fluid cause the rotor to rotate.
The turbine wheel is mounted on the main shaft, with special high precision, low friction ball bearings. The turbine wheel has helical blades that have a known angle relative to the gas flow. The conditioned and accelerated gas drives the turbine wheel with an angular velocity that is proportional with the gas velocity.
KTFG series gas turbine flow meter is widely used for measurement of natural gas, coal gas, liquefied gas and light hydrocarbon gas, etc.
☆ Dedicated instrument for gas measurement
☆ Dedicated instrument for oil & gas recycle system
☆ High accuracy: ±1.5%, ±1.0% or ±0.75%
☆ Good repetitiveness
☆ Test temperature, pressure and flow of measured gas; automatic tracking and compensation of flow; indication of gas total volume under standard status; real-time query of temperature, pressure, time and date, etc.
☆ Built-in pressure & temperature sensor, high safety performance, compact structure & beautiful outlook
☆ Low power consumption, more than 3 years service life for one 3V 10AH lithium cell
☆ Instrument factor, total flow value kept for 10 years after power off
DN (mm) & Connection
25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300 flange connection 25,
40 thread connection
|Accuracy||±1.5%, ±1.0% or ±0.75% (need special order)|
|Range ratio||1:10; 1:20; 1:30|
Body: SS304; Impeller: anti-corrosive ABS or high-quality aluminum alloy; Indicator: cast aluminum
|Medium Temperature ( ℃)||-30 ℃ ~ +80 ℃ / -86°F ~ +176°F|
Temperature:-20℃~ +60℃ / -68°F ~ +140°F Relative humidity: 5% ~ 90%,
Atmospheric pressure: 86 ~ 106 KPa
Sensor: pulse frequency signal, low level less than 0.8V, high level more than 8V
Transmitter: two wire 4-20mA DC current signal
Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC
Local indication type: built-in 3V lithium cell
|Signal Transmission Line||STVPV3×0.3 (3 wire), 2×0.3 (2 wire)|
|Transmission Distance||No more than 1000 m|
|Signal Line Interface||M20×1.5(F)|
Model should be selected according to nominal pressure, medium max pressure, medium temperature, medium components, flow range and signal output.
Working flow range should be (20% to 80%) Qmax.
Standard signal output: pulse signal (ws) output 3 wire, standard flow signal (IC card) output or RS485
communication output; please specify when ordering.
|N||Sensor type: +12V or 24V, output 3 wire pulse signal|
|A||Transmitter type: +24V, output 2 wire 4-20 mA|
|B||Smart type: lithium cell, local indication without output|
|C||Smart type: +24V, local indication, output two wire 4-20mA|
|Smart type: T & P compensation integrated, local indication with remote signal|
|25||DN 25 mm|
|40||DN 40 mm|
|50||DN 50 mm|
|65||DN 65 mm|
|80||DN 80 mm|
|100||DN 100 mm|
|125||DN 125 mm|
|150||DN 150 mm|
|200||DN 200 mm|
|250||DN 250 mm|
|300||DN 300 mm|
|W(x)||Extension range, see Table 2|
|S (x)||Standard range, see Table 2|
|N||No special structure|
|A||Dedicated for oxygen|
|B||Dedicated for compressed air|
