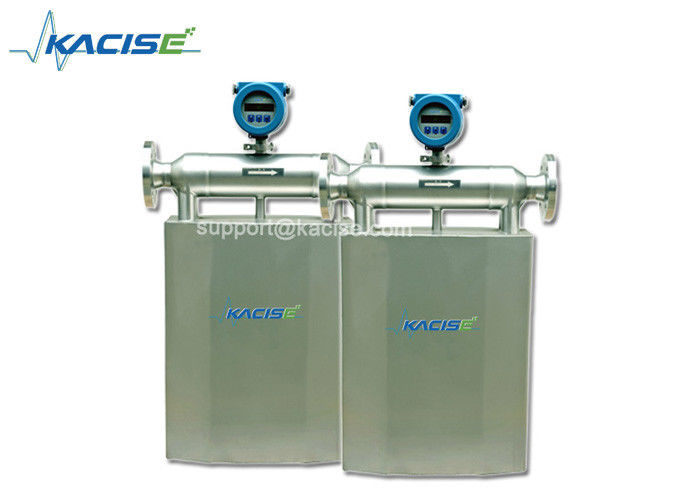

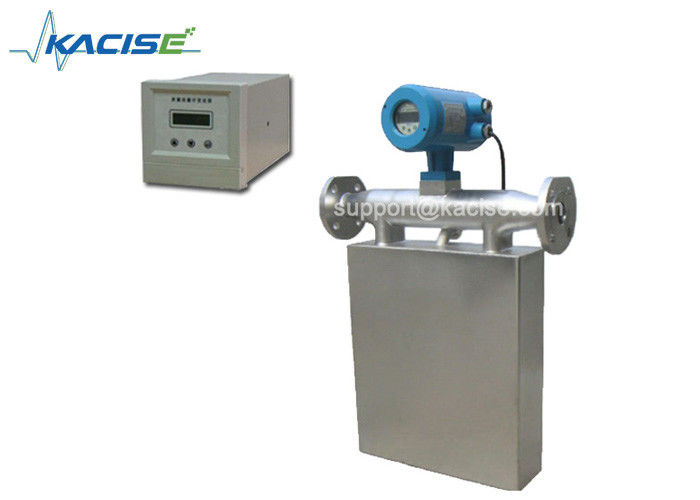

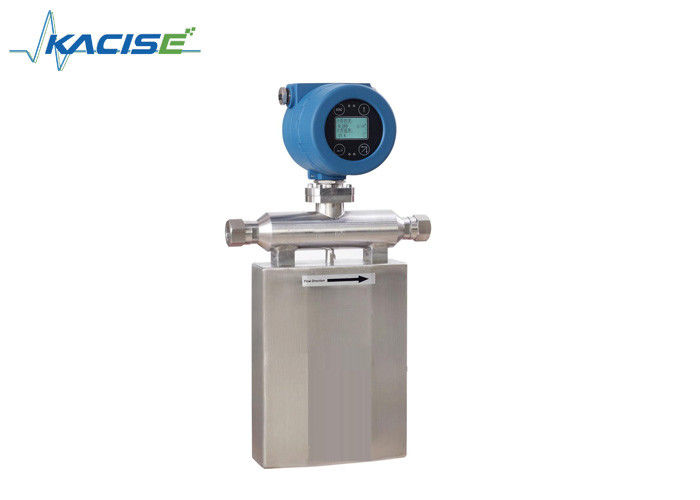

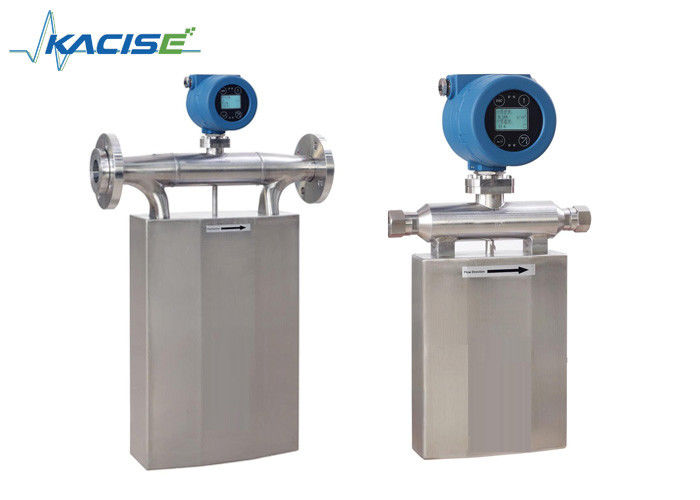

4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields

4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields

  • 4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields
  • 4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields
  • 4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields
  • 4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields
4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields
Product Details:
Place of Origin: Shaanxi, China (Mainland)
Brand Name: KACISE
Model Number: KMF-Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece/Pieces
Price: USD200-6000
Packaging Details: carton or customers requests available
Delivery Time: Shipped in 7 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 3000 Piece/Pieces per Month
Contact Now
Detailed Product Description
Product Name: Coriolis Mass Flowmeter Measuring Rang: 0~1000t/h
Diameter:: 3~250mm Transmitter Output: 4-20mA; 0-10KHz; RS485 Modbus RTU; HART
Pressure Rating: 0~4.0MPa Temperature Rating: -50~350℃
Accuracy Class: 0.10~0.20% Display: LCD Display
High Light:

coriolis flow meter

,

coriolis type mass flow meter

High Accuracy 4~20mA RS 485 Liquid Coriolis Mass Flow Meter





mass flow meter link


Product Description

 flow meter Features

KMF-Series Coriolis Mass Flow Meter directly measures the "Mass" of the medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity, etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards. The Explosion- proof standard is Ex d ib ⅡC T5 Gb.



Coriolis Mass Flow Meters could directly measure the "Mass" of the liquid. And the accuracy is the highest among all types of flow meters, saying, ±0.1%~±0.2%. The range of application is very large, and it could be used for the medium that difficult to be measured, like, high temperature, high pressure, high viscosity, double phases, triple phases. The requirements for the installation are low, the straight pipe requirements in front of and behind the Coriolis Mass Flow Meters are low. They are more reliable, stable, and the maintenance level is low.



details



4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields 2

Parameters



Module DN Measurement Scope Work Pressure (MPa) Connection Type(mm)
KMF-1-1AB 1.5 0~4(kg/h) 0~4 Weld Joints Φ6×1.5
KMF-1-1A 3 0~40(kg/h) 0~4 Weld Joints Φ6×1.5
KMF-1-1B 6 0~100(kg/h) 0~4 Weld Joints Φ10×2
KMF-1-2A 8 0~200(kg/h) 0~4 Weld Joints Φ10×1
KMF-1-3A 10 0~500(kg/h) 0~4 Flange DN10
KMF-1-3B 15 0~1000(kg/h) 0~4 Flange DN15
KMF-1-4 20 0~3000(kg/h) 0~4 Flange DN20
KMF-1-5A 25 0~10(T/h) 0~4 Flange DN25
KMF-1-5B 40 0~20(T/h) 0~4 Flange DN40
KMF-1-6A 50 0~30(T/h) 0~4 Flange DN50
KMF-1-6AB 65 0~50(T/h) 0~4 Flange DN65
KMF-1-6B 80 0~100(T/h) 0~2.5 Flange DN80
KMF-1-6C 100 0~150(T/h) 0~2.5 Flange DN100
KMF-1-6CD 125 0~200(T/h) 0~2.5 Flange DN125
KMF-1-6D 150 0~400(T/h) 0~2.5 Flange DN150
KMF-1-6E 200 0~500(T/h) 0~2.5 Flange DN200



Mass flow meter installation



4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields 3



Instrument Selection



mass flowmeter lectotype 1mass flowmeter lectotype 2


Applied Range

Our products are widely used in petroleum, chemical, metallurgy, electricity, food, pharmaceutical, environmental protection and energy fields. More than 30 provinces and cities across the country, and exports in some countries.



4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields 6


Work Shop


4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields 7



Delivery details



7 working days quick delivery. / Suggested Express company: DHL.



4 - 20mA RS 485 Liquid Coriolis Mass Flow Meter High Accuracy For Chemical Fields 8

our service



1.Q: May I put my own logo on the product?

A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

2.Q: How about the quality control?

A: All products will be tested for 3 times before packed.

3.Q: May I release trial order, 1 pc for example?

A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.

4.Q: Could you design according to my requirements?

A: Of course, our team will design for you, to make our Liquid mass flow meter work perfectly at your end.
