Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
KACISE
Certification:
CE
Model Number:
GXPS220A
Application
Feature
Instruction

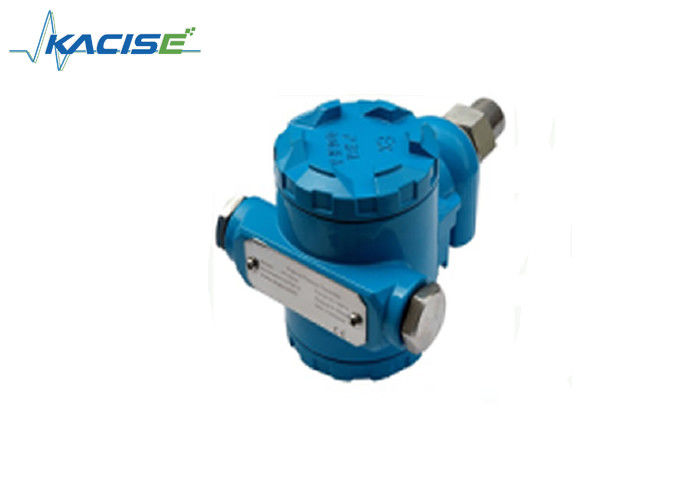

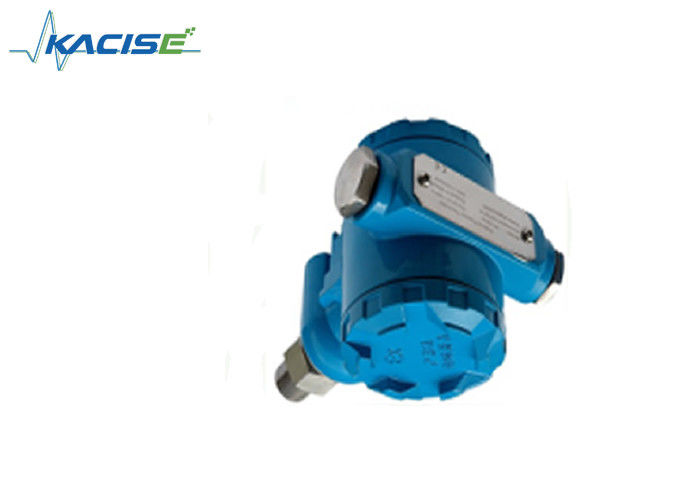

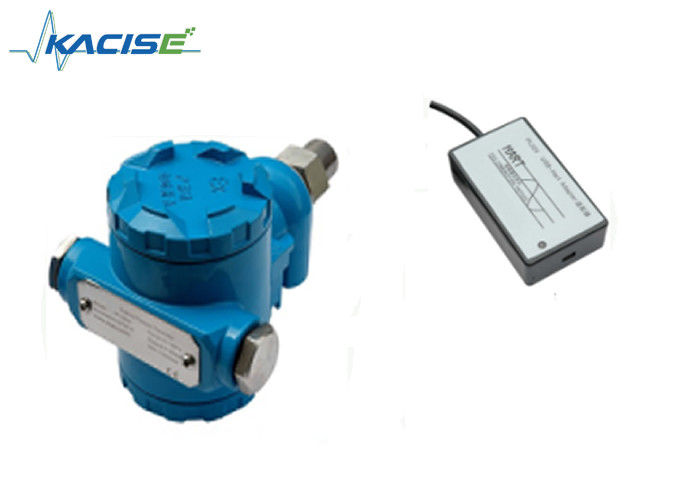

The GXPS220A HART protocol intelligent pressure transmitter has the same feature as traditional 4-20mA instrument, like fast reaction speed and long distance transmission, which can replace the original 4~20mA instrument directly. It also can do digital communications,
digital calibration management, monitoring, and so on.It not only can be applied to the occasion of the traditional analog gauges, but also can be
applied in a complex field bus digital communication occasions.High cost performance, small size, light weight, easy to install.
Electronic interface and signals definition
Spec. | Numerical value |
Pressure range |
0~20kPa……60MPa 0~0.2bar…600bar 2.9psi…8700psi 2000mmH2O…6118000mmH2O 0.19atm…592atm |
Overload pressure | 1.5 times nominal pressure(1.5X) |
Secondary containment | 3 times nominal pressure(3X) |
Accuracy | ±0.25%F.S |
Stability | 0.2%F.S/Year |
Compensation temperature | -10°C~60°C |
Operating temperature | -40°C~85°C |
Output signal | 4-20mA overlay HART Protocol |
Power supply | 12~30VDC |
Min. isolation between case and termination | > 100MΩ @50V |
Electrical Connections | connection terminal |
Pressure port | M20×1.5,G1/2,NPT1/2,G1/4 |
Pressure type | pressure gauge, sealed Pressure gauge |
Ordering information
GX-Type—Range—Output—Power—Pressure port – Connection – Cable length—Package –Other
Company Information
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
