Piezoresistance Core Precision Pressure Sensor Digital Output High Stability

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE
Model Number:	GXPS600

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	normal
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000 per week

Contact Now

Detailed Product Description

Pressure Range:	0～2MPa……60MPa	Power:	10～30Vdc
Electric Interface:	RS485	Pressure Type:	Gage Pressure, Absolute Pressure
Pressure Port:	M20×1.5, G1/4, G1/2, NPT1/2	Operating Temperature:	-10°C～60°C
High Light:	piezoresistive pressure transmitter , explosion proof pressure transmitter

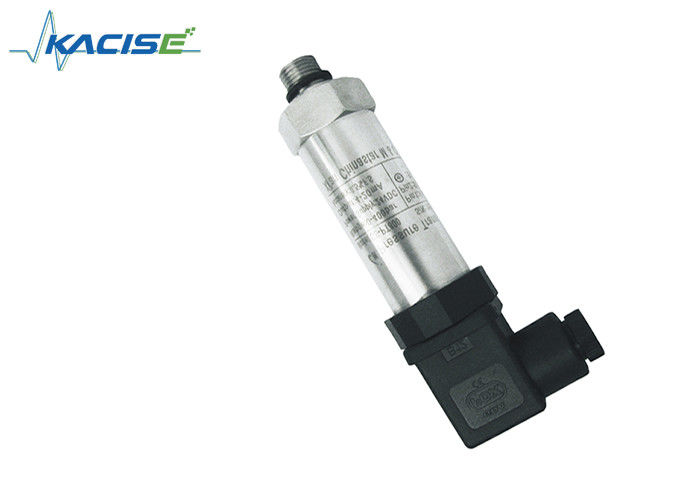

GXPS600 Multiple Pressure Range Piezoresistance Core Series Digital Pressure Transmitter
Introduction

Name: Piezoresistance Core Precision Pressure Sensor Digital Output High Stability
Brand: Kacise
SKU: GXPS600
Rating: 4.7 (114 reviews)

The characteristics of the GXPS602 pressure transmitter are with high reliability, high stability, and digital output. Widely used in gas, liquid pressure testing, such as water, oil, mildly corrosive liquids and gases. This series of products has 1Cr18Ni9Ti stainless steel structure, RS485 output.

GXPS 600A: 3.6Vdc battery-powered, low-power products

GXPS 600C: 3.6Vdc battery-powered, low-power and low accuracy products

Feature

Accuracy: ±0.5%F.S,±1%F.S
Diffused silicon oil-filled core or ceramic piezoresistance core, optional

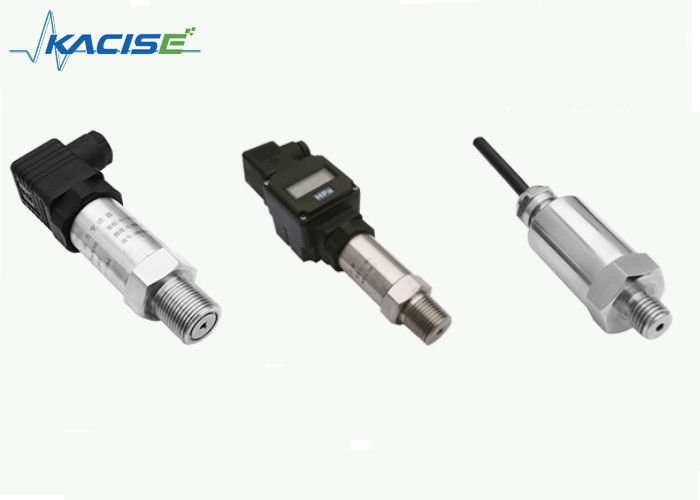

Multiple pressure range
Screw thread installation
RS485 Digital output

Electronic interface and signals definition

Piezoresistance Core Precision Pressure Sensor Digital Output High Stability 0
Parameter

Spec.	Value			Remarks
Type	GXPS602	GXPS602A	GXPS602C	1MPa≈145PSI
Pressure range	0～2MPa……60MPa = 0~290.076PSI…8702.28PSI =0~20BAR…600bar 0~203.893mH2O…6116.2mH2O			1mH2O=9.81Kpa
Over pressure safe	1.5 times nominal pressure (1.5X)
Secondary Containment	3times nominal pressure(3X)
Power	10～30Vdc	3.6Vdc battery
Electric interface	RS485
Static operating current	<15mA	<1mA
Accuracy	0.5%		1%
Output signal	RS485
Pressure type	Gage pressure, Absolute pressure
Operating temperature	-10°C～60°C
Pressure port	M20×1.5, G1/4, G1/2, NPT1/2

Application

Hydrologic monitoring
Constant pressure water supply
Frequency conversion water supply
Sewage treatment
Water-saving irrigation
Hydroelectric power
Diversion works

Package

1pc/box, many boxes/ ctn, or customized available.

Ordering information

GX-Type—Range—Output—Power—Pressure port – Connection – Cable length—Package –Other

Type : PS602=ordinary, PS602A=low-power, PS602C=Low-power + low accuracy
Range: 0~2Mpa…60MPa
Output: RS4=RS485
Power: 10~30Vdc, 3.6Vdc battery
Pressure port: M=M20×1.5, G=G1/4, G2=G1/2, N2=NPT1/2

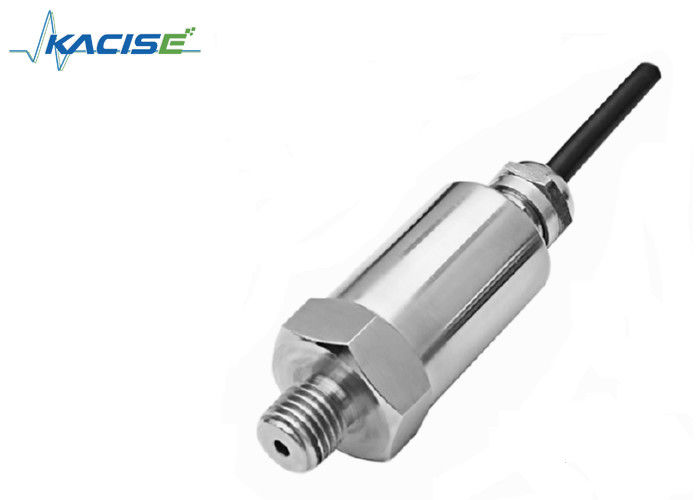

Connection: H=DIN43650-A, CW=water proof connector outlet
Cable length: XXm=__ __meter
Package: Bb, Foam
Other: GXL, HTL
