| Place of Origin: | China |
| Brand Name: | Kacise |
| Certification: | CE |
| Model Number: | GXPS351 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per week |
| Pressure Range: | 0~2bar ......600bar 0~200Kpa…60000Kpa 0~1.97atm…592.1atm | Accuracy: | ±1%F.S, ±2%F.S, ±2.5%F.S |
|---|---|---|---|
| Operating Temperature: | -40°C~125°C | Electrical Performance: | 3 Wire System |
| Output Signal: | 0~5V 0.5~4.5V 1~3V | Power Supply: | 10~24Vdc 10~24Vdc 5Vdc 8~30Vdc |
| High Light: | high accuracy pressure sensor,explosion proof pressure transmitter |
||
Feature
Application
Introduction

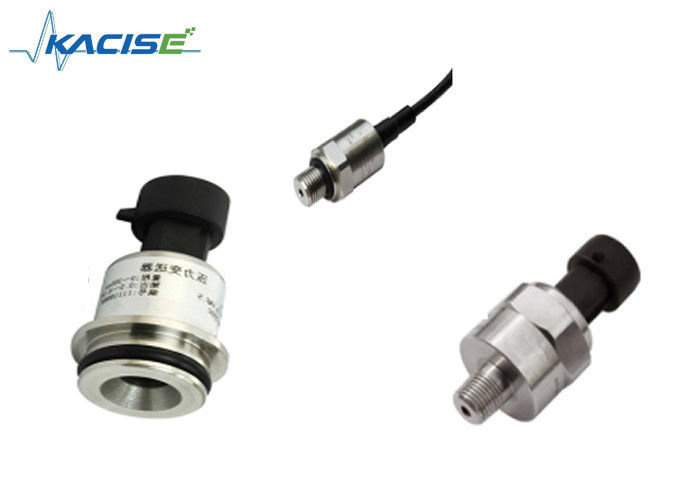

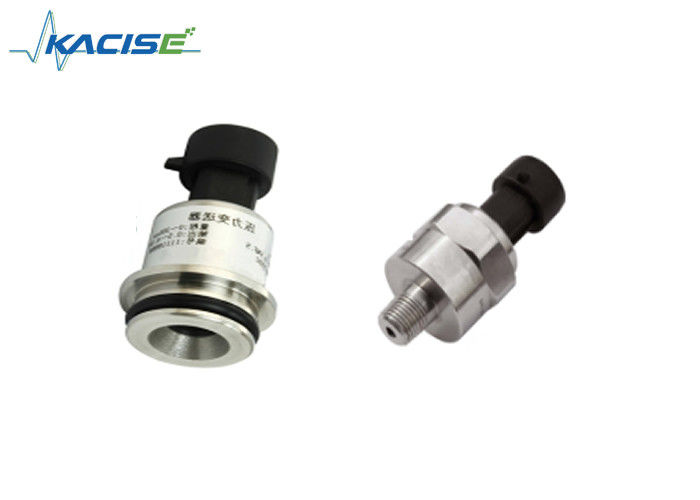

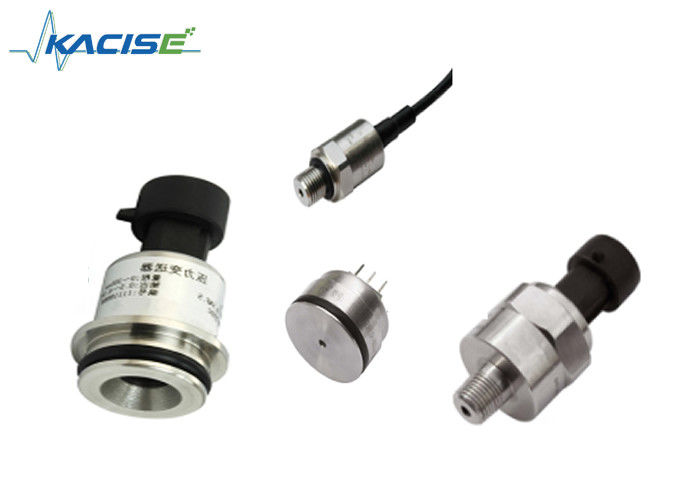

GXPS351 series pressure transmitter is a high-volume, low cost OEM, civil, industrial, high-quality, high-reliability products. With small size, light weight, compact feature, this pressure transmitter is widely used in the automotive industry.
The product is made of high quality stainless steel structure, pressure core and sensor chips are imported from Germany, tuning and digital compensation techniques, and get the intrinsically safe certification and CE certification.
Standard voltage output mode.
Electronic interface and signals definition
Parameter
| Spec. | Value | ||||
| Pressure range |
0~2bar ......600bar 0~200Kpa…60000Kpa 0~1.97atm…592.1atm |
||||
| Load pressure | 2 times nominal value pressure (2X) | ||||
| Rupture pressure | 3times nominal value pressure (3X) | ||||
| Accuracy | ±1%F.S, ±2%F.S, ±2.5%F.S | ||||
| Stability | Typical value 1%F.S, Max. value: 2%F.S | ||||
| Operating temperature | -40°C~125°C | ||||
| Compensation temperature | -10°C~80°C | ||||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | ||||
| Electrical performance | 3 wire system | ||||
| Output signal | 0~5V | 0.5~4.5V | 1~3V | ||
| Power supply | 10~24Vdc | 10~24Vdc | 5Vdc | 8~30Vdc | |
| Load pressure | (U-10)/0.02(Ω) | >100kΩ | |||
| Insulation | >100M Ω@50V | ||||
| Electric strength | 500V@60 second | ||||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | ||||
| Pressure durable | 2×106pressure circle @25°C | ||||
| Electrical connection | Packard, DJ7032-2.3, water proof joint | ||||
| Pressure port | M14×1.5, M12×1, G1/2, | ||||
| Pressure type | G, | Response time: 10ms | |||
| Certificate | CE | ||||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||||
