Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
KACISE
Certification:
CE
Model Number:
GXPS600
Feature
Or ceramic piezoresistance core, optional
Application
Introduction:

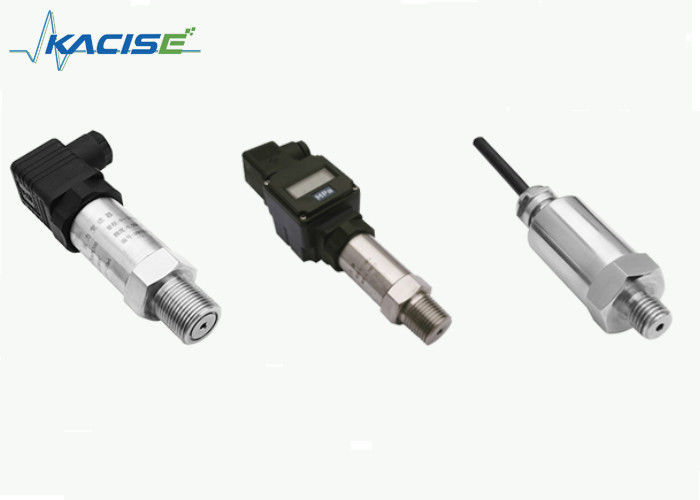

The characteristics of the GXPS602 pressure transmitter are with high reliability, high stability, and digital output. Widely used in gas, liquid pressure testing, such as water, oil, mildly corrosive liquids and gases. This series of products has 1Cr18Ni9Ti stainless steel structure, RS485 output.
GXPS 600A: 3.6Vdc battery-powered, low-power products
GXPS 600C: 3.6Vdc battery-powered, low-power and low accuracy products
Electronic interface and signals definition

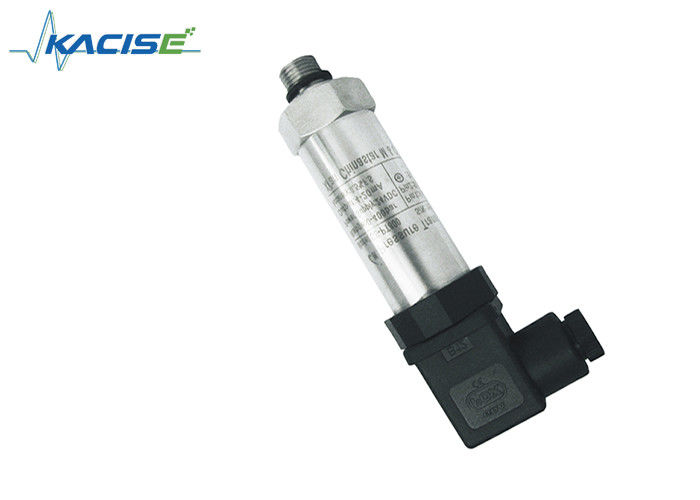

Hurischmann fitting:
1——power
2——power ground
3——RS485+
——RS485-

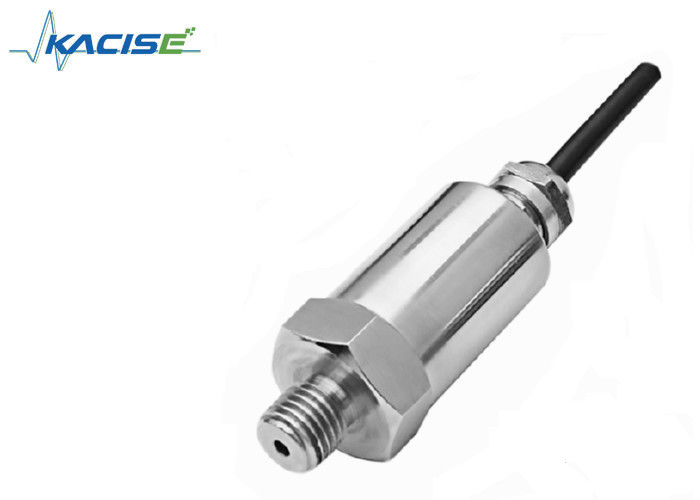

| Direct leads electric connection | |
| Wiring definition | Cable color |
| RS485+ | Yellow |
| RS485- | Bule |
| Power | Red |
| power ground | Black |
Parameters
| Spec. | Value | Remarks | ||
| Type | GXPS602 | GXPS602A | GXPS602C | 1MPa≈145PSI |
| Pressure range |
0～2MPa……60MPa = 0~290.076PSI…8702.28PSI =0~20BAR…600bar 0~203.893mH2O…6116.2mH2O |
1mH2O=9.81Kpa | ||
| Over pressure safe | 1.5 times nominal pressure (1.5X) | |||
| Secondary Containment | 3times nominal pressure(3X) | |||
| Power | 10～30Vdc | 3.6Vdc battery | ||
| Electric interface | RS485 | |||
| Static operating current | <15mA | <1mA | ||
| Accuracy | 0.5% | 1% | ||
| Output signal | RS485 | |||
| Pressure type | Gage pressure, Absolute pressure | |||
| Operating temperature | -10°C～60°C | |||
| Pressure port | M20×1.5, G1/4, G1/2, NPT1/2 | |||
Package
1pc/box, many boxes/ ctn, or customized available.
Ordering information
GX-Type—Range—Output—Power—Pressure port – Connection – Cable length—Package –Other
