GXPS622 Adjustable pressure switch with operating temperature -20°C~60°C

Product Details:

Place of Origin:	China
Brand Name:	Kacise
Certification:	CE
Model Number:	GXPS622

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	negotiable
Packaging Details:	each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time:	5-8 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000 pieces per week

Contact Now

Detailed Product Description

Pressure Range:	0~0.1MPa......60MPa	Accuracy:	±0.5%F.S, ±1%F.S, ±2%F.S
Operating Temperature:	-20°C~60°C	Medium Compatibility:	All Caustic Medium Compatible With 1Cr18Ni9Ti
Output Signal:	The Relay Output	Power Supply:	24Vdc
High Light:	piezoresistive pressure transmitter , explosion proof pressure transmitter

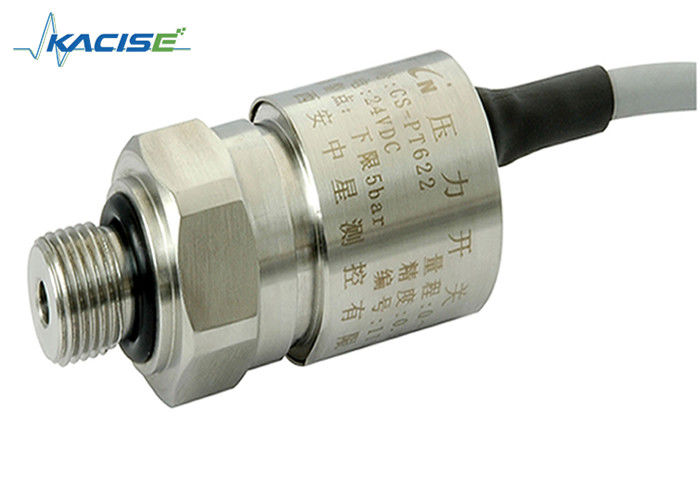

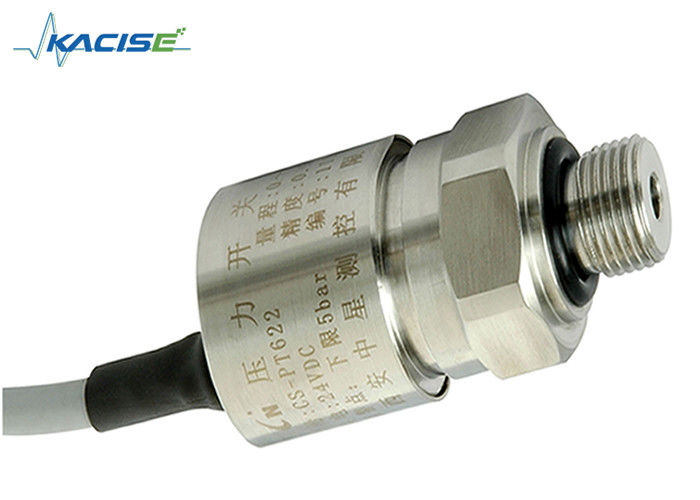

GXPS622 Adjustable pressure switch

Name: GXPS622 Adjustable pressure switch with operating temperature -20°C~60°C
Brand: Kacise
SKU: GXPS622
Rating: 4.6 (187 reviews)

Introduction

The GXPS622 series represents a band live alarm lamp and an alarm point adjustable pressure switch. It possesses the characteristics of high reliability, remarkable stability, and exceptional accuracy. This product is widely utilized in the pressure detection of gases and liquids, such as water, oil, mild corrosive liquids, and gases.

The outstanding product adopts a 1Cr18Ni9Ti stainless steel structure. The user-adjustable alarm points can be conveniently adjusted through a potentiometer, and a real-time light-emitting diode is employed to display the working status of the switch output, providing clear and immediate visual feedback.

Application

Hydraulic control
Petrochemical
Pressure Instruments
Automatic detection system
Machine control
Metallurgical and Chemical

Feature

Accuracy : 0.5%F.S, 1%F.S, 2%F.S
Adjustable alarm output
With on-site switch indicator
Various pressure range and switch output

Electronic interface and signals definition

GXPS622 Adjustable pressure switch with operating temperature -20°C~60°C 0

Parameter

Spec.	Value
Pressure range	0~0.1MPa......60MPa; 1bar…600bar; 14.5psi…8700psi 10000MmH20…6118000mmH2O 0.98atm…592stm
Load pressure	1.5times nominal value pressure (1.5X)
Rupture pressure	3times nominal value pressure (3X)
Accuracy	±0.5%F.S, ±1%F.S, ±2%F.S
Stability	Typical value 0.25%F.S, Max.: 0.5%F.S
Operating temperature	-20°C~60°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti
Output signal	The relay output
Power supply	24Vdc
Contact load	0.5A 125VAC/1A 30VDC
Insulation	〉100M Ω@50V
Pressure port	M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure type	G,S	Response time: 10ms
EMI/EMC	EMI: EN50081-1/-2; EMC: EN50082-2
