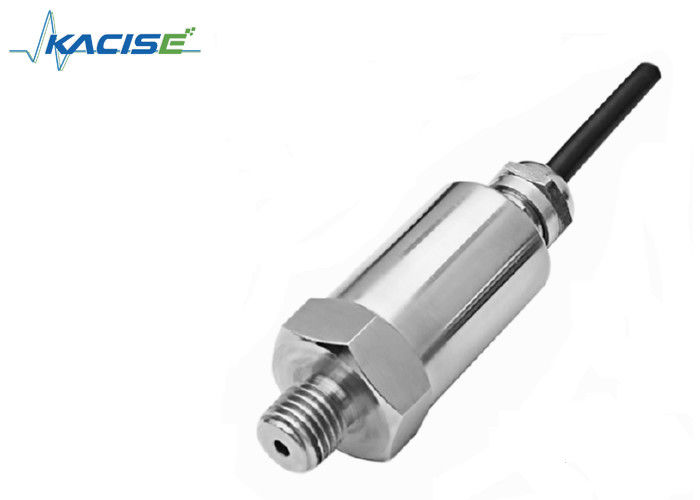

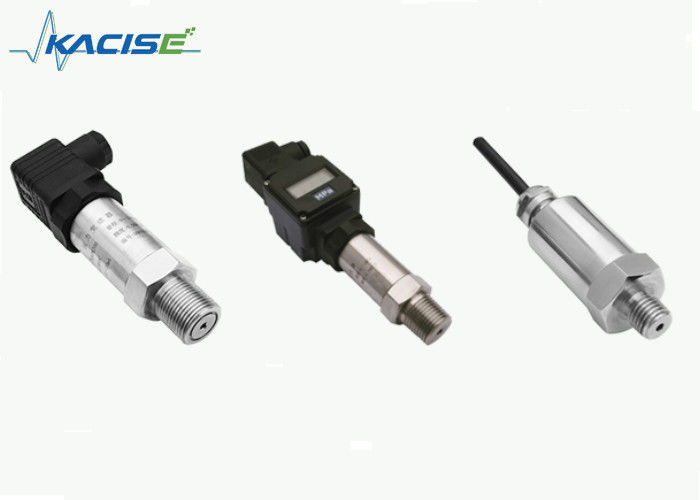

High Precision Digital Pressure Transducer High Stability Small Size

High Precision Digital Pressure Transducer High Stability Small Size

    • High Precision Digital Pressure Transducer High Stability Small Size
    • High Precision Digital Pressure Transducer High Stability Small Size
    • High Precision Digital Pressure Transducer High Stability Small Size
    • High Precision Digital Pressure Transducer High Stability Small Size
  • High Precision Digital Pressure Transducer High Stability Small Size

    Product Details:

    Place of Origin: Shaanxi, China (Mainland)
    Brand Name: kacise
    Certification: CE
    Model Number: GXPS606

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 2000 Piece/Pieces per Week negotiable
    Contact Now
    Detailed Product Description
    Pressure Range: 0~2MPa……100MPa Accuracy: 0.25%F.S, 0.1%F.S
    Power Supply: 10~30Vdc Pressure Port: M20×1.5, G1/4, G1/2, R1/2, NPT1/2
    Digital Output: RS485 Operating Temperature: -40~80°c
    High Light:

    piezoresistive pressure transmitter

    ,

    explosion proof pressure transmitter

    GXPS606 Series 0.1%AccuracyHigh Precision Digital Pressure Transducer

    Application

    • Aeronautics and Astronautics
    • Hydrological test
    • Geological survey
    • Petroleum and chemical
    • Mining machinery


    Feature

    • Accuracy: 0.1%, 0.25%
    • High accuracy, high quality
    • RS485 output
    • Analog voltage output
    • High stability

    Introduction



    GXPS606 series pressure transmitter, which is using the international first-class sensor cores, the transmitter ASIC and accessories, with military production lines and processes, make the production of high-precision, high-quality, small size, easy to install, simple to use, pressure class of cost-effective transmitter.

    GXPS606 digital pressure transmitter adopts high-performance MCU, precision ADC and DAC, after temperature compensation, the temperature region of -40 ° C to 85 ° C or -10 ° C to 60 ° C at ambient temperature can achieve 0.1%, 0.25% accuracy, and be corrected through software, it can achieve higher accuracy. RS485 digital and analog dual output, the RS485 flexible network and host computer testing software, the analog part can be freely configured to any interval within 0V ~~ 5VDC range.



    Electronic interface and signals definition

    High Precision Digital Pressure Transducer High Stability Small Size 0



    Electronic connection
    Color red Black Blue Green Yellow
    Definition Power Power ground RS485+ RS485- voltage output









    Parameter



    Spec. Value
    Pressure range 0~2MPa……100MPa
    Accuracy 0.25%F.S, 0.1%F.S
    Over load pressure safe 1.5times nominal pressure (1.5X)
    Secondary containment 3times nominal pressure (3X)
    Power supply 10~30Vdc
    Operating current <10mA
    Compensated temperature range -10°c~60°c, -40°c~85°c
    Analog output 0-5VDC
    Digital output RS485
    Operating temperature -40~80°c
    Electrical connection Air plugs
    pressure port M20×1.5, G1/4, G1/2, R1/2, NPT1/2
    Protection class IP65
    Stability 0.15%F.S
    Pressure type Gage Sealed gage
    EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2





    Ordering Information

    GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

    1. Type: PS606
    2. Range: 0~2MPa…100MPa = the upper limitation of the range
    3. Output:: RS4=RS485, V=0~5Vdc
    4. Power: 10~30Vdc
    5. Pressure port : M=M20×1.5,G2=G1/2,N2=NPT1/2
    6. Electric connection: GX=GX16-7
    7. Cable length: XXm=XX meter 1-150m
    8. Package: Bb, Foam
