    Product Details:

    Place of Origin: Shaanxi, China (Mainland)
    Brand Name: kacise
    Certification: CE
    Model Number: GXPS602

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PIECE
    Price: negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 2000 Piece/Pieces per Week
    Contact Now
    Detailed Product Description
    Pressure Range: -100…0~35…100Kpa Accuracy: ±0.5%F.S, ±1%F.S, ±2%F.S, Optional
    Operating Temperature: -20°c ~60°c Output Signal: Two Relay Output, With Normal Close & Normal Open Output
    Power Supply: 24±10%Vdc Pressure Port: M20×1.5, G1/4, G1/2, R1/2, NPT1/2
    High Light:

    high accuracy pressure sensor

    ,

    explosion proof pressure transmitter

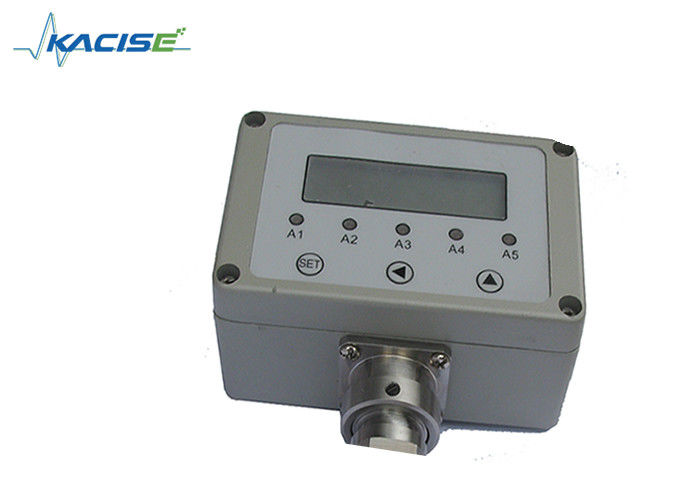

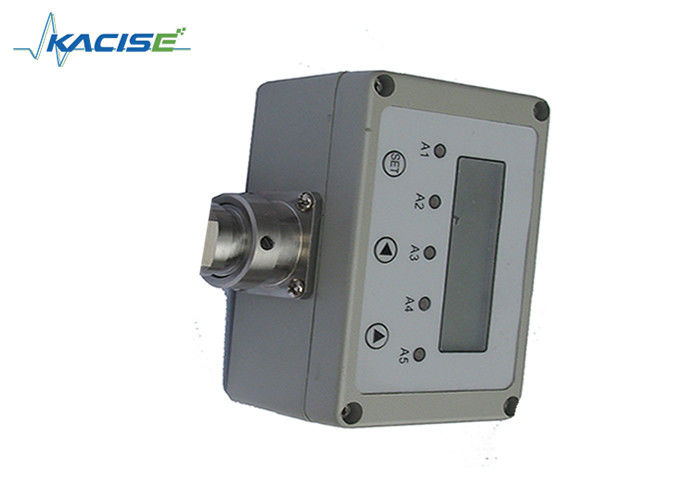

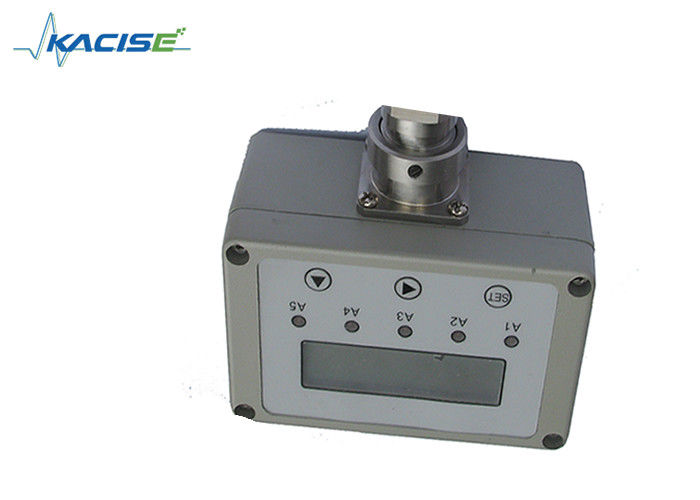

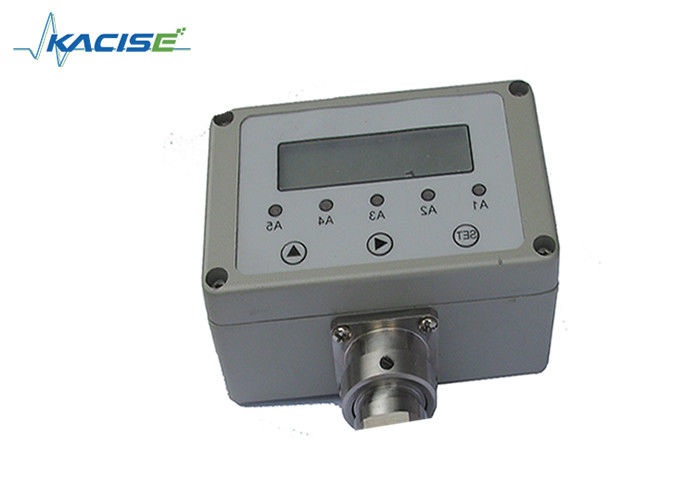

    GXPS620 Field display Adjustable alarm output Type Pressure Switch

    Application

    • Hydraulic control
    • Petrochemical
    • Pressure instrument
    • Automatic checkout system
    • Fluid pressure measurement
    • Chemical metallurgy


    Feature

    • Field display
    • Two relay output
    • Adjustable alarm output
    • Accuracy: ±0.5%F.S, ±1.0%F.S, ±2.0%F.S
    • A variety of pressure range and switch output



    Introduction



    GXPS620 is a pressure switch with a 4-digit LED display, It has two alarm points (low point and high point) and hysteresis gap ,all of the value is adjustable. It is a set of intelligent pressure instrument with a Pressure measurement and pressure switch control.

    The product uses 1Cr18Ni9Ti stainless steel structure, through the buttons to adjust parameters, the two-way switch output.



    Electronic interface and signals definition



    GXPS620 Field display Adjustable alarm output Type Pressure Switch 0

    Electrical connection
    Color Red Black Green Blue Yellow Brown Orange Purple
    Function Power + Power - common terminal1 Normal close 1 Normal open1 Common terminal2 Normal close 2 Normal close 2



    Parameter



    Spec. Value
    Pressure range -100…0~35…100Kpa
    Load pressure 2 times nominal value pressure (2X)
    Rupture pressure 4 times nominal value pressure (4X)
    Accuracy ±0.5%F.S, ±1%F.S, ±2%F.S, optional
    Stability Typical value 0.25%F.S/year,
    Operating temperature -20°c ~60°c
    Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
    Output signal Two relay output, with normal close & normal open output
    Life span of switch More than 1, 000, 000 times
    Power supply 24±10%Vdc
    Contact load 0.5A 125VAC/1A 30VDC
    Insulation >100M Ω@50V
    Pressure port M20×1.5, G1/4, G1/2, R1/2, NPT1/2
    Pressure type G, S Response time: 10ms
    EMI/EMC EMI: EN50081-1/-2 ; EMC: EN50082-2



    Ordering information



    GX-Type-Range-Accuracy-Pressure port-Package

    1. Type: PS620
    2. Range: -100…0~35…100Kpa = the upper limitation of the range
    3. Accuracy: 0.5=±0.5%F.S, 1.0=±1.0%F.S, 2.0=±2.0%F.S
    4. Pressure port: M20=M20×1.5, G1=G1/4, G2=G1/2, R1=R1/2, N1= NPT1/2
    5. Package: Bb, Foam
