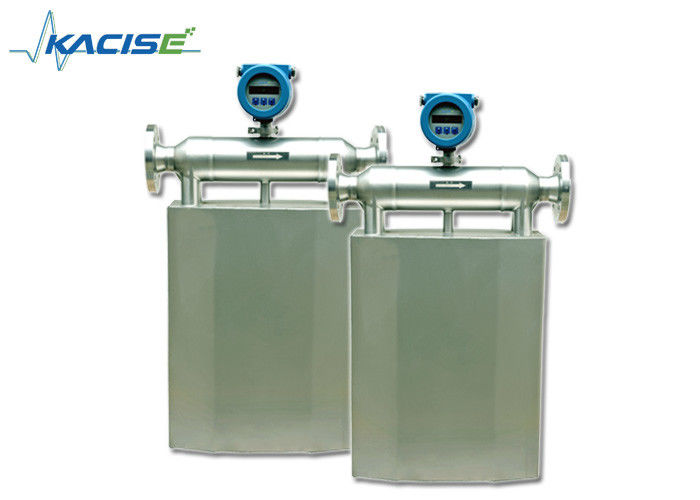

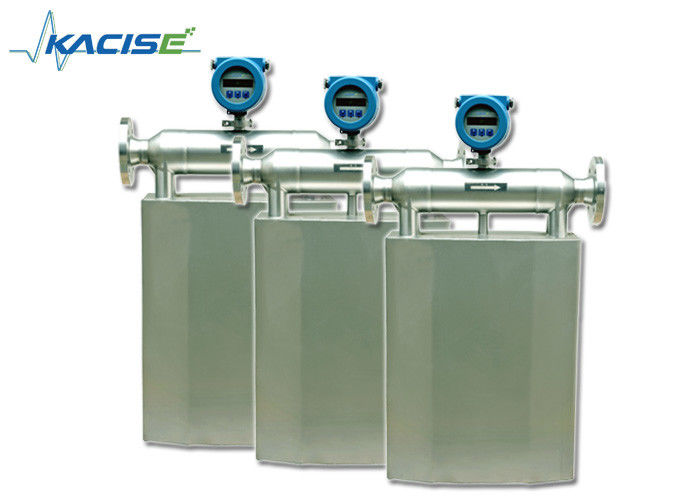

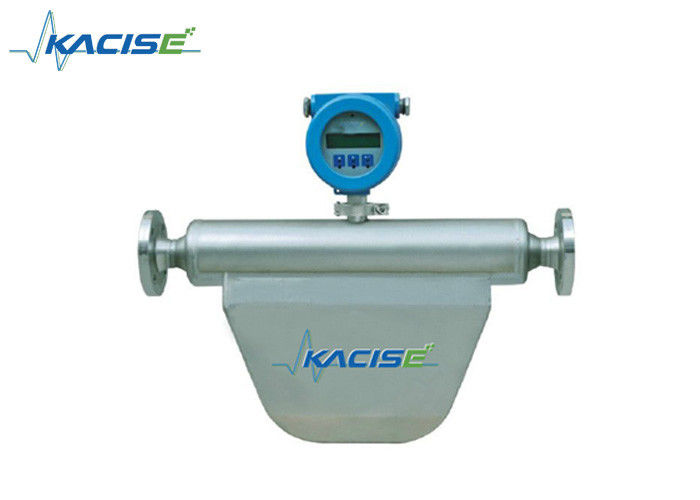

High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter

High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter

    • High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter
    • High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter
    • High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter
    • High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter
  • High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter

    Product Details:

    Place of Origin: Shaanxi, China (Mainland)
    Brand Name: KACISE
    Model Number: KMF-Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/Pieces
    Price: Negotiable
    Packaging Details: carton or customers requests available
    Delivery Time: Shipped in 7 days after payment
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 3000 Piece/Pieces per Month
    Contact Now
    Detailed Product Description
    Display: LCD Display Measuring Rang: 0~1000t/h
    Temperature Rating: -50~350℃ Pressure Rating: 0~4.0MPa
    Accuracy Class: 0.10~0.20% Diameter: 3~250mm
    High Light:

    liquid mass flow meter

    ,

    coriolis type mass flow meter

    LCD Display 0.1% Precision Grade High Viscosity Petroleum Industry-specific Mass Flowmeter





    High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter 0

     Description



    Petroleum mass flowmeter directly measures the "Mass" of the Medium with high accuracy based on the Coriolis Principle (Coriolis Force). The accuracy would not be affected by any factors like the temperature, pressure, density, viscosity,etc. And the compensation calculation is not required. The Coriolis Mass Flow Meter consists of two parts: the Sensor and the Transmitter. The Corioils Mass Flow Meter is designed and produced based on the national standard of explosion- proof standards.



    Principles



    The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.

    A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.



    Parameters



    Module DN Measurement Scope Work Pressure (MPa) Connection Type(mm)
    KMF-1-1AB 1.5 0~4(kg/h) 0~4 Weld Joints Φ6×1.5
    KMF-1-1A 3 0~40(kg/h) 0~4 Weld Joints Φ6×1.5
    KMF-1-1B 6 0~100(kg/h) 0~4 Weld Joints Φ10×2
    KMF-1-2A 8 0~200(kg/h) 0~4 Weld Joints Φ10×1
    KMF-1-3A 10 0~500(kg/h) 0~4 Flange DN10
    KMF-1-3B 15 0~1000(kg/h) 0~4 Flange DN15
    KMF-1-4 20 0~3000(kg/h) 0~4 Flange DN20
    KMF-1-5A 25 0~10(T/h) 0~4 Flange DN25
    KMF-1-5B 40 0~20(T/h) 0~4 Flange DN40
    KMF-1-6A 50 0~30(T/h) 0~4 Flange DN50
    KMF-1-6AB 65 0~50(T/h) 0~4 Flange DN65
    KMF-1-6B 80 0~100(T/h) 0~2.5 Flange DN80
    KMF-1-6C 100 0~150(T/h) 0~2.5 Flange DN100
    KMF-1-6CD 125 0~200(T/h) 0~2.5 Flange DN125
    KMF-1-6D 150 0~400(T/h) 0~2.5 Flange DN150
    KMF-1-6E 200 0~500(T/h) 0~2.5 Flange DN200





    Application



    The KMF Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.

    Alternative Energy

    Oil & Gas

    Chemical

    Food & Beverage

    Industrial Energy

    Life Sciences

    Marine

    Metals and Mining

    Power

    Pulp & Paper

    Refining

    Water & Wastewater

    Others



    Instrument Selection



    mass flowmeter lectotype 1mass flowmeter lectotype 2


    Applied Range

    Our products are widely used in petroleum, chemical, metallurgy, electricity, food, pharmaceutical, environmental protection and energy fields. More than 30 provinces and cities across the country, and exports in some countries.

    Work Shop


    High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter 3



    our service



    1. Q: May I put my own logo on the product?

    A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.

    2. Q: How about the quality control?

    A: All products will be tested for 3 times before packed.

    3. Q: Could you design according to my requirements?

    A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.

    4. Q: May I release trial order, 1 pc for example?

    A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.



    Delivery details



    7 working days quick delivery. / Suggested Express company: DHL.



    High Viscosity Petroleum Coriolis Mass Flow Meter 3 - 250mm Diameter 4
