|Place of Origin:||Shaanxi, China (Mainland)|
|Minimum Order Quantity:||1 Piece/Pieces|
|Packaging Details:||carton or customers requests available|
|Delivery Time:||Shipped in 7 days after payment|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||3000 Piece/Pieces per Month|
|Measuring Rang:||0~1000t/h||Accuracy Class:||0.10~0.20%|
|Temperature Rating:||-50~350℃||Pressure Rating:||0~4.0MPa|
coriolis flow meter,
coriolis type mass flow meter

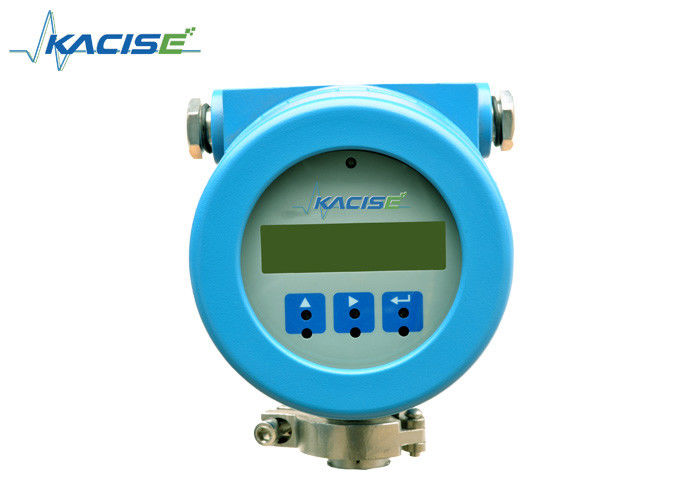

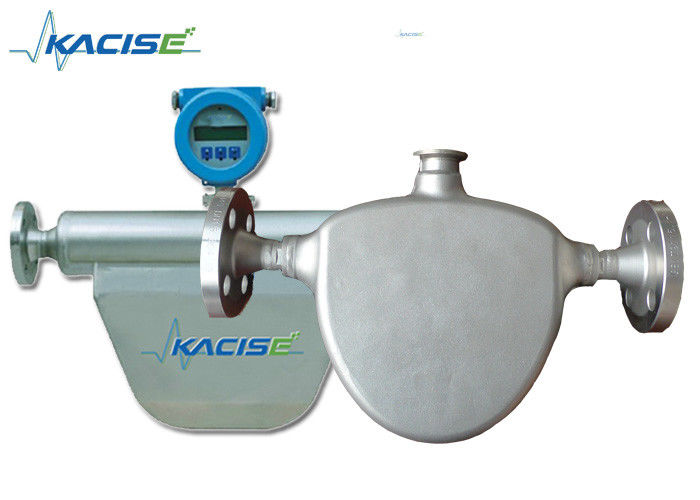

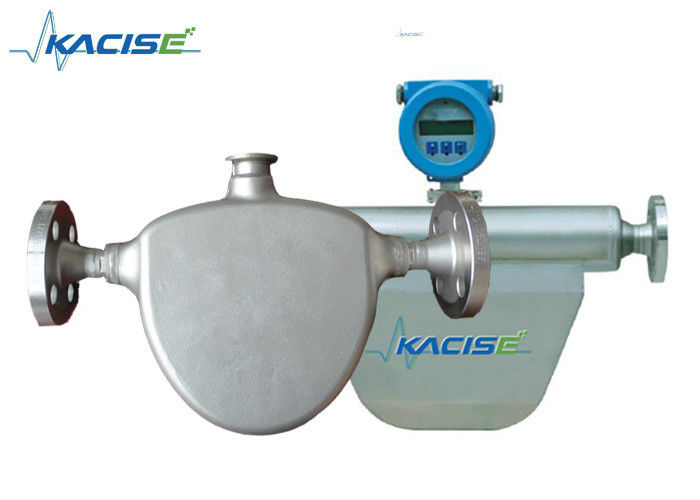

LCD Display Digital 0.1% Accuracy Microbend type Coriolis Crude Oil Mass flowmeter
KMF-V-Series Coriolis Mass Flow Meters have applied the pure digital drive, DSP signal processing, and the high vibration frequency. The DMF-V-Series Coriolis Mass Flow Meters have characteristics of high stability, high shock resistance, fast response, high accuracy, low pressure lose, multi-parameter measurement (including: mass flow, density, temperature, percentage), etc. The accuracy of the Coriolis Mass Flow Meters is ±0.1%~ ±0.2%. The application range is large. (It could be used to measure all sorts of all sorts non-newtonian fluid, slurry, suspensions, high viscosity fluid, etc.) The requirements for the installation are low. (The straight pipe requirements in front of and behind the Coriolis Mass Flow Meters are low.) They are more reliable, stable, and the maintenance level is low.
Principles of Measurement

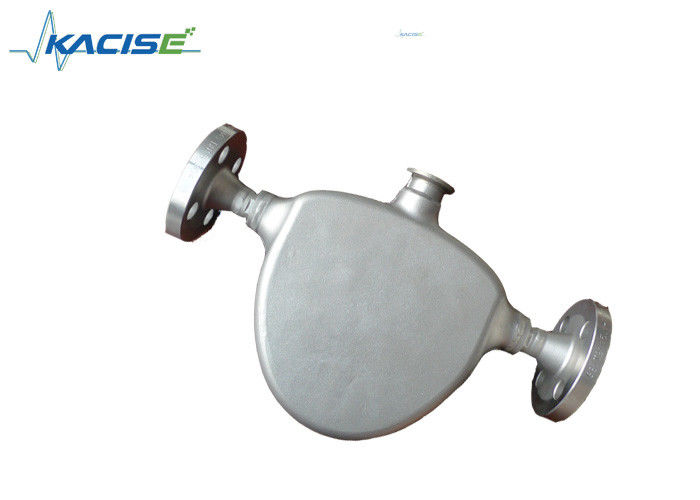

The structure of Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.
A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced.
|Model||DN||Measurement scope(T/h)||Work Pressure (MPa)||Connection type (mm)|
|KMF-1-6-V50||50||0- 40||0～4||Flange DN50|
|KMF-1-6-V80||80||0- 100||0～1.6||Flange DN80|
|KMF-1-6-V100||100||0- 150||0～1.6||Flange DN100|
|KMF-1-6-V150||150||0- 350||0～1.6||Flange DN150|
|KMF-1-6-V250||250||0- 500||0～1.6||Flange DN250|
|Applications||Suitable for Liquid, Gas, Liquid- Solid, Gas- Solid, Liquid- Gas Mass Measurement or volume measurement|
|Material of the Measurement Pipeline||SS 316L/ HC Hastelloy|
|Pressure||Please refer to the chart shown above. Special orders would be placed for high pressure.|
|Medium Temperature||-50℃～+150℃:-50℃～250℃；-50℃～ 350℃；-100℃～ 350℃|
|Environment Temperature||Sensor:-40℃～+150℃; Transmitter:-20℃～+70℃|
|Flow Rate Measurement Accuracy||± 0.2% ,± 0.1% optional|
|Density Measurement Accuracy||±0.002g/cm³,±0.001g/cm³ optional|
|Repeatability||±0.10% Flow Rate ±[½(Zero Point Stability/Flow Rate)×100]% Flow Rate|
|Output Signal||4～20mA Load Resistance <500Ω(Instantaneous or Density optional)； 0～10kHz Instantaneous Flow Rate Pulse Signal; Standard RS 485 Communication|
|Explosion- Proof Symbol||EX d ib II C T5 Gb|
|Anti- Explosion Certification No.||CE14.1262|
² Reduced fill time with higher flow rate capacity
² Compact design with no moving parts, no special mounting and no flow conditioning required
² Fast delivery and global support
Application of mass flow meter
The KMF Coriolis flow meter family measures direct mass flow rates of liquids and gases in virtually all applications without special calibration. Safety, reliability, quality, and our innovative technologies enables us to provide a broad range of industry-specific products and services — and the expertise to put them to work for you.
Oil & Gas
Food & Beverage
Metals and Mining
Pulp & Paper
Water & Wastewater
Conditions required of installation
To guarantee the accuracy, conditions required when installation should be met, because the mass flow meter is a high precision instrument:
(1) The sensor (primary meter) and the transmitter (secondary meter) do not install in strong magnetic interferential area. Or, measuring signals would be disturbed, and debase the accuracy;
(2) There is must not any other vibrator on line installed the sensor (primary meter);
(3) If install outside of door, PLS pay attention circumstance temperature not to exceed the range of meter, and should consider to build a weatherproof shield to avoid blowing and drenching, for increasing lifetime of flow meter.
(4) The transmitter (secondary meter) of essential safety should mount in safety area or appropriate control room.
1. Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
2. Q: How about the quality control?
A: All products will be tested for 3 times before packed.
3. Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
4. Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our food grade pipe coriolis mass flow meter work perfectly at your end.
7 working days quick delivery. / Suggested Express company: DHL.
