K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output

K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output

  • K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output
  • K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output
  • K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output
  • K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output
K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output
Product Details:
Place of Origin: China (Mainland)
Brand Name: Kacise
Model Number: K-3JSJ-300
Payment & Shipping Terms:
Minimum Order Quantity: 1ps
Price: Negotiable
Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
Delivery Time: 5-8 work day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability: 1000 Pieces per Week
Contact Now
Detailed Product Description
Type: K-3JSJ-300 Input Voltage: 12±0.5 VDC
Input Current: ≤12 MA Output Mode: 0.5~4.5V
Range: ±20g Bandwidth: ≤ 10k Hz
Sensitivity: 50±5 MV / G Axial Direction: X Y Z
Temperature: -40℃~+70℃ Storage Temperature: -40℃~+125℃
High Light:

linear acceleration sensor

,

accelerometer speed sensor

0.5~4.5V Analog voltage output Wide measuring range High frequency response Triaxial Accelerometer Sensor Module



1. Product Description



An accelerometer is a device designed to measure acceleration, commonly found in automobiles, ships, aircraft, spacecraft, or machinery, buildings, and structures experiencing vibrations. This instrument boasts features such as analog voltage output, compact dimensions, lightweight design, a broad measuring range, and robust impact resistance, making it suitable for various applications.



Also known as an acceleration sensor, the accelerometer is utilized to gauge the force generated by accelerated motion, often represented as a relative ratio to the acceleration of gravity (G). Accelerometers incorporating cutting-edge iMEMS technology are characterized by high stability, small size, low weight, and instantaneous startup. They find applications in vibration measurement and determining static acclivitous angles.

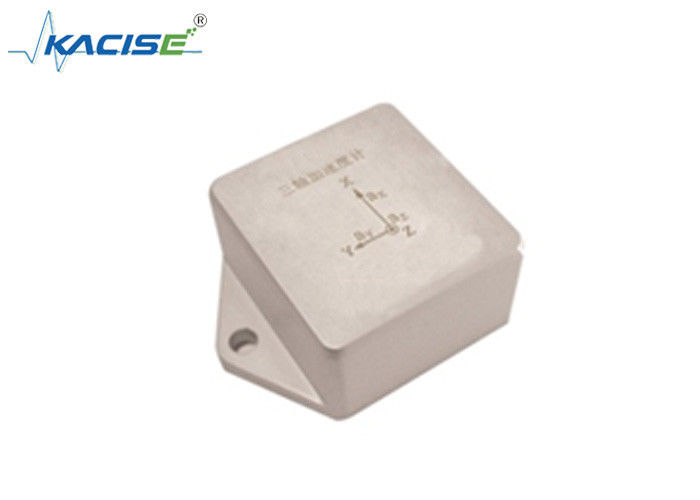

K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output 0









2. Parameter



Type K-3JSJ-300
Electric character
Input voltage 12±0.5 VDC
Input current ≤12 mA
Output Mode 0.5~4.5V
Performance index
Axial direction X Y Z
Range ±20g
Bandwidth ≤ 10k Hz



Sensitivity

50±5 mV / g
Resolution (°/s) ≤ 0.01 g
Nonlinear (%FS) ≤ 0.5% Fs
Bias 1.5±0.1 V
Start-up time (ms) ≤1 s
Environmental characteristics
Temperature (°C) -40℃~+70℃
Storage Temperature -40℃~+125℃
Resistant to shock 4000g
Physical Characteristics
Weight (g) 40g

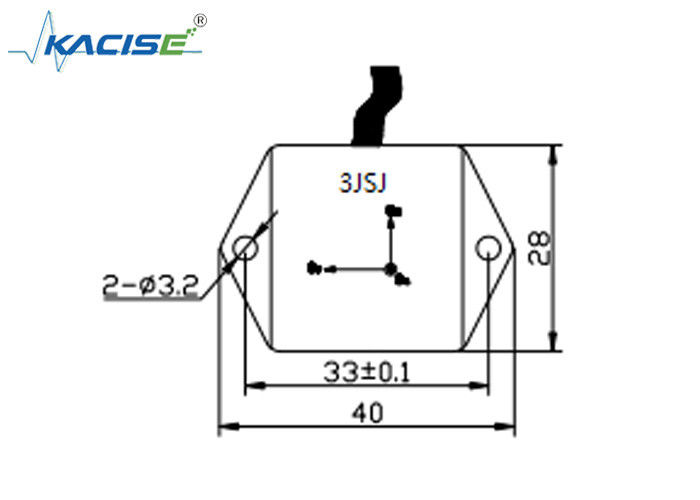

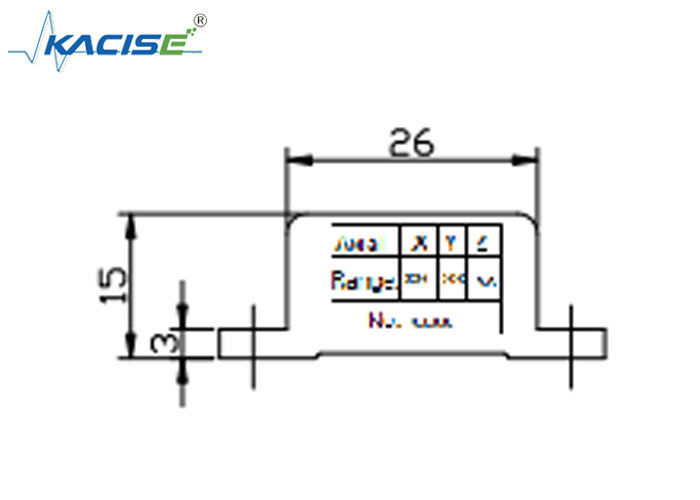

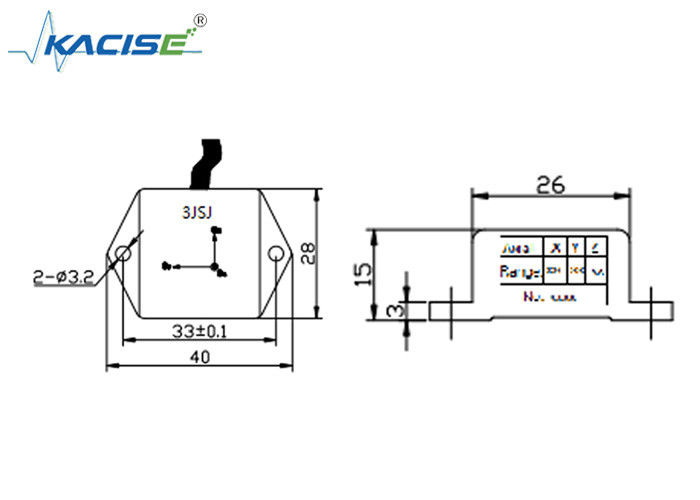

Dimensions 40×26×15 mm
K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output 1K-3JSJ-300 Small Size Triaxial Accelerometer Sensor Module With High Frequency 0.5~4.5V Analog voltage output 2





3. Feature



  • Analog voltage output

  • Wide measuring range

  • High frequency response, up to 22 KHz

  • Small size, light weight,

  • impact resistance, vibration performance



4. Application Field







  • Power conductor breeze vibration monitoring

  • Mechanical vibration monitoring equipment
