| Place of Origin: | China (Mainland) |
| Brand Name: | Kacise |
| Certification: | ISO9001:2008 |
| Model Number: | JGX |
| Minimum Order Quantity: | 1ps |
|---|---|
| Price: | Negotiable |
| Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
| Delivery Time: | 5-8 work day |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal |
| Supply Ability: | 10000 Pieces per Week |
| Type:: | Shock Absorber | Material:: | Aluminum And Stainless Steela |
|---|---|---|---|
| Brand: | Kacise | Feature:: | Durable |
| Load Range: | 5，6KG | Natural Frequency: | 7Hz-15Hz |
| Certificate:: | ISO9001:2008 | Relative Product:: | Backdraft Damper |
| Usage:: | Industrial Machinery | Application:: | Marine And Industrial Engine |
| High Light: | wire rope shock absorber,vibration isolation dampers |
||

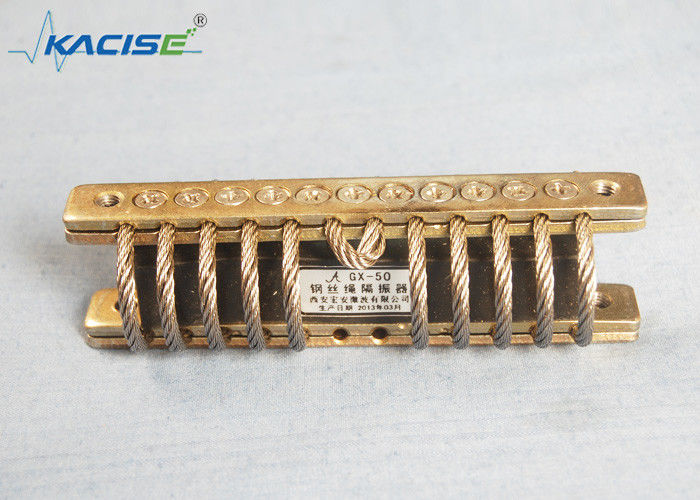

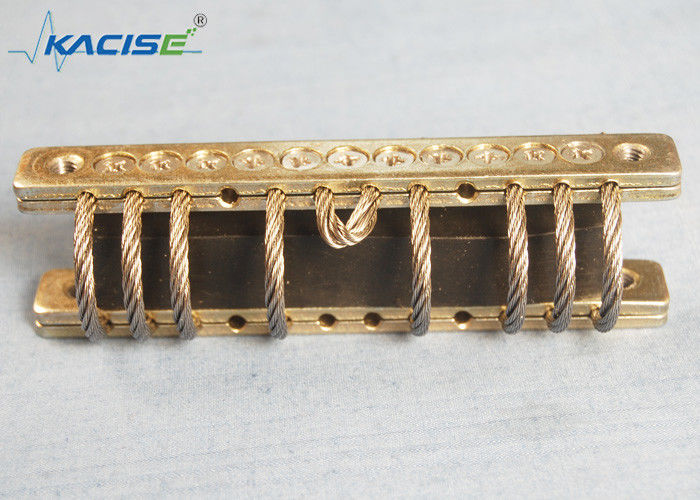

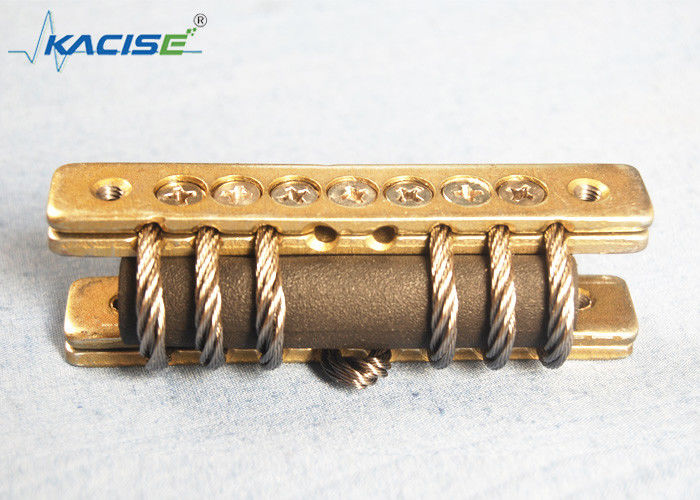

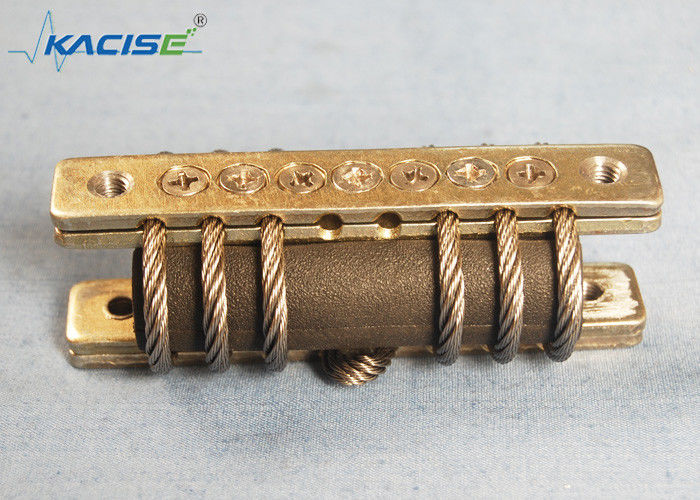

5 6KG Dynamic load Military-grade Pressure plate Symmetrical and Antisymmetric Wire Rope Isolator
1.Product Description
The wire rope vibration isolator relies on wire rope as an elastic body, utilizing the friction between wire rope strands to achieve vibration isolation and buffering. Its performance is highly stable, with common designs including spiral, arch, and ring configurations. Crafted from high-quality wire rope, each element possesses unique response characteristics determined by factors such as diameter, number of strands, length, twist, and quantity.
Damping in these isolators is achieved through friction and deformation between steel wire ropes, allowing for maximum impact attenuation in a minimal space. The steel wire rope isolator excels in shock absorption performance, exhibiting good durability against fatigue and the ability to withstand numerous vibrations. These isolators find extensive use in isolating vibration and shock in instruments, meters, control boxes, and similar equipment, catering to a broad spectrum of physical and engineering requirements.
2.Type
3.Feature
● High temperature resistance, strong corrosion resistance, easy to install and install
● Universal damping,strong impact resistance,durable
● Good earthquake resistance
● Mounting holes can be customized
4.Application Field
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Shipboard | Electronics, Computers, Machinery |
Explosive blast, Inherent vibration, Storms |
Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
