GR3 Handmade Exquisite Aerial Photography Vibration Isolator  Helicopter Drone Camera Vibration Isolator



1. Product Description



Industrial Machinery Compact Wire Rope Isolators Single Point Installation 0

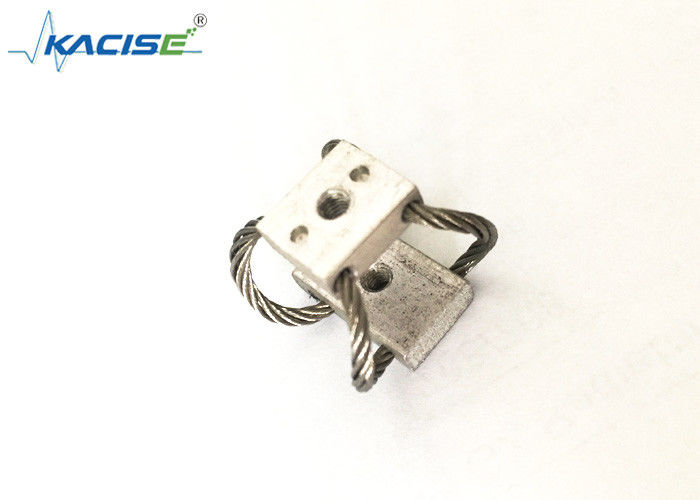

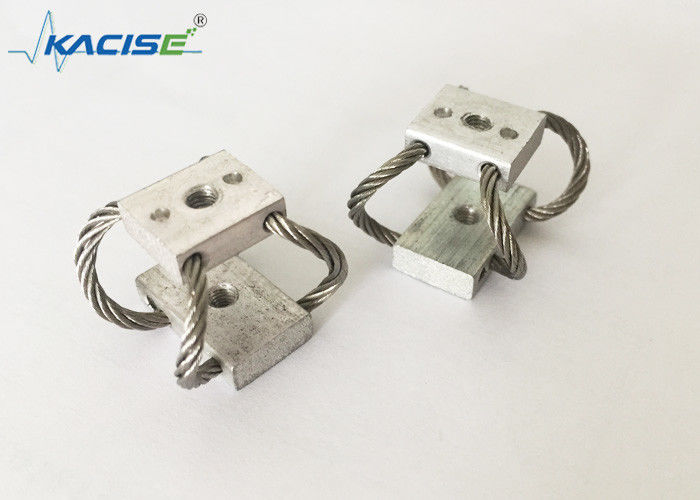

GX Compact Wire Rope Isolators feature an easy, single-point installation, which allows them to be installed in virtually any application. Their small size also permits the isolation of individual system components, makingthem ideal for use in sensitive equipment and electronics. Just as with our standard GX Wire Rope Isolators, GX Compact Wire Rope Isolators feature a patented, all-metal design and components that ensure maximum reliability, regardless of temperature or substrate requirement, and that can help meet MILSPECS similar to those of our Wire Rope Isolator series. Please refer to our “Compact Wire Rope Isolator Sizing Information”.



Industrial Machinery Compact Wire Rope Isolators Single Point Installation 1



2.Parameters



Dimension Parameter Table

Model Height ±1.5(mm) Width (mm) Weight (kg) MountingOptions Thru Hole(mm) Thread (mm) C’sink
GR3-100 19 22 0.09 A,B,C,D,E,S φ3.3 M3x0.5 90
GR3-200 23 24 0.1
GR3-300 27 27 0.11
GR3-400 33 30 0.12





Table 1 GR3 Series Technical Parameters

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR3-100 30 7.1 24 12
GR3-200 22 10.4 12 6.1
GR3-300 18 14.2 8.4 3.5
GR3-400 11 19.3 5.8 1.9



Table 2 GR3 45°Compression/Roll Load

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR3-100 12 9.4 14 5.3
GR3-200 10 13.2 8.8 3.2
GR3-300 6.7 17.3 5.8 1.8
GR3-400 4.4 22.9 3.5 0.9



Table 3 GR3 Shear/Roll Load

Model Max Static Load(N) Max Deflection(mm) Kv (Vibration)(KN/m) Ka(Shock)(KN/m)
GR3-100 12 8.4 6.1 6.1
GR3-200 8.5 11.9 3.5 3.5
GR3-300 6.2 15.5 1.8 1.8
GR3-400 4.4 20.6 1.1 1.1



3.Feature



● Be designed as the same production of France
● Feature with less volume and weight
● With the characters of three dimensional variable stiffness and friction
● Widely be used on the small devices



4.Application Field

Applications Typical Equipment Protection From Operational Advantages
Shipboard Electronics, Computers,
Machinery
Explosive blast,
Inherent vibration, Storms
Long life, Maintenance-free,
Temperature extremes,
Corrosion resistance,
All axes protection
Rough Terrain Vehicles Instrumentation, Generators,
Electronics
Rough terrain,
Poor road conditions,
Collision
Long life, Maintenance-free,
Temperature extremes, Ozone,
Radioactivity, UV Radiation
Aircraft Electronics, Computers High-G maneuvering,
Hard landings, Turbulent air
Temperature and altitude extremes, Lightweight
Shipping Containers Optics, Instruments, Missiles, Electronics

Transit, Handling drop,

Loading/Unloading

Long life, Maintenance-free,

Exposure to moisture, Repeated use

Industrial Equipment



Centrifuge, Dryers, Pumps

Unbalanced dynamic loads,

Fluid hammer, Inherent vibration, Foundation weakness

Long life, Maintenance-free,

Corrosive environments

Ordnance Equipment

Missile launchers, Tank

artillery, Computer controls, Electronics

Rough terrain, Railroad humping, Transit Maintenance-free, Temperature extremes, Nearby blast
Medical Equipment

Mechanical equipment

necessary for patient care

Vibration from moving parts, Mobile carts-Transport shock Maintenance-free, No out gassing, Can be sterilized
Chimneys

Chimneys, Scrubbers,

Measuring devices

Wind causing resonant

frequencies, Stack gas causing turbulence near scrubber, etc.

Maintenance-free, Temperature extremes, Corrosive environments
