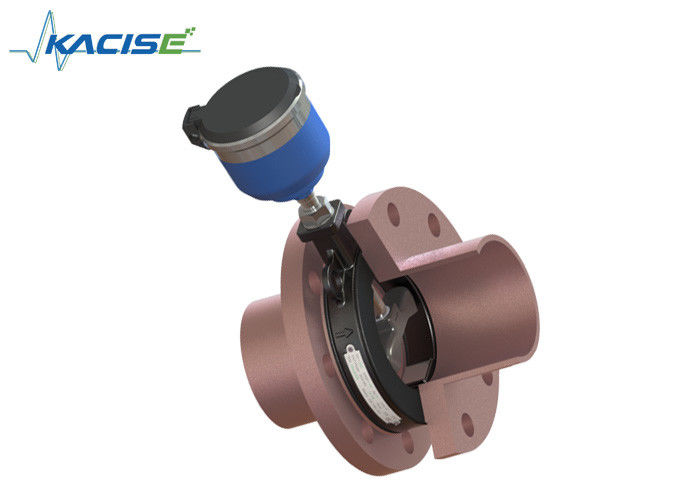

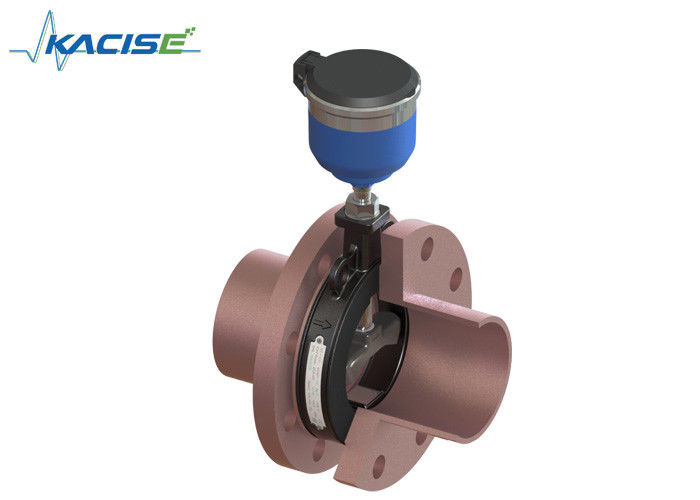

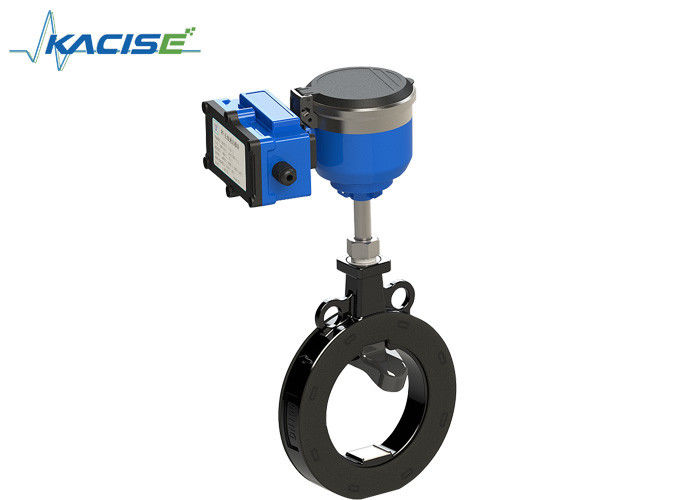

1.6MPa Pressure Infrared IP68 Ultrasonic Water Meter for Irrigation with Battery Power

KUW3000-A series Insertion ultrasonic water meter is a new-style water meter specifically designed for agricultural irrigation,garden management and water resource supervision.

Advantage of this water meter include low cost, high accuracy, low power consumption,stability and reliability.1 inch thickness of the meter helps to save the installation space,and all parts achieve to IP68 enable the water meter work in any severe environment.Due to the unique design structure,there will be no pressure loss and different water medium will have no influence on measurement. This ultrasonic water meter will be a major breakthrough for water measurement in agricultural irrigation.

• Protection Level IP68

  Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.

  Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water.

• Built-in Volume Controller,Built -in Time Accumulato

  Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.

  Time-sharing flow accumulation within the set period of time,to achieve gradient rate.

• Untrasound Measurement No rotation, No moving Parts

  Ensure Long-term high measuring accuracy

  Apply to varieties of water quality,including the water contain gravel and weeds.

• 58*22mm LCD

  Display the instantaneous flow , accumulative flow,time and various kinds of working status

• Support Bi-directional Flow Measurement

  Can measure instantaneous flow and accumulative flow under the forward and backward direction separately

• Various of Units Selected

  Accumulative flow:M3,ft3,GAL,L

  Instantaneous flow: M3/H, GPM, L/m

• Smart Touch Key

  Easy for operation with finger

• Infrared Communication interface

  Support CJ-188 communication, support the M-BUS and MODBUS communication and support upgrade software

KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
