Place of Origin:
China
Brand Name:
KACISE
Model Number:
KUW3000-A
RS485 / USART / infrared Battery Powered Irrigation Ultrasonic Water Meter
Description

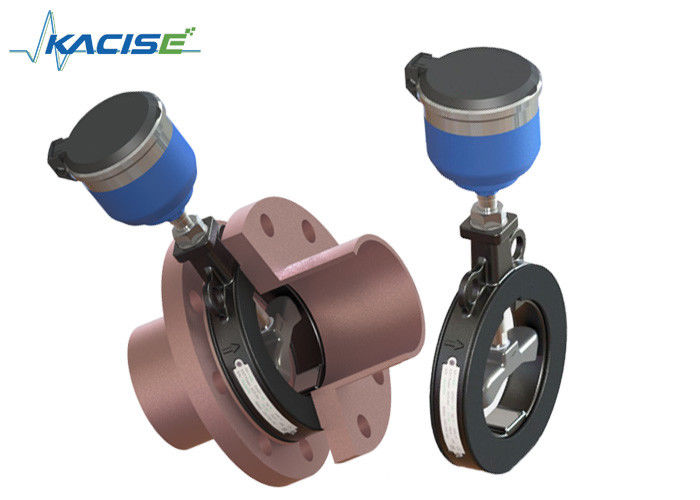

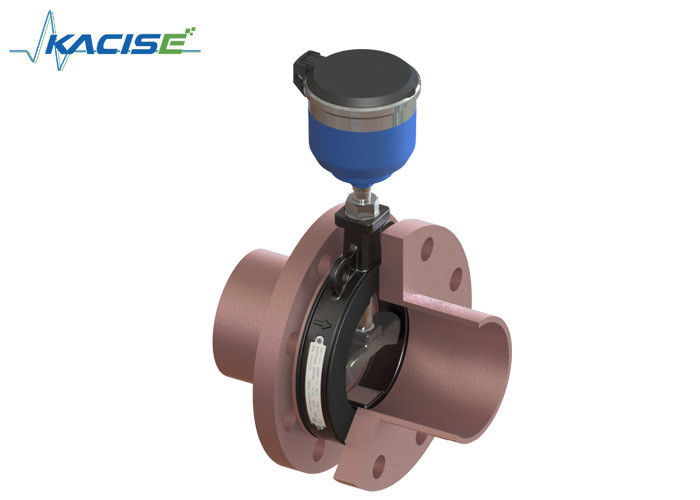

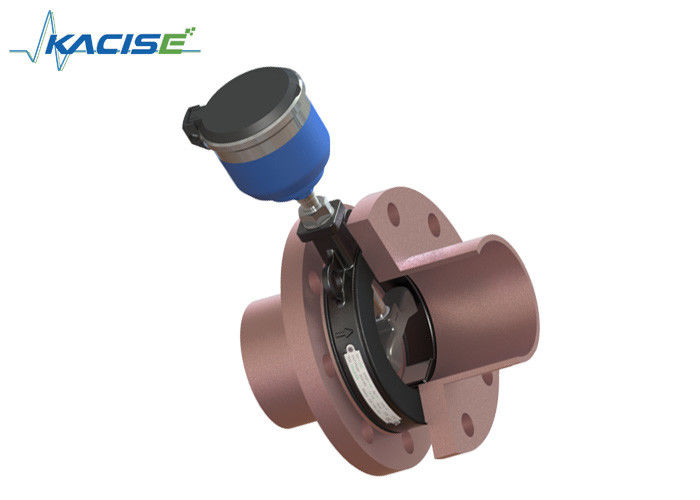

KUW3000-A series Insertion ultrasonic water meter is a new-style water meter specifically designed for agricultural irrigation,garden management and water resource supervision.
Advantage of this water meter include low cost, high accuracy, low power consumption,stability and reliability.1 inch thickness of the meter helps to save the installation space,and all parts achieve to IP68 enable the water meter work in any severe environment.Due to the unique design structure,there will be no pressure loss and different water medium will have no influence on measurement. This ultrasonic water meter will be a major breakthrough for water measurement in agricultural irrigation.
Features
1.Protection Level IP68
Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.
Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water.
2.Built-in Volume Controller,Built -in Time Accumulato
Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.
Time-sharing flow accumulation within the set period of time,to achieve gradient rate.
3.Untrasound Measurement No rotation, No moving Parts
Ensure Long-term high measuring accuracy
Apply to varieties of water quality,including the water contain gravel and weeds.
Display and Operation
58*22mm LCD
Display the instantaneous flow , accumulative flow,time and various kinds of working status
Support Bi-directional Flow Measurement
Can measure instantaneous flow and accumulative flow under the forward and backward direction separately
Various of Units Selected
Accumulative flow:M3,ft3,GAL,L
Instantaneous flow: M3/H, GPM, L/m
Smart Touch Key
Easy for operation with finger
Infrared Communication interface
Support CJ-188 communication, support the M-BUS and MODBUS communication and support upgrade software
Parameter
Item | Specification |
Standard | ISO4064-2005, GBT778-2007 |
Measurement Liquid |
Water, sewage, seawater(other liquid need to customized) liquid should be full of pipeline |
Medium Temperature | 0.1~30 ℃ |
Working Environment | Temperature: -10~45 ℃; Humidity ≤100%(RH) |
Working Pressure | 1.6MPa(2.5MPa optional) |
The sensitivity of upstream | U3 |
THe sensitivity of downstream | D0 |
Climatic and mechanical | C Class |
Electromagnetic compatibility class | E2 Class |
Communication Interface | RS485/USART/Infrared |
Output Signal | 2 way OCT pulse output/TTL pulse output/One way 4~20mA output |
Power supply | Built-in Lithium battery(3.6,19AhV)/DC8~36V power supply |
Protection Class | IP68, can work 2 meters under water |
Digital Display |
Multi line 9 digital accumulative flow, 4 digital display for instantaneous flow, varies of state prompt and units. |
Data Storage | EEPROM/FLASH, automatically record the accumulative flow of last 512 days |
Measurement cycle | Measuring: 1 times/second; Verification: 4 times/second |
Power Consumption | ≤2.7AH/year, 6 years battery life |
Flow Range
Nominal Diameter (mm) | R | Flow(m³/h) | ||||
Starting Flowrate | Minimum Flowrate Q1 | TransitionalFlowrate Q2 | PermanentFlowrate Q3 | Overload Flowrate Q4 | ||
DN80 | 40 | 0.625 | 2.500 | 4.000 | 100.000 | 125.000 |
DN100 | 40 | 1.000 | 4.000 | 6.400 | 160.000 | 200.000 |
WorkShop
Products Pictures
Packing & Delivery
KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
