| Place of Origin: | China |
| Brand Name: | KACISE |
| Model Number: | KUW3000-A |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton / Wooden Box |
| Delivery Time: | 5~8 working days |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000pcs |
| DN(mm）: | 80~100 | Pressure Loss: | None |
|---|---|---|---|
| Pressure: | 1.6MPa | Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminmum, Glass Steel, Etc. Liner Is Allowed. |
| Communication Interface: | RS485/USART/infrared | Type Of Liquid: | Water, Sea Water, Sewage, Other Liquid Need To Be Customized. |
| High Light: | ultrasonic btu meter,m bus water meter |
||
Radio Frequency Remote Reading GPRS Ultrasonic Water Flow Meter
Description
KUW3000-A ultrasonic water meter is a series of patent product designed and developed by Xi'an Kacise Optronics Co., Ltd. according to ISO4064-1:2005/ GBT778-2007/ JJG162-2009 standard. The advantages include very low power consumption, stability and reliability. All parts of the meter achieve to IP68, enable the meter work in any severe ennironment.
Features
1. Built-in Volume Controller,Built -in Time Accumulato
Automatically start the controller at the set time,achieve to supply water automatically,regularly and quantitatively.
Time-sharing flow accumulation within the set period of time,to achieve gradient rate.
2. Protection Level IP68
Whole machine waterproof:whole machine sealed completely,reach IP68 protection level.
Parts waterproof: each part reach to IP68 separately,esnsure long term work even if the meter get into water.
3. Untrasound Measurement No rotation, No moving Parts
Ensure Long-term high measuring accuracy
Apply to varieties of water quality,including the water contain gravel and weeds.
Display and Operation
58*22mm LCD
Display the instantaneous flow , accumulative flow,time and various kinds of working status
Support Bi-directional Flow Measurement
Can measure instantaneous flow and accumulative flow under the forward and backward direction separately
Various of Units Selected
Accumulative flow:M3,ft3,GAL,L
Instantaneous flow: M3/H, GPM, L/m
Smart Touch Key
Easy for operation with finger
Infrared Communication interface
Support CJ-188 communication, support the M-BUS and MODBUS communication and support upgrade software
Parameter
| Item | Specification |
| Standard | ISO4064-2005, GBT778-2007 |
| Measurement Liquid | Water, sewage, seawater(other liquid need to customized) |
| Medium Temperature | 0.1~30 ℃ |
| Working Environment | Temperature: -10~45 ℃; Humidity ≤100%(RH) |
| Working Pressure | 1.6MPa(2.5MPa optional) |
| The sensitivity of upstream | U3 |
| THe sensitivity of downstream | D0 |
| Climatic and mechanical | C Class |
| Electromagnetic compatibility class | E2 Class |
| Communication Interface | RS485/USART/Infrared |
| Output Signal | 2 way OCT pulse output/TTL pulse output/One way 4~20mA output |
| Power supply | Built-in Lithium battery(3.6,19AhV)/DC8~36V power supply |
| Protection Class | IP68, can work 2 meters under water |
| Digital Display | Multi line 9 digital accumulative flow, |
| Data Storage | EEPROM/FLASH, automatically record the accumulative flow of last 512 days |
| Measurement cycle | Measuring: 1 times/second; Verification: 4 times/second |
| Power Consumption | ≤2.7AH/year, 6 years battery life |
Flow Rang
| Nominal Diameter (mm) | R | Flow(m³/h) | ||||
| Starting Flowrate | Minimum Flowrate Q1 | TransitionalFlowrate Q2 | PermanentFlowrate Q3 | Overload Flowrate Q4 | ||
| DN80 | 40 | 0.625 | 2.500 | 4.000 | 100.000 | 125.000 |
| DN100 | 40 | 1.000 | 4.000 | 6.400 | 160.000 | 200.000 |

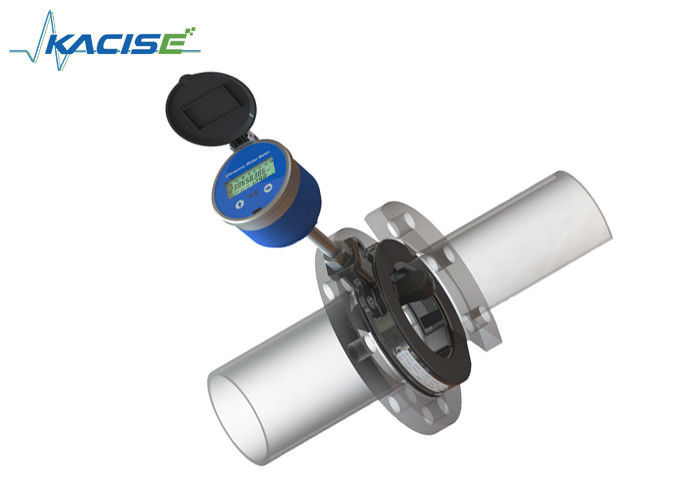

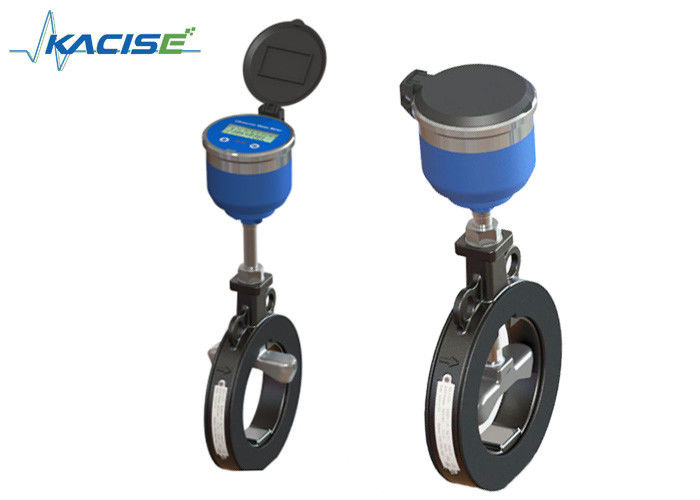

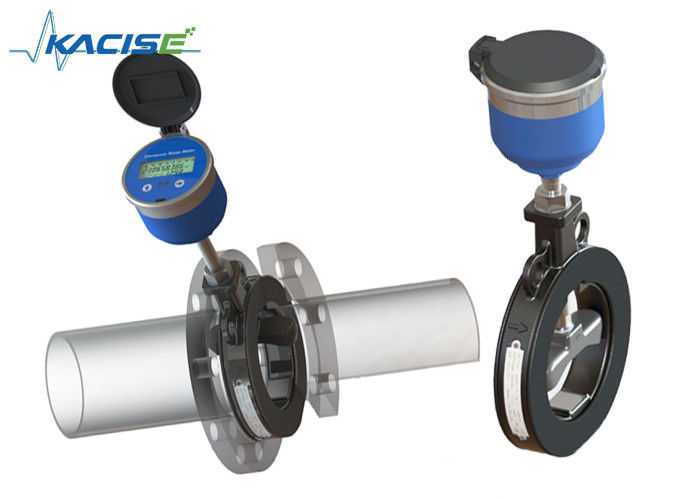

Products Pictures
Packing & Delivery
Advantage
1, Your inquiry will be replied in 24hours.
2, Well-trained and experienced staffs to answer all your enquires in fluent English.
3, OEM&ODM, we can help you to design and your request will be put into product.
4, Distributorship are offered for your unique design and some our current models.
5, Protection of your sales area, ideas of design and all your private information.
6, Discounts are offered based on order quantities.
7, We provide paid repair services for meter damages not arising from manufacturing quality issues or meter damages not within the scope of warranty.
KACISE designs and manufactures a full line of high accurated ultrasonic flow meters, ultrasonic water meters and ultrasonic heat meters. An innovator in ultrasonic flow measurement and control products, Measuring water, oil, chemicals and other fluids. KACISE products are well known for accuracy, long-lasting durability and for providing valuable and timely measurement data.
