Place of Origin: | Shaanxi, China (Mainland) |
Brand Name: | kacise |
Certification: | CE |
Model Number: | GXPS480 |
Minimum Order Quantity: | 1 PIECE |
---|---|
Price: | negotiable |
Packaging Details: | each unit has individual box and all boxes are packed in standard packages or customers requests available |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 2000 Piece/Pieces per Week negotiable |
Pressure Range: | 0~2….200mH2O/ 0–2bar~0~200bar | Operating Temperature: | -40℃~85℃ |
---|---|---|---|
Accuracy: | ±0.5%F.S | Output Signal: | RS485 |
Power Supply: | 10~30Vdc | Pressure Port: | Submersible, Thread, M20×1.5, G1/4, G1/2, R1/2, NPT1/2 |
High Light: | high accuracy pressure sensor,explosion proof pressure transmitter |
Application
Feature
Introduction

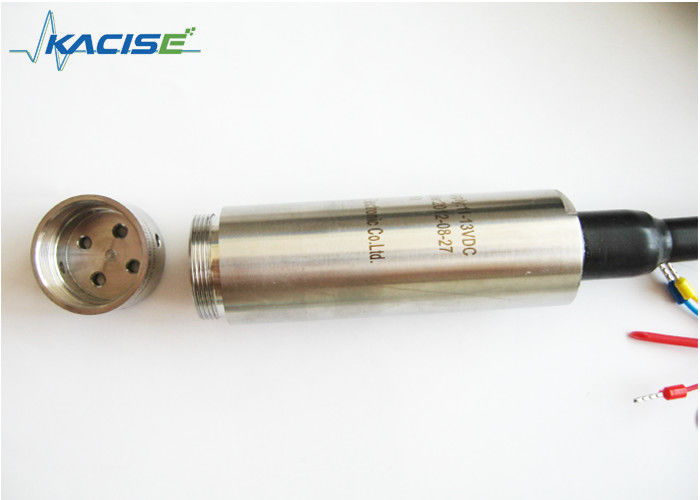

GXPS480 pressure transmitter has high reliability, high stability, with the characteristics of the
digital output. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive
liquids and gases. The series uses 1Cr18Ni9Ti stainless steel structure, RS485 output.
Direct lead way electrical connections | |
Connection definition | Cable color |
RS485+ | White |
RS485- | Blue |
Power | Red |
Power ground | Black |
Shield | Yellow |
Electronic interface and signals definition
Parameter
Spec. | Value | |
Pressure range | 0~2….200mH2O/ 0–2bar~0~200bar | |
Load pressure | 1.5times nominal value pressure (1.5X) | |
Rupture pressure | 3times nominal value pressure (3X) | |
Accuracy | ±0.5%F.S | |
Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | |
Operating temperature | -40℃~85℃ | |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
Output signal | RS485 | |
Power supply | 10~30Vdc | |
Insulation | >100M Ω@50V | |
Electrical connection | water proof cable | |
Pressure port | Submersible, thread, M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |
Pressure type | G, S | Response time: 10ms |
Certificate | Intrinsically safe mode E, CE | |
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 |
