Batching Controller Pulse Output Turbine Flow Meter For Drinking Water Customized 316L Material
Description

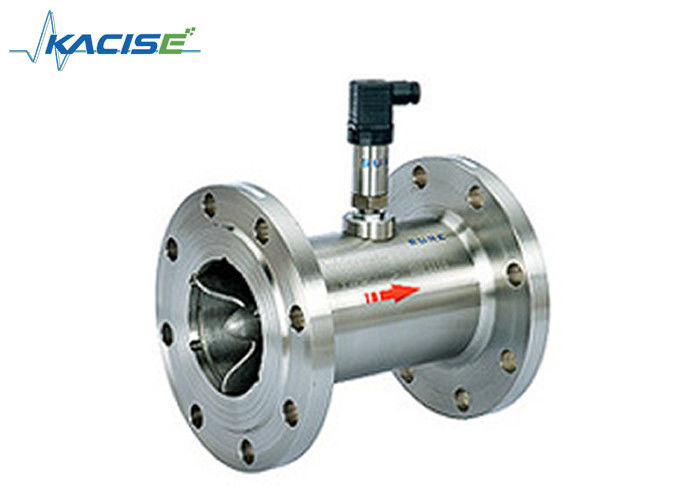

Sanitary type turbine flow metera flow meter that widely applied in industries of pharmaceutical, food, beverage for measurement, batching, control, filling, etc. Rotating part of the flow meter is made of special material that possesses good anti-corrosive and rust proof performance. Structure of the flow meter is special designed and greatly approved accuracy and repeatability of the flow meter. Product also with easy maintenance connection, which is suitable for pharmaceutical and beverage industries.
Features
☆ High accuracy, generally up to ±1%R, ±0.5%R, high accuracy up to 0.2%R
☆Good repeat-ability, short-term repeat-ability up to 0.05% ~ 0.2%, in the trade settlement is the preferred choice of flow meter.
☆ Output of pulse frequency signal, suitable for totalizer and connection with PC; no zero shift and strong interference resist
☆ High frequency signal(3~4KHz) can be obtained, the signal resolution is strong.
☆ Wide range, medium and large diameter up to 1:20, small caliber 1:10.
☆ Compact structure & convenient maintenance
Specifications
| Paremeter | Value | Unit | |
|
Diameter |
Thread | 4, 6, 10, 15, 20, 25, 32, 40 | mm |
| Flange(Clamp) | 15, 20, 25, 32, 40, 50, 65, 80, 100, 125,150, 200 | mm | |
| Accuracy | ±1, ±0.5, ±0.2 (customized) | %R | |
| Range ratio | 1:10, 1:15, 1:20 | ||
| Sensor material | 304, 316(L) stainless steel etc. | ||
|
Working environment |
Medium temp. | -20~120 | °C |
| Ambient temp | -10~55 | °C | |
| Relative humidity | 5%~90% | ||
| Atmospheric pressure | 86~106 | KPa | |
| Signal output |
Sensor: pulse frequency signal, low electrical level≤0.8V, high level≥8V Transmitter: two wire, 4-20 mA DC current signal |
||
| Comm interface | RS485 | ||
|
Power supply
|
Sensor: +12V DC, +24V DC (optional) Transmitter: +24V DC Local indication type: built-in 3V lithium cell or +24VDC external |
|
|
| Signal Transmission Wire | STVPV3×0.3 (3 wire), 2×0.3 (2 wire) |
|
|
| Transmission Distance | No more than 1000 | m | |
| Signal Line Interface |
Basic type: Hausman connector or 3-core wire; Explosion-proof type: M20 × 1.5 (F) |
||
| Explosive-proof grade |
Basic type: non-explosion proof; explosion proof type: ExdIIBT6 |
||
| Protection level | IP65 | ||
Measuring Range & Working Pressure
|
Diameter (mm) |
Standard Range (m3/h) | Extended Range (m3/h) |
Normal Connection & Pressure Rating (MPa) |
Special Pressure Rating (MPa) (Flange Connection) |
| DN4 | 0.04~0.25 | 0.04~0.4 | Thread connection/6.3 | 10, 16, 25 |
| DN6 | 0.1~0.6 | 0.06~0.6 | Thread connection/6.3 | 10, 16, 25 |
| DN10 | 0.2~1.2 | 0.15~1.5 | Thread connection/6.3 | 10, 16, 25 |
| DN15 | 0.6~6 | 0.4~8 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN20 | 0.8~8 | 0.45~9 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN25 | 1~10 | 0.5~10 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN32 | 1.5~15 | 0.8~15 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN40 | 2~20 | 1~20 | Thread connection/6.3 | 4.0, 6.3, 10, 16, 25 |
| Flange connection/2.5 | ||||
| DN50 | 4~40 | 2~40 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN65 | 7~70 | 4~70 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN80 | 10~100 | 5~100 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN100 | 20~200 | 10~200 | Flange connection/2.5 | 4.0, 6.3, 10, 16, 25 |
| DN125 | 25~250 | 13~250 | Flange connection/1.6 | 2.5, 4.0, 6.3, 10, 16 |
| DN150 | 30~300 | 15~300 | Flange connection/1.6 | 2.5, 4.0, 6.3, 10, 16 |
| DN200 | 80~800 | 40~800 | Flange connection/1.6 | 2.5, 4.0, 6.3, 10, 16 |
Ordering information
| Model | Remarks | |||||||
| KTF | ||||||||
| DN | 4 | 4 mm | ||||||
| 6 | 6 mm | |||||||
| 10 | 10 mm | |||||||
| 15 | 15 mm | |||||||
| 20 |
|
20 mm | ||||||
| 25 | 25 mm | |||||||
| 32 | 32 mm | |||||||
| 40 | 40 mm | |||||||
| 50 | 50 mm | |||||||
| 65 | 65 mm | |||||||
| 80 | 80 mm | |||||||
| 100 | 100 mm | |||||||
| 125 | 125 mm | |||||||
| 150 | 150 mm | |||||||
| 200 | 200 mm | |||||||
| Type | N | Sensor type: +12V or 24V power, output 3 wire system pulse signal | ||||||
| A | Transmitter type: +24V power, output 2 wire 4-20 mA | |||||||
| B | Smart type: lithium cell, local indicator, without signal output | |||||||
| C | Smart type: +24V power, local indicator, 2 wire 4-20mA/pulse output | |||||||
| C1 | Smart type: +24V power, local indicator, RS485 communication | |||||||
| protocol | ||||||||
| C2 | Smart type: +24V power, local indicator, HART protocol | |||||||
| Accuracy | 05 |
|
0.5 | |||||
| 10 | 1.0 | |||||||
| 02 | 0.2 (Special order, long delivery time) | |||||||
| Range | W | Extended Measuring Range | ||||||
| S | Standard Measuring Range | |||||||
| Body Material | S | 304 SS | ||||||
| L | 316 (L) SS | |||||||
| Explosion Proof | N | Non Explosion proof | ||||||
| E | Explosion proof, ExdIIBT6 | |||||||
| Pressure Rating | N | Normal | ||||||
| H (x) |
High Pressure |
|||||||
Manufacture and stocks
Packaging
Application
