Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
kacise
Certification:
ce
Model Number:
GXPS460
Application
Feature
Introduction

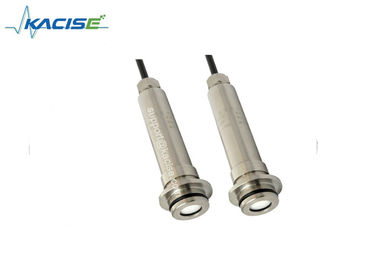

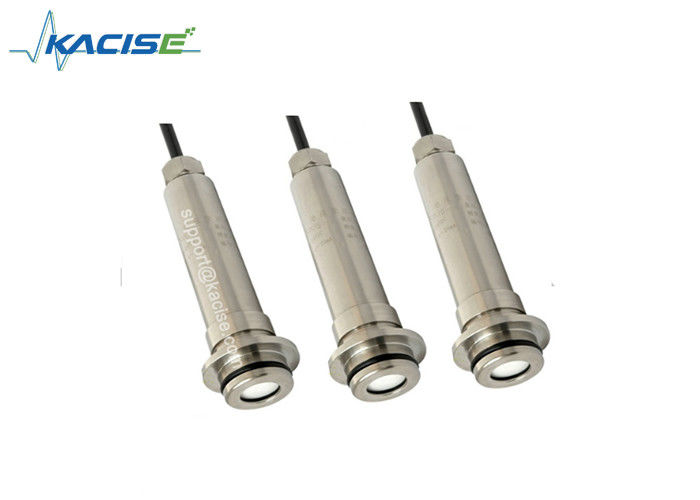

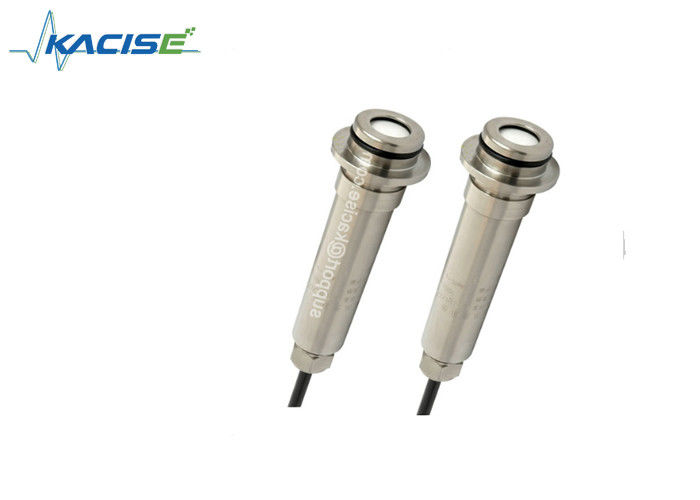

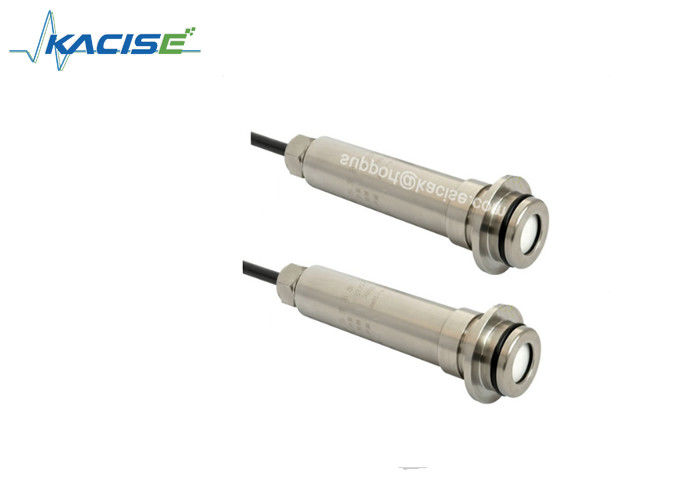

GXPS460 series level transmitter is a highly reliable, high stability, high accuracy, the whole temperature digitized compensation level transmitter is designed for all kinds of sea water measurement design.
Oil-filled core and shell of the products used in all the titanium alloy structure, long-term safe use in -20 ℃ ~ 70 ℃ seawater, the latest digitized compensation to ensure the accuracy of the temperature region does not decrease or loss of, computer interface to its zero and full scale calibration can also be externally programmed adjustment of zero and span.
Abrasion, oil, acid and alkali resistant, high-strength special breathable cable can be used depending on site configuration.
Electronic interface and signals definition
Parameter
| Pressure range: 0~1….100mH2O/–1bar~0~100bar/ 0~980Kpa | |
| Over pressure safe: 2times span of nominal value | Secondary Containment: 4times span of nominal value |
| Operating temperature: –20℃~70℃ | Compensated temperature: –20℃~70℃ |
| Accuracy: ±0.5%F.S | Stability: 0.25%F.S/year |
| Output signal: 4~20mA | Power supply: 10~36Vdc |
| Load voltage: (U-10)/0.02(Ω) | Minimum isolation between case and terminations: >100M Ω@50V |
| Medium: all kinds of sea water | Protection: IP68 |
| Pressure type: G, A | Certificate: ATEX |
| EMI/EMC: EN50081-1/-2; EN50082-2 | |
Xi'an Kacise is qualified with ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof certificates, etc. which ensure that our products comply with international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. Based on experienced technical and management personnel, through efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensors have already been exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regard “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
