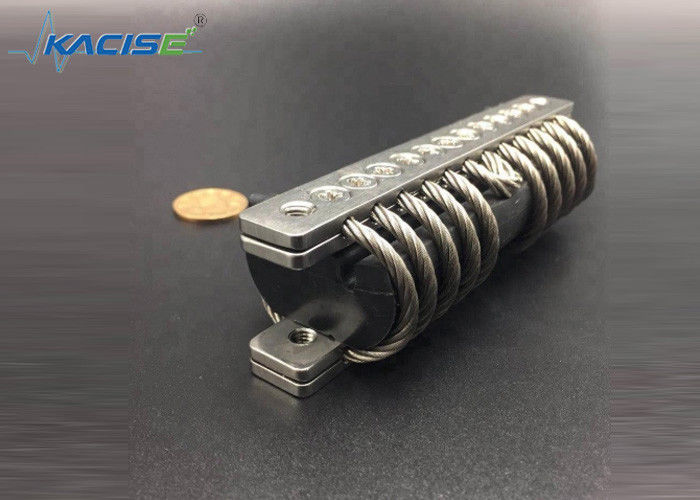

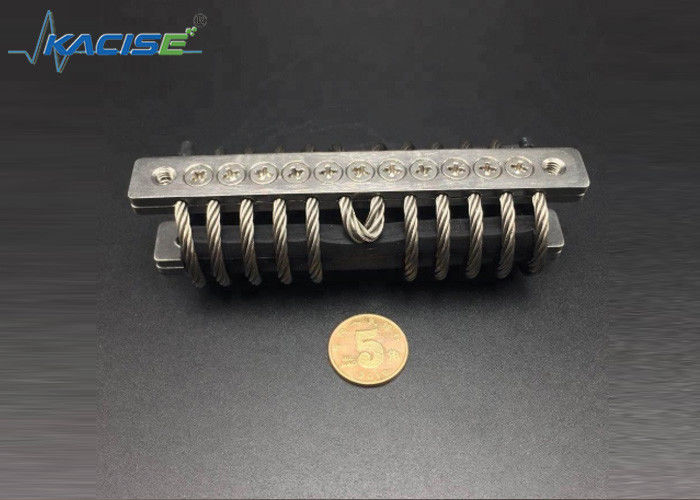

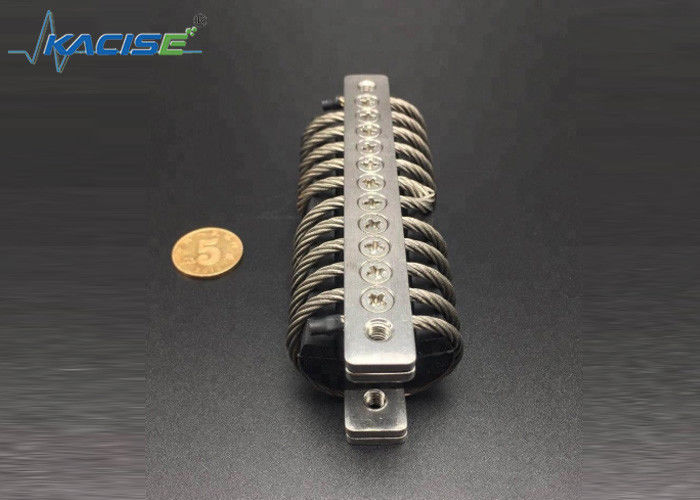

Console Military Rail Electronic Cabinet Armored Car 100G Shock Vibration Insulation GX-50AN Wire Rope Isolator
1. Product Description
The wire rope vibration isolator relies on the elasticity of wire ropes, utilizing friction between strands to achieve effective vibration isolation and buffering. Known for its high stability, this isolator comes in common designs such as spiral, arch, and ring configurations. Crafted from high-quality wire rope, each isolator element possesses distinct response characteristics influenced by factors like diameter, number of strands, length, twist, and quantity.
Damping in these isolators is achieved through the friction and deformation between steel wire ropes, enabling them to provide maximum impact attenuation within a compact space. The steel wire rope isolator excels in shock absorption performance, demonstrating robust durability against fatigue and the capability to endure repeated vibrations. Widely utilized for isolating vibrations and shocks in instruments, meters, control boxes, and similar equipment, it caters to a diverse range of physical and engineering requirements.
The GX series vibration isolator, developed post the GJB-150 launch, introduces a new product with outstanding impact resistance performance in the p z direction. With the ability to effectively handle impacts of up to 100 g, this product finds primary applications in vehicles, infantry vehicles, field exploration, and mining equipment. Its versatility makes it a reliable choice for demanding scenarios where exceptional impact resistance is paramount.
2. Details
Schematic Diagram
Size Chart
Technical Parameter
Nominal dynamic loads
100 :-- 100N
200 :-- 200N
250 :-- 250N
300 :-- 300N
400 :-- 400N
500 :-- 500N
600 :-- 600N
4.Model Number Ordering Code
Splint Model
Empty: The default of the carbon steel material
C1A:The surface of galvanized white
C2B:The surface of galvanized blue and white
C2C:The surface of galvanized color
C2D:The surface of galvanized army green
C2E:The surface of galvanized gold
A:304 stainless steel surface passivation
B:316 stainless steel surface passivation
L:Grey anodized 6061 - T6 aluminum alloy
P:6061 - T6 aluminum alloy surface hard
CXX:Customers customized procurement
5. Feature
6. Application Field
| Applications | Typical Equipment | Protection From | Operational Advantages |
| Shipboard | Electronics, Computers, Machinery |
Explosive blast, Inherent vibration, Storms |
Long life, Maintenance-free, Temperature extremes, Corrosion resistance, All axes protection |
| Rough Terrain Vehicles | Instrumentation, Generators, Electronics |
Rough terrain, Poor road conditions, Collision |
Long life, Maintenance-free, Temperature extremes, Ozone, Radioactivity, UV Radiation |
| Aircraft | Electronics, Computers | High-G maneuvering, Hard landings, Turbulent air |
Temperature and altitude extremes, Lightweight |
| Shipping Containers | Optics, Instruments, Missiles, Electronics |
Transit, Handling drop, Loading/Unloading |
Long life, Maintenance-free, Exposure to moisture, Repeated use |
| Industrial Equipment |
Centrifuge, Dryers, Pumps |
Unbalanced dynamic loads, Fluid hammer, Inherent vibration, Foundation weakness |
Long life, Maintenance-free, Corrosive environments |
| Ordnance Equipment |
Missile launchers, Tank artillery, Computer controls, Electronics |
Rough terrain, Railroad humping, Transit | Maintenance-free, Temperature extremes, Nearby blast |
| Medical Equipment |
Mechanical equipment necessary for patient care |
Vibration from moving parts, Mobile carts-Transport shock | Maintenance-free, No out gassing, Can be sterilized |
| Chimneys |
Chimneys, Scrubbers, Measuring devices |
Wind causing resonant frequencies, Stack gas causing turbulence near scrubber, etc. |
Maintenance-free, Temperature extremes, Corrosive environments |
