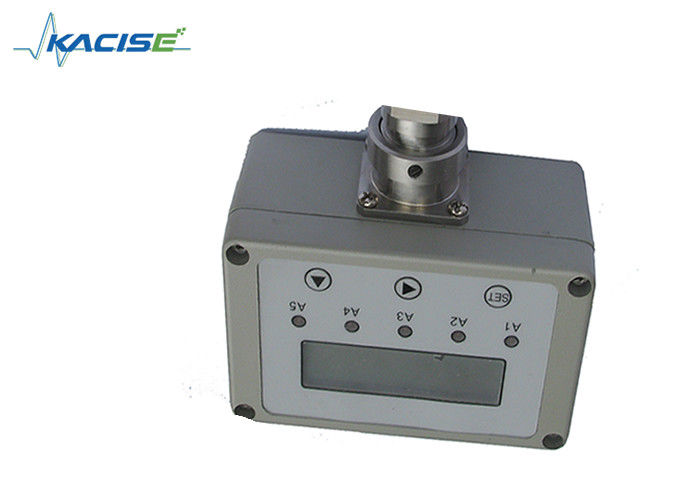

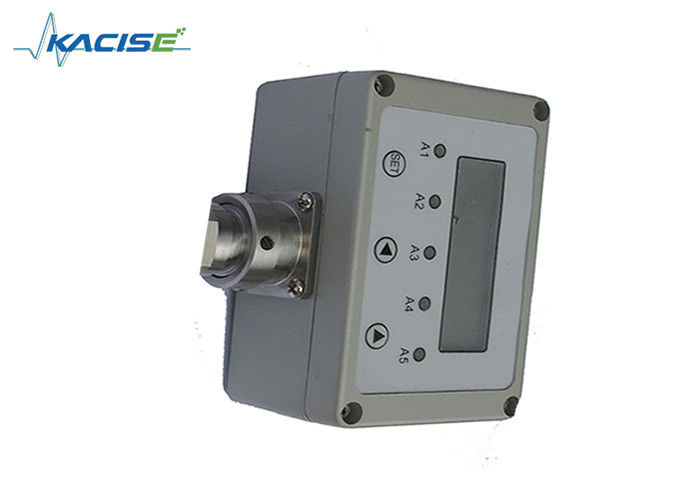

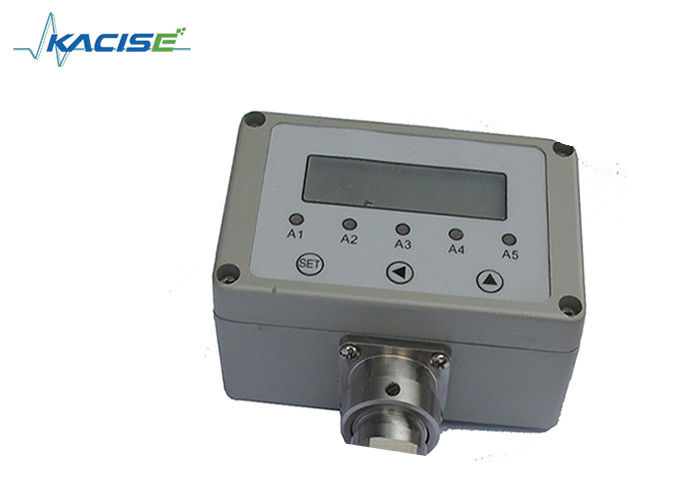

GXPS600A  High  Accuracy of ±0.5%F.S Bidirectional Communication Square Intelligent Pressure Transmitter

Introduction

The GXPS600A series pressure transmitter is an intelligent, high-precision, high reliability, high stability of the product. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.

The digitization of the product is on-site display.
Can be both a digital RS485 and relay output, both are very good consistency.

Two-wire loop output leads non-polarity; the three-wire voltage output for AC and DC.


Feature ​

• Accuracy: ±0.5%F.S
• Diffusion silicon core body
• Various connector and pressure port
• Function modularization, selectable
• Digital and switching value two output form
• Bidirectional communication, can network control


Electronic interface and signals definition


Parameter



Application


• Hydroelectric power
• Floor house water supply
• Hydraulic control
• Petrochemical
• Pressure instruments
• Automatic detection system
• Energy and water treatment
• Wells real time management


Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

• Type: PS600A =universal type
• Range: 0~2…60MPa/0~20bar…600bar= the upper limitation of the range
• Output::RS4+5K=RS485+5way relay
• Power: 10~30Vdc
• Pressure port : M=M20×1.5, G=G1/4, G2=G1/2, N1=NPT1/4, N2=NPT1/2
• Electric connection: J= connecting terminal
• Cable length: XXm=XX meter 1-150m
• Package: Bb, Foam
