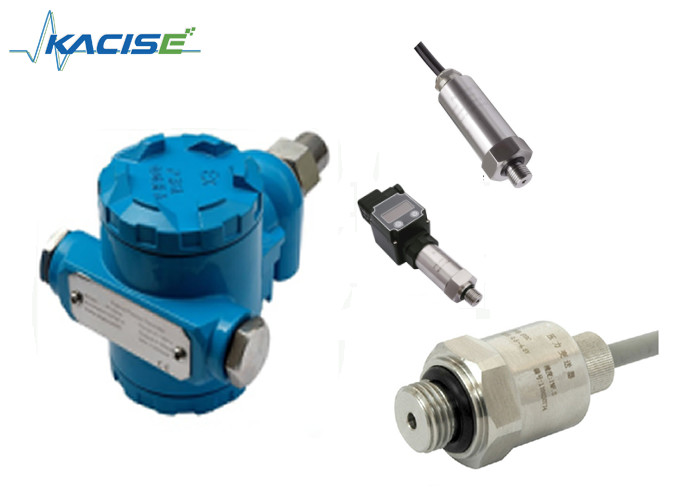

GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas

GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas

    • GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas
    • GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas
    • GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas
    • GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas
  • GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas

    Product Details:

    Place of Origin: China
    Brand Name: Kacise
    Certification: Intrinsically safe, explosion proof, CE certificate
    Model Number: GXPS800

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Piece/pieces
    Price: negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 2000 Piece/Pieces per Week
    Contact Now
    Detailed Product Description
    Pressure Range: -0.1...-0.01MPa......200MPa Accuracy: ±0.1%F.S, ±0.25%F.S, ±0.5%F.S
    Output Signal: 4~20mA 0~20mA 0~10mA 0~5V 0~10V Power Supply: 12~30Vdc 12~30Vdc
    Display Range: -999~1999 Operating Temperature: -50°C~150°C

    GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas Storage Device



    Application



    • Construction machinery
    • Automotive engine
    • High pressure common rail engine
    • High temperature and cold environment
    • Deep well oil pressure measurement
    • Boiler pressure testing
    • Natural gas storage device
    • Hydraulic lubrication



    Feature



    • ±0.1,±0.25,±0.5%F.S
    • Sputtering film core
    • Resistant to high temperature of 150℃
    • Fully welded, no “O”-ring
    • A variety of connector and pressure port
    • Non polarity two wire current output
    • DC and AC output
    • Intrinsically safe, explosion proof, CE certificate
    • RoHS compliant



    Introduction



    GXPS800 series sputtered film pressure transmitter is a high temperature, large range, high precision products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.

    Sputtered film core refers to the use of chemical methods, in the core body on the elastic body by chemical methods, sputtering a layer of insulator, followed sputtering on the use of a set of measurements on the insulator thin metal Wheatstone bridge and temperature compensating resistors, and finally covered with a layer of insulating material above the metal film resistor. When the core body by pressure elastomer deformation occurs in the elastic body, a metal thin film, a sputtering Wheatstone bridge along with the deformation occurs to produce a linear output.



    Electronic interface and signals definition





    GXPS-Series ±0.1Accuracy Resistant to High Temperature of 150℃ Pressure Transmitter with RoHS Compliant for Natural Gas



    Electric connection
    2 wire 3 wire 4 wire Cable Hirschmann Air plug
    Power Power Power+ Red 1 1
    Output Output Output+ Blue 2 2
      Power ground Power - Black 3 3
        Output- Green
    Shielded shielded Shielded Yellow   4

    Parameter



    Spec. Value
    Pressure range -0.1....-0.01MPa......200MPa
    Load pressure 2 times nominal value pressure (1.5X)
    Rupture pressure 4 times nominal value pressure (3X)
    Accuracy ±0.1%F.S, ±0.25%F.S, ±0.5%F.S
    Stability Typical value 0.25%F.S/year, Max. 0.4% F.S
    Operating temperature -50°C~150°C
    Compensation temperature -20°C~120°C
    Medium compatibility All Caustic Medium Compatible with 1Cr18Ni9Ti
    Electrical performance 2 wire system3/4 wire system
    Output signal 4~20mA,0~20mA,0~10mA,0~5V 0~10V
    Power supply 12~30Vdc,0-30VDC,1-5V,0.5-3V
    Load pressure (U-10)/0.02(Ω) > 20kΩ
    Insulation > 100M Ω@50V
    Electric strength 500V@60 second
    Vibration/Impact 10g/5~2000Hz, axes X/Y/Z20g sine 11ms
    Pressure durable 2×106pressure circle @25°C
    Electrical connection Hirsmann , air plugs, fixed cable, water proof cable
    Display range -999~1999
    Pressure port M20×1.5, G1/4, G1/2, R1/2, NPT1/2, NPT1/4
    Pressure type G, S Response time: 10ms
    EMI/EMC EMI: EN50081-1/-2; EMC: EN50082-2
