|Place of Origin:||China|
|Minimum Order Quantity:||1 Piece|
|Packaging Details:||each unit has in dividual box and all boxes are packages or customers requests avai ...|
|Payment Terms:||D/A, L/C, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||200Piece/Pieces per week|
|Working Temperature:||-40°C~80°C||Output Signal:||4-20mA|
|Power Supply:||15VDC||Medium:||Diesel Oil|
high accuracy pressure sensor,
piezoresistive pressure transmitter

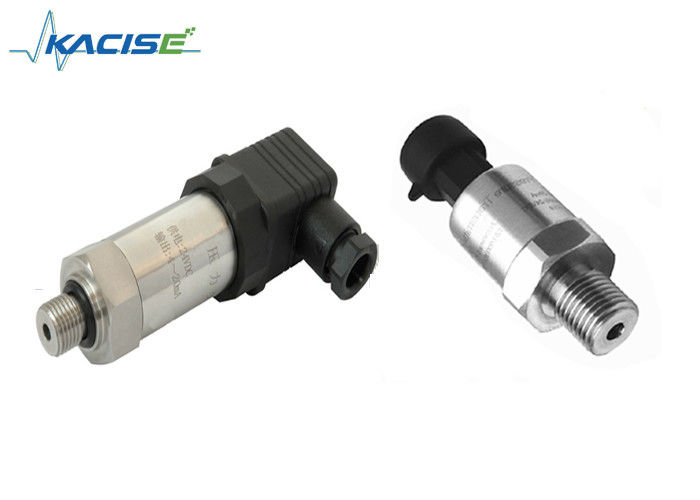

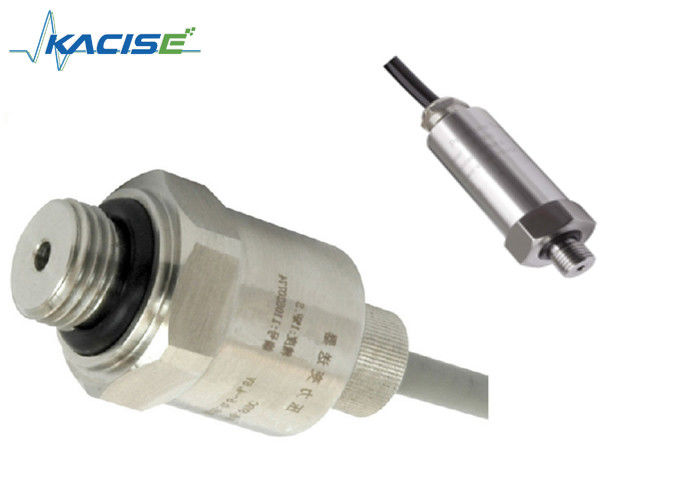

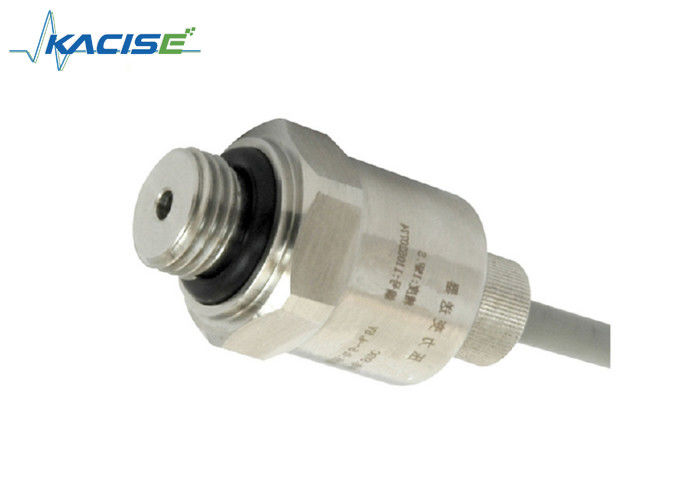

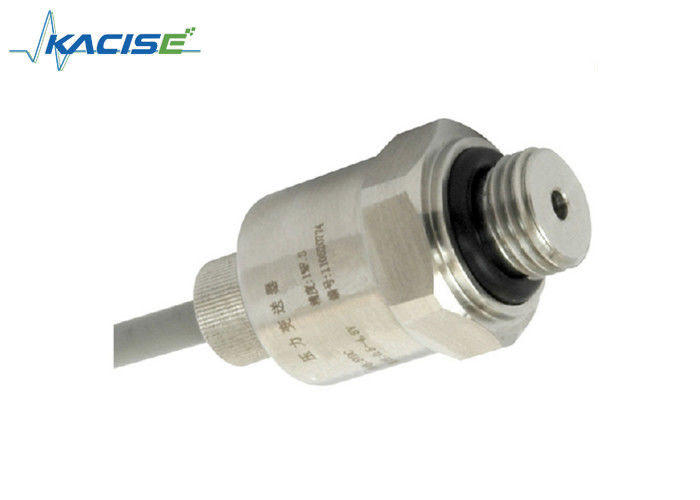

GXPS330 Series pressure transmitter is a highly reliable, high stability, high accuracy, and the whole temperature digital compensation product, which is specifically designed for automotive diesel fuel tank, the tank pressure measurement. The oil-filled core and shell are all stainless steel structure, using the latest digital compensation to ensure the accuracy. The oil-filled core and shell are all stainless steel structure, using the latest digital compensation to ensure the accuracy of the whole temperature region will not be reduced or lost, through a computer interface to calibrate the zero and full scale, can also program-controlled adjustment of the external zero and span.
Electronic interface and signals definition
|Pressure range:||0~20kpa…60Mpa 0~0.2bar…600bar2.9psi…8700psi|
|Overload pressure: 1.5 times nominal pressure(1.5X)||rupture pressure: 3 times nominal pressure(3X)|
|Accuracy: ±0.5%F.S||Stability: 0.25%F.S/Year|
|compensation temperature: -20°C~80°C||Working temperature: -40°C~80°C|
|Output signal: 4-20mA||power supply: 15VDC|
|Insulation: > 20MΩ @100V||Electrical Connections : connection terminal|
|Medium: diesel oil||Protection grade: IP67|
|Pressure type: pressure gauge|
