    Product Details:

    Place of Origin: China (Mainland)
    Brand Name: Kacise
    Model Number: KS 18 series

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiable
    Packaging Details: each unit has individual box and all boxes are packed in standard packages or customers requests available
    Delivery Time: 5-8 work day
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
    Supply Ability: 2000 Pieces per Week
    Contact Now
    Detailed Product Description
    Supply Voltage: 4 ... 30 VDC Impedance:: 10 KOhm ± 20 %
    FS Output (Span): Min. 1.5 / Typ. 2.8 / Max. 5.3 M Offset:: 0 ± 0.2 MV/V
    Body Material:: Al2O3 96 % Type:: Pressure Sensor

    4 ... 30 VDC ceramic water pressure sensor transducer Element





    1. Product Description

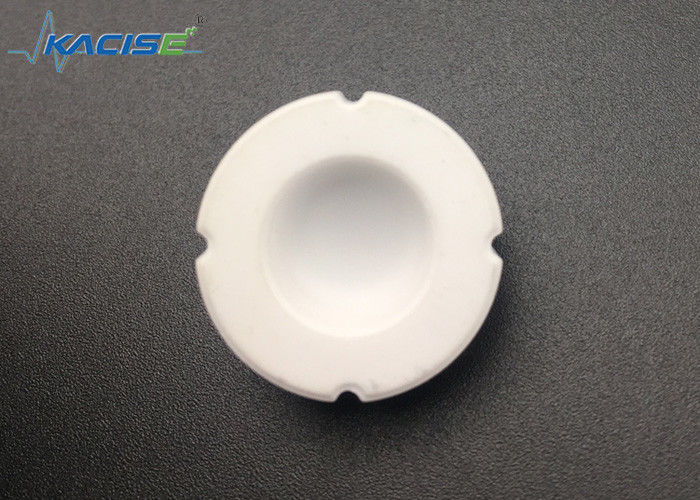

    Kacise High Precision Pressure Sensor Compact Design For Automotive Industry



    Kacise monolithic pressure sensors are manufactured in large series and are in use in a range of applications in machinery production, the automotive industry, and ventilation and climate control equipment. The easy installation and calibration of the sensors simplifies the customer's production processes. The KS18 SERIES features a compact design, high media compatibility and excellent long-term stability.



    2. Details

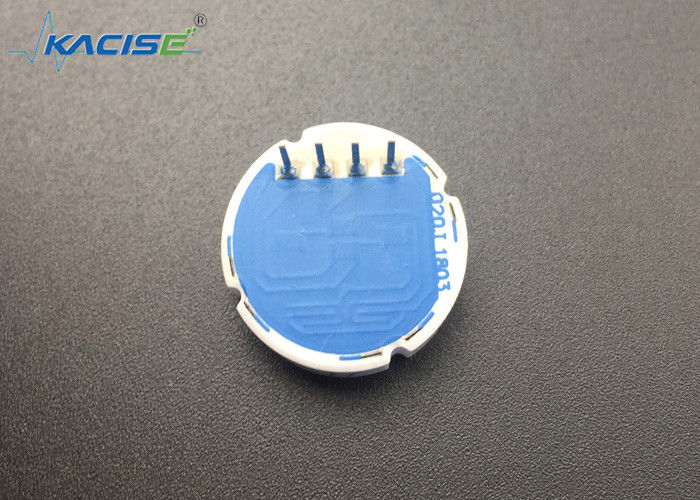

    Kacise High Precision Pressure Sensor Compact Design For Automotive Industry



    Techinical parameters



    PRESSURE RANGE LONG THERM STABILITY* LINEARITY / HYSTERESIS BURST PRESSURE OVER-PRESSURE VACUUM CAPABILITY
    (BAR) (TYP./MAX.) (% FS) ** (BAR) (BAR) *** (BAR)
    2 (1.6 ... 2.5) ± 0.15 ± 0.15 / 0.4 ≥ 5 ≤ 3 −0.6
    5 (4 ... 6) ± 0.15 ± 0.15 / 0.4 ≥1 5 ≤ 7.5 −0.8
    10 ± 0.1 ± 0.15 / 0.4 ≥3 5 ≤ 15 −1
    20 (16 ... 25) ± 0.1 ± 0.15 / 0.4 ≥ 60 ≤ 30 −1
    50 (40 ... 60) ± 0.1 ± 0.15 / 0.4 ≥ 150 ≤ 75 −1
    100 ± 0.1 ± 0.2 / 0.5 ≥ 250 ≤ 150 −1
    200 (160 ... 250) ± 0.1 ± 0.2 / 0.5 ≥ 450 ≤ 300 −1
    400 ± 0.15 ± 0.3 / 0.6 ≥ 700 ≤ 550 −1
    600 ± 0.15 ± 0.3 / 0.6 ≥ 900 ≤ 720 −1



    3. Feature



    ● 1000 hours @ 150 °C | 50 million pressure cycles @ 125 °C, 10 – 90 % FS @ 2.5 Hz | 3 thermal shocks +130 °C /−20 °C 3 K/sec. | 50 thermal cycles +150 °C /−40 °C, 2 K/min.


    ● For indipendent linearity 10 points are measured and compared to an ideal straight line.For all measurements, DUT’s are mounted in kacise standard Housing.


    ● Over-Pressure indicates the maximum (short time < 1 s) operating pressure within no irreversible damage to the printed circuit  are expected.



    3. Typical Application

    1. Pressure instrumentation
    2. Pneumatic and hydraulic equipment
    3. Automobile and air compressor
    4. Biomedical instrument
    5. Refrigeration and HVAC control
    6. Household appliances and consumer electronics
    7. Ships and marine systems
    8. Aircraft and avionics systems
